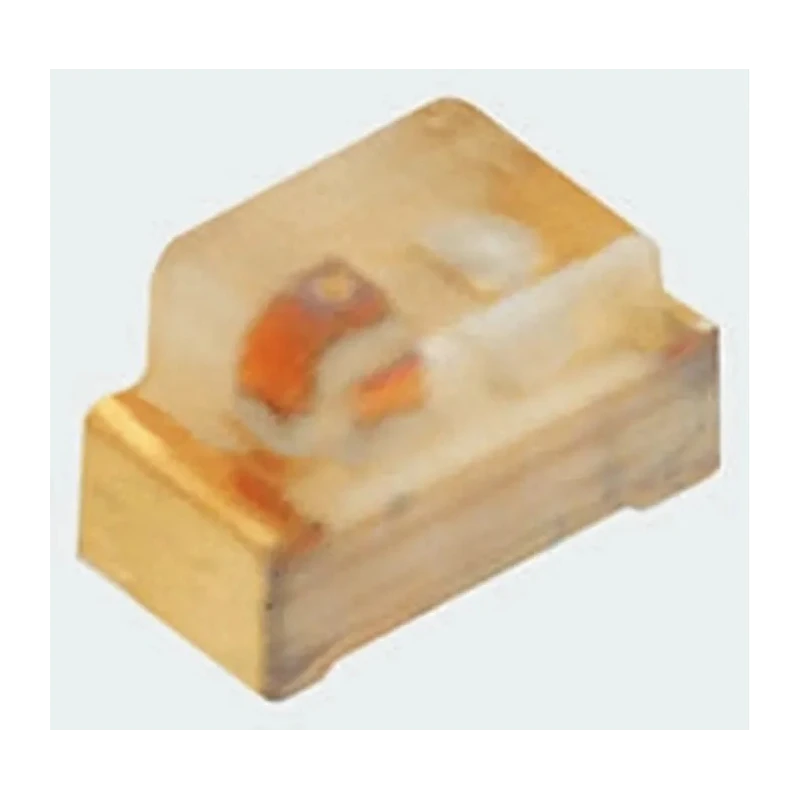

Kingbright Surface Mount Orange LED 2.5 V 75 mW 0603 Package KP-1608SEC
Specifications
| Country of Origin | China |
|---|---|
| Brand | Kingbright |
| Model | KP-1608SEC |
| Packaging | Tape & Reel |
| Mount Type | Surface |
| Series | KP-1608 |
| Maximum forward current | 195mA |
| Viewing angle | 120 ° |
| Package Type | 0603 |
| Standards/Approvals | RoHS |
| LED Colour | Orange |
| Dominant Wavelength | 601nm |
| Forward Voltage | 2.5V |
| Number of Pins | 2 |
| LED Luminosity | 200 mcd |
| Maximum Power Dissipation | 75mW |
| Lens Dimensions | 1.6 x 0.8 mm |
| Lens Shape | Rectangular |
Key Features
- Compact 0603 package dimension of 1.6 x 0.8 mm ideal for dense PCB layouts.
- Maximum forward current rating of 195 mA ensures stable operation.
- Wide viewing angle of 120 degrees provides broad light dispersion.
- High LED luminosity of 200 mcd for visible indicator and display backlighting.
- Rectangular clear lens design with clear lens finish enhances optical performance.
- Surface mount type suitable for automated PCB assembly processes.
- Dominant wavelength at 601 nm producing vibrant orange light emission.
- RoHS compliant ensuring environmentally responsible manufacturing.
Product Description
Kingbright KP-1608SEC is a surface mount LED designed in the industry standard 0603 package, measuring 1.6 x 0.8 mm with a low profile height of 1.1 mm. This orange LED operates at a forward voltage of 2.5 V and supports a maximum forward current of 195 mA with power dissipation up to 75 mW, making it energy efficient and reliable for various electronic applications.
The LED features a wide viewing angle of 120 degrees and a luminous intensity of 200 mcd, offering broad and visible illumination ideal for optical indicators and display backlighting. Its rectangular clear lens with a clear finish ensures optimal light transmission and color purity at a dominant wavelength of 601 nm.
This component is designed for surface mounting, compatible with tape and reel packaging, facilitating automated assembly lines and enhancing production efficiency. The LED has two pins for straightforward electrical connections and complies with RoHS standards for environmental safety.
Kingbright KP-1608SEC LEDs find extensive use in industrial electronics, communications equipment, instrumentation, and general-purpose lighting in laboratory and commercial products. Their small footprint, durability, and brightness make them well-suited for dense PCB layouts and precise indicator applications.
Compact and industry standard 0603 surface mount package. Efficient orange LED technology with bright light output. Wide 120° viewing angle for versatile lighting applications. Reliable electrical ratings accommodate robust circuit designs.
RoHS compliant ensuring environment-friendly production. Suitable for automated PCB assembly and mass production. Explore more Kingbright LEDs and component options at EnvMart for advanced electronics and electrical projects.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum forward current rating for this model is 195 mA, ensuring stable operation during use.
The dominant wavelength of the KP-1608SEC is 601 nm, producing a vibrant orange light emission.
The 0603 package measures 1.6 x 0.8 mm with a height of 1.1 mm, making it suitable for dense PCB layouts.
The KP-1608SEC has a luminous intensity of 200 mcd, which is suitable for visible indicators and display backlighting.
This model features a wide viewing angle of 120 degrees, providing broad light dispersion for various applications.
The forward voltage for the KP-1608SEC is 2.5 V, making it compatible with a variety of circuit designs.
It is packaged in tape and reel format, which facilitates automated PCB assembly processes.
This model is designed for surface mounting, suitable for automated assembly lines.
The LED is RoHS compliant, ensuring environmentally responsible manufacturing practices.
This LED has two pins for straightforward electrical connections in circuit designs.
The maximum power dissipation for the KP-1608SEC is 75 mW, allowing for efficient energy use.
This LED is suitable for use in industrial electronics, communications equipment, and general-purpose lighting applications.
