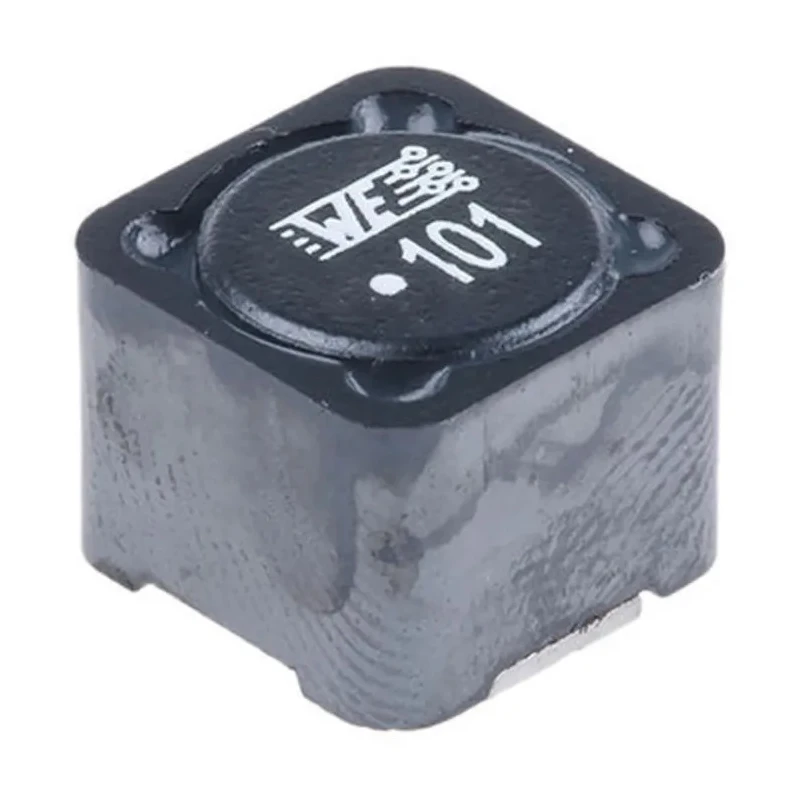

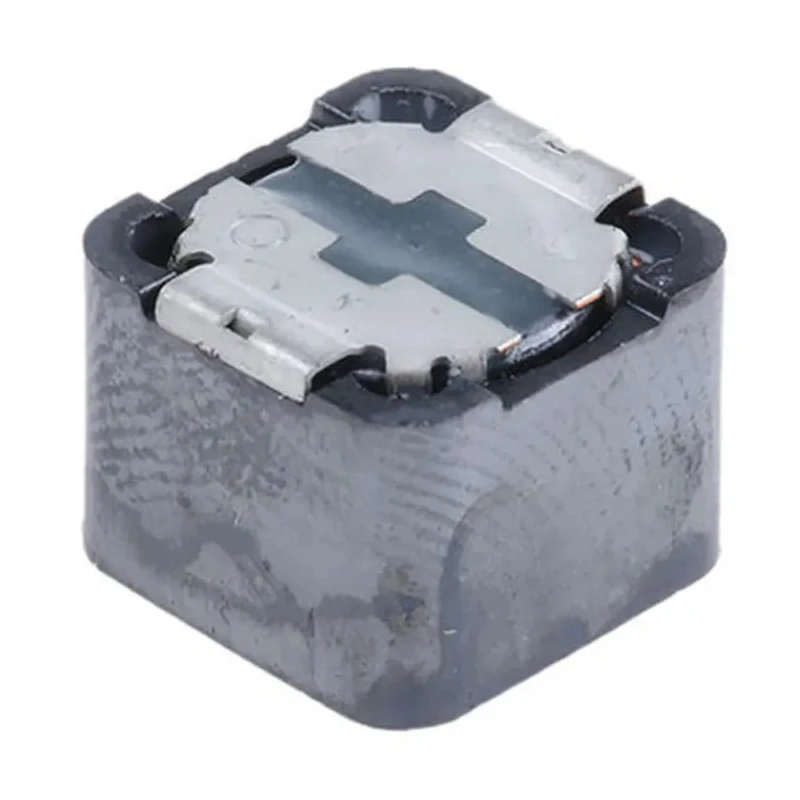

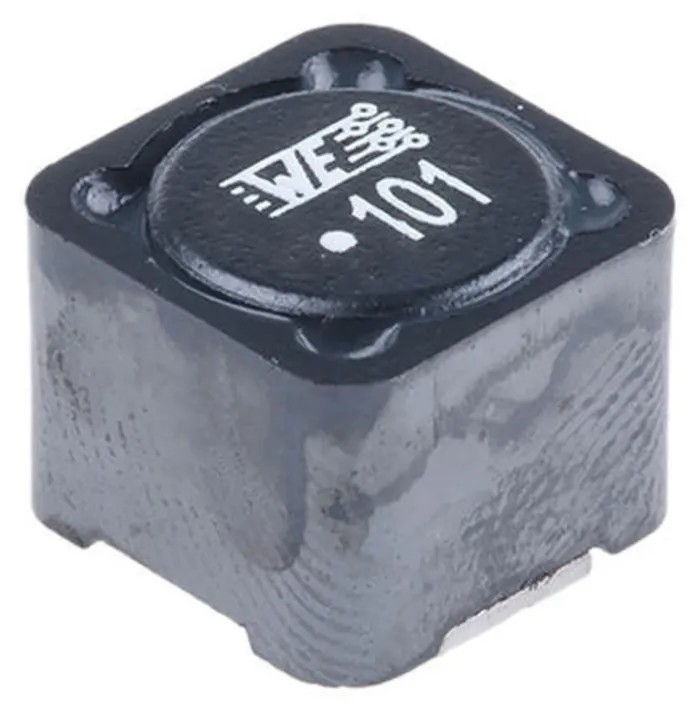

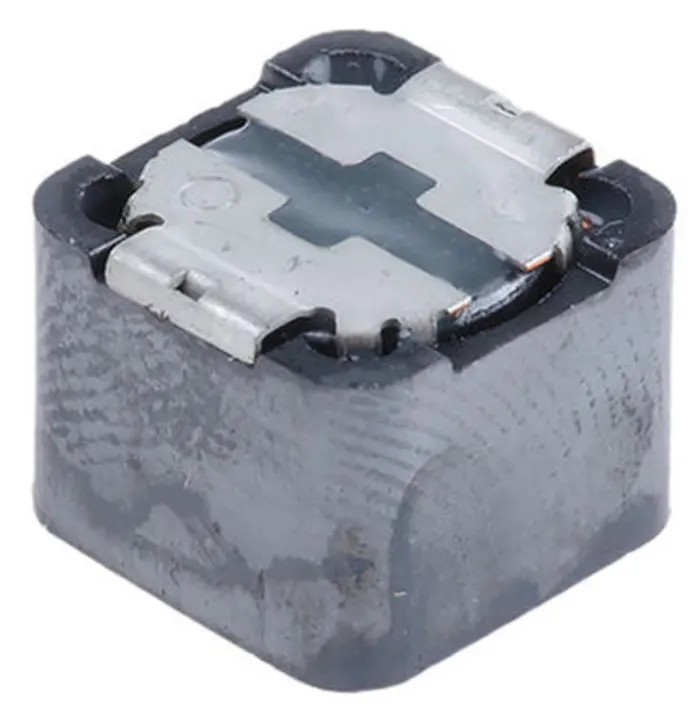

Wurth Elektronik WE-PD 1210 Shielded Wirewound Surface Mount Inductor, Ferrite Core, 100 μH ±20% 2.5 A Idc 7447709101
Specifications
| Country of Origin | India |
|---|---|
| Brand | Wurth Elektronik |
| Height | 10mm |
| Length | 12mm |
| Depth | 12mm |
| Packaging | Tape & Reel |
| Series | WE-PD |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 100μH |
| Standards/Approvals | RoHS, REACH, JEDEC JS709B, IEC 62024-2-2020 |
| Package/Case | 1210 |
| Maximum DC Current | 2.5A |
| Pin Count | 2 |
| Maximum DC Resistance | 110mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 4.3MHz |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
| Recommended solder profile | Reflow |
Key Features
- Compact 1210 package size with surface mount termination style.
- Features ferrite core material providing low self-losses and high storage capacity.
- Magnetically shielded design reduces leakage fields effectively.
- Wide operating temperature range from -40°C to 125°C ensures reliable performance.
- Maximum DC resistance of 110 mΩ for efficient operation.
- Manufactured to meet automotive AEC-Q200 standard, suitable for demanding applications.
- Recommended for switching regulators, DC/DC converters, and high-efficiency graphic cards.
- Packaging on tape and reel facilitates automated assembly processes.
Product Description
Wurth Elektronik model 7447709101 is a high-performance shielded wirewound surface mount inductor featuring a ferrite core with an inductance of 100 μH and a tolerance of ±20%. Designed for industrial and electronic applications, this inductor supports a maximum DC current of 2.5 A, making it suitable for demanding power management tasks.
This 1210 size inductor offers a compact form factor with dimensions of 12 mm length, 10 mm height, and 12 mm depth. Its magnetically shielded construction minimizes electromagnetic interference, ensuring stable circuit operation in complex assemblies.
With a maximum DC resistance of 110 milliohms, the device maintains low power losses, aiding in energy-efficient designs. The core is made of ferrite material, contributing to high storage capacity and low self-losses, critical for switching regulator and integrated DC/DC converter applications.
Operable over a temperature range from -40°C to 125°C, it complies with automotive AEC-Q200 standards for quality and reliability, making it ideal for automotive and industrial electronics.
Compact 1210 package size with surface mount termination style. Ferrite core for improved magnetic performance. Magnetically shielded to reduce leakage field. Wide operating temperature range of -40°C to 125°C. Maximum DC current rating of 2.5 amperes.
Low DC resistance of 110 milliohms for efficiency. RoHS, REACH, and JEDEC JS709B compliant standards. Suitable for switching regulators and high-efficiency electronic circuits.
This inductor is widely applied in industrial power supplies, automotive electronics, manufacturing equipment, and high-efficiency graphic card circuitry. Its high current rating and compact shielded design enable robust and reliable performance in challenging environments.
EnvMart offers this advanced Wurth Elektronik WE-PD 7447709101 inductor within the Surface Mount Inductors category, catering to industrial and electronic component requirements for precision and reliability. Explore more from Wurth Elektronik and related passive components on EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 100 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 2.5 A.
The dimensions of this unit are 12 mm in length, 10 mm in height, and 12 mm in depth.
It has a maximum DC resistance of 110 mΩ, which helps in maintaining efficient operation.
This inductor operates within a temperature range of -40°C to 125°C.
It complies with RoHS, REACH, and JEDEC JS709B standards, as well as the automotive AEC-Q200 standard.
The termination style of this model is surface mount, suitable for automated assembly processes.
The core material of this inductor is ferrite, which contributes to its low self-losses and high storage capacity.
This unit features a wirewound construction, which enhances its performance in various applications.
It is recommended for use in switching regulators, DC/DC converters, and high-efficiency graphic cards.
The inductor is packaged on tape and reel, facilitating easy handling and automated assembly.
The maximum self-resonant frequency of this model is 4.3 MHz.
