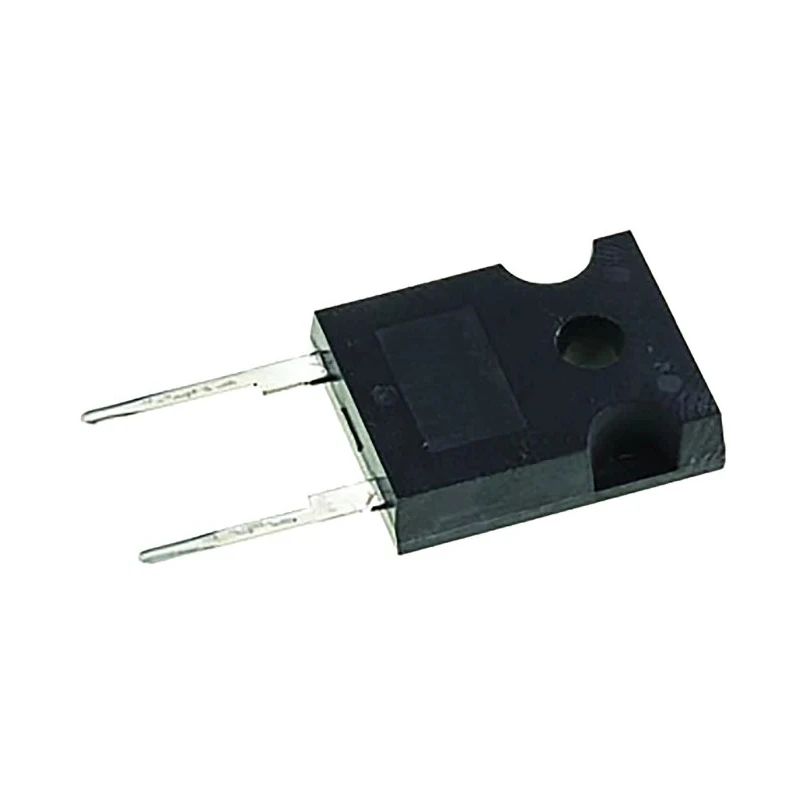

STMicroelectronics 650 V 20 A Automotive Silicon Carbide Schottky Diode 2-Pin DO-247 STPSC20065WY
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 3.75mm |
| Brand | STMicroelectronics |
| Height | 20.15mm |
| Length | 15.75mm |
| Model | STPSC20065WY |
| Width | 5.15mm |
| Mount Type | Through Hole |
| Maximum Operating Temperature | 175°C |
| Package Type | DO-247 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 2 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 650V |
| Diode Configuration | Single |
| Rectifier Type | Schottky |
| Peak Reverse Current Ir | 2mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 400A |
| Maximum Forward Voltage Vf | 1.65V |
Key Features
- This diode offers high efficiency, reducing power converter size and cost.
- Automotive quality compliant with AEC-Q101 standard ensures reliability.
- Low electromagnetic interference (EMI) impact simplifies certification and accelerates time to market.
- Natural high robustness allows high reliability with negligible reverse recovery.
- Operating temperature ranges from -40°C to a maximum of 175°C.
- Peak non-repetitive forward surge current capability is 400 A.
- The package type is DO-247 with a 2-pin configuration for through-hole mounting.
- Maximum forward voltage is 1.65 V ensuring efficient rectification.
Product Description
STMicroelectronics STPSC20065WY is a Silicon Carbide (SiC) Schottky diode designed for high efficiency and automotive-grade power applications. This 2-pin diode in a DO-247 package supports a continuous forward current of 20 A and a peak repetitive reverse voltage of 650 V, suitable for demanding power conversion environments.
The automotive AEC-Q101 qualification ensures high reliability even under harsh conditions. Its superior switching behavior is independent of temperature variations, offering stable performance across its operating range from -40°C up to 175°C.
This diode's low reverse recovery and high forward surge current capability (400 A) contribute to reduced electromagnetic emissions and enhanced converter efficiency, ultimately minimizing size and cost in power electronics designs.
With a maximum forward voltage of 1.65 V, it is optimized for low loss rectification tasks, making it suitable for automotive, industrial, and power supply applications. The DO-247 package dimensions are height 20.15 mm, width 5.15 mm, length 15.75 mm, and diameter 3.75 mm.
High efficiency reduces the size and cost of power converters. Automotive-grade AEC-Q101 qualification guarantees reliability. Low electromagnetic interference eases certification requirements. Stable switching behavior over wide temperature ranges.
High forward surge current capacity enhances robustness. Through-hole DO-247 package facilitates mounting. Wide operating temperature range from -40°C to 175°C. Maximum forward voltage is 1.65 V for efficient rectification.
Perfect for automotive, industrial, and power electronics applications.
This diode is ideal for industries requiring high reliability and efficiency in power management and conversion systems. Explore more high-quality semiconductor and diode solutions at EnvMart under the Schottky Diodes & Rectifiers category.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current for this diode is 20 A.
The peak reverse repetitive voltage rating is 650 V.
This model operates within a temperature range from -40°C to 175°C.
The maximum forward voltage of this Schottky diode is 1.65 V.
The package type is DO-247 with a 2-pin configuration for through-hole mounting.
The peak non-repetitive forward surge current capability is 400 A.
This diode complies with the AEC-Q101 automotive standard.
The dimensions of the DO-247 package are height 20.15 mm, width 5.15 mm, length 15.75 mm, and diameter 3.75 mm.
This diode is a Schottky rectifier.
The peak reverse current for this model is 2 mA.
This diode is suitable for automotive, industrial, and power supply applications.
This diode is manufactured in India.
