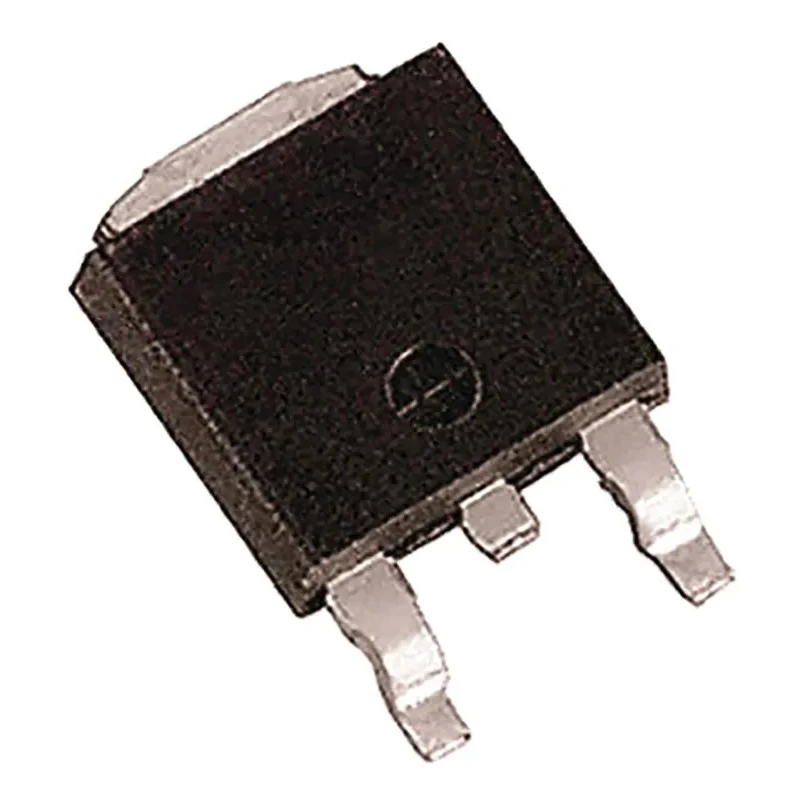

STMicroelectronics 100 V 20 A General Purpose Schottky Diode 3-Pin DPAK FERD20H100SB-TR
Specifications
| Country of Origin | India |
|---|---|
| Diameter | 6.22mm |
| Brand | STMicroelectronics |
| Height | 2.4mm |
| Length | 6.73mm |
| Model | FERD20H100SB-TR |
| Width | 6.22mm |
| Mount Type | Surface |
| Series | FERD20H100S |
| Maximum Operating Temperature | 175°C |
| Package Type | TO-252 |
| Minimum Operating Temperature | -65°C |
| Pin Count | 3 |
| Automotive Standard | AEC-Q101 |
| Maximum Continuous Forward Current If | 20A |
| Peak Reverse Repetitive Voltage Vrrm | 100V |
| Diode Configuration | Single |
| Rectifier Type | General Purpose |
| Peak Reverse Current Ir | 16mA |
| Peak Non-Repetitive Forward Surge Current Ifsm | 150A |
| Maximum Forward Voltage Vf | 705mV |
Key Features
- Offers a low forward voltage drop with a maximum of 705 mV for improved energy efficiency.
- Supports a continuous forward current of up to 20 A suitable for demanding power applications.
- Peak reverse repetitive voltage of 100 V ensures reliable operation in various circuit conditions.
- Operates at a temperature range from -65°C to 175°C for robust thermal performance.
- Features a surface mount TO-252 package with compact dimensions for PCB space savings.
- Complies with the automotive standard AEC-Q101 ensuring quality and reliability.
- Suitable for use in switched-mode power supplies, battery chargers, and compact adapters.
Product Description
STMicroelectronics FERD20H100SB-TR is a high-performance general purpose Schottky diode designed for power rectification applications. It provides a maximum continuous forward current of 20 A with a peak reverse repetitive voltage of 100 V, making it suitable for efficient power management in industrial, automotive, and consumer electronic systems.
This diode features a low forward voltage drop of 705 mV which reduces power losses and improves overall energy efficiency in circuits. It maintains stable leakage current over reverse voltage, ensuring consistent performance across its operating range.
Encased in a surface-mount TO-252 3-pin DPAK package, the device supports easy integration on compact PCBs and meets automotive quality standards AEC-Q101, guaranteeing reliability for harsh environments.
Typical applications include smartphone and tablet battery chargers, compact adapters, switched-mode power supplies, and other power supply circuits demanding efficient rectification with minimal heat generation.
The physical dimensions are 6.73 mm length, 6.22 mm width and diameter, and 2.4 mm height, facilitating design flexibility in compact electronic assemblies. Low forward voltage drop of 705 mV reduces conduction losses. Maximum continuous forward current of 20 A for power handling.
Peak reverse repetitive voltage of 100 V for operational security. Operating temperature range from -65°C to 175°C supports harsh conditions. Surface mount TO-252 3-pin DPAK package for mounting convenience. Meets automotive AEC-Q101 standard ensuring product quality.
Ideal for battery chargers, adapters, and switched-mode power supplies.
STMicroelectronics is renowned in semiconductor components, and this FERD series diode exemplifies energy-efficient design, making it a proven solution for power electronic designs that require high efficiency and reliability.
Explore a wide range of semiconductor components and power solutions, including Schottky diodes, at EnvMart to support your industrial, automotive, and consumer electronics projects.
Explore more products in our Schottky Diodes & Rectifiers category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous forward current of the FERD20H100SB-TR is 20 A, making it suitable for demanding power applications.
This model has a peak reverse repetitive voltage rating of 100 V, ensuring reliable operation in various circuit conditions.
The maximum forward voltage drop for this diode is 705 mV, which helps in improving energy efficiency by reducing power losses.
It operates within a temperature range from -65°C to 175°C, supporting robust thermal performance in harsh conditions.
The FERD20H100SB-TR is encased in a surface mount TO-252 package, which facilitates easy integration on compact PCBs.
Yes, it complies with the automotive standard AEC-Q101, ensuring quality and reliability for automotive applications.
The physical dimensions are 6.73 mm in length, 6.22 mm in width, and 2.4 mm in height, allowing for design flexibility.
The peak non-repetitive forward surge current for this model is rated at 150 A, providing additional robustness during transient conditions.
This Schottky diode is suitable for applications such as battery chargers, compact adapters, and switched-mode power supplies.
The peak reverse current for the FERD20H100SB-TR is 16 mA, which is a critical specification for its performance in circuits.
This model features a 3-pin configuration, which is standard for its TO-252 package type.
The FERD20H100SB-TR is classified as a general purpose rectifier, suitable for a variety of power management applications.
