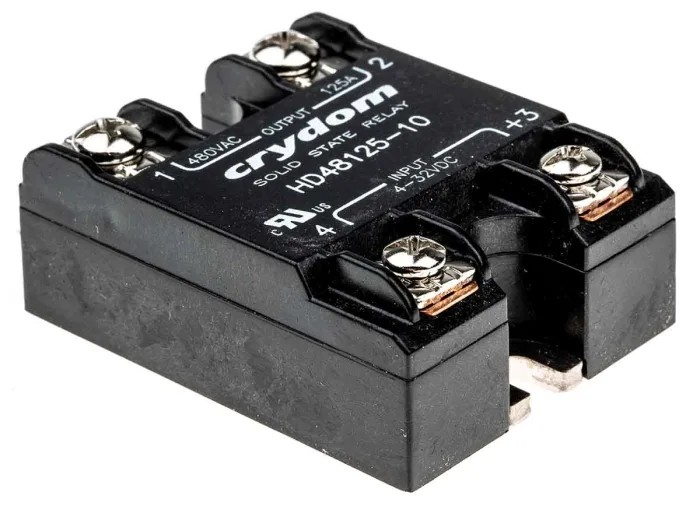

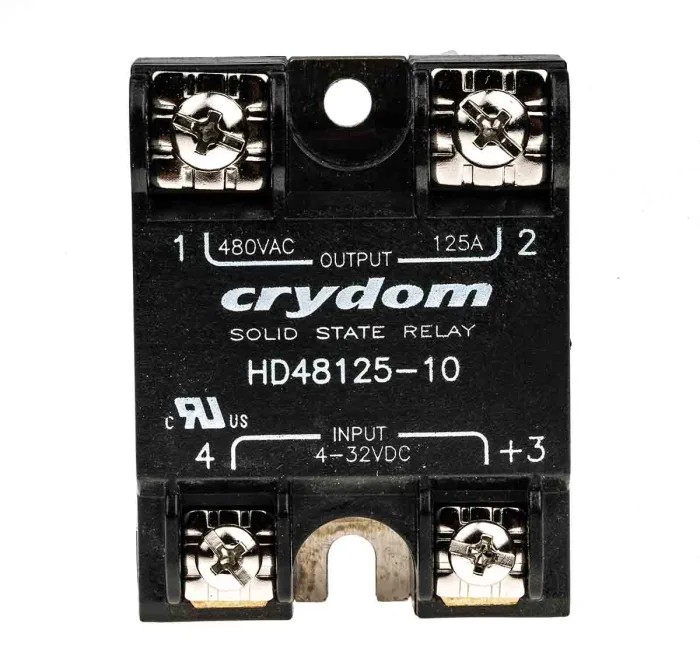

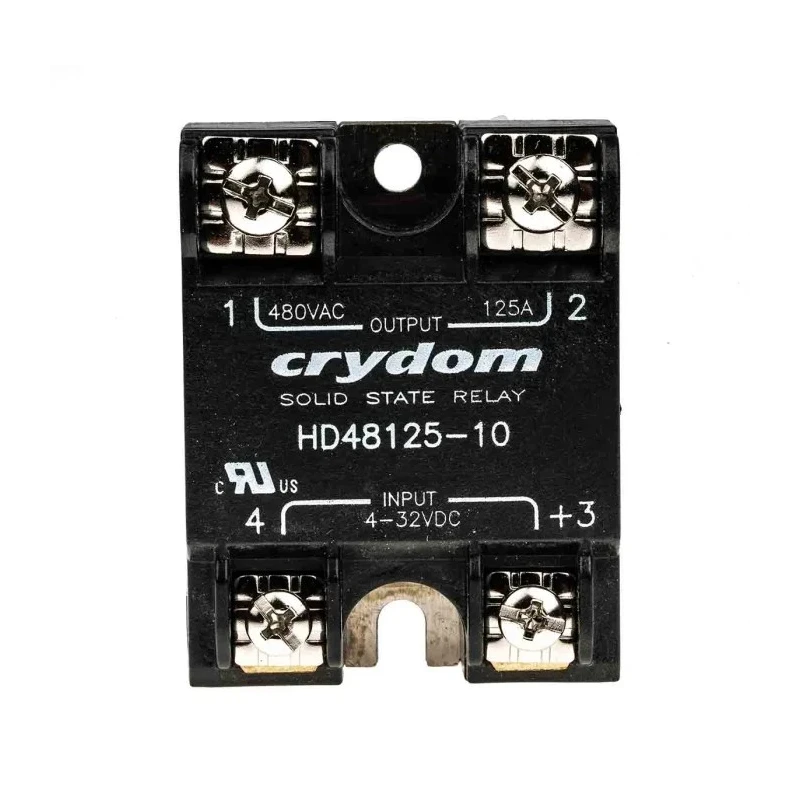

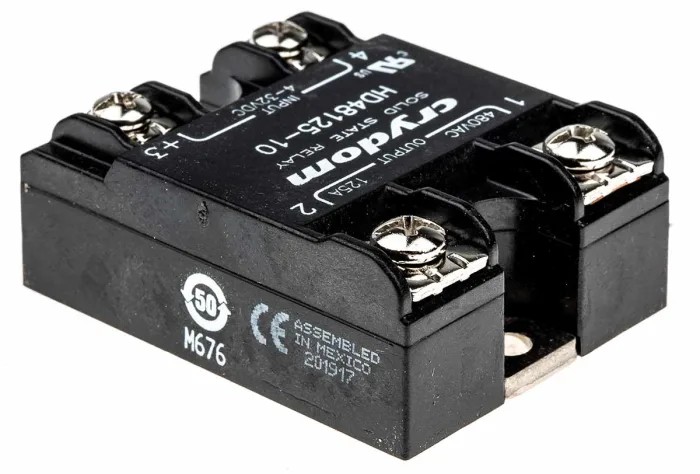

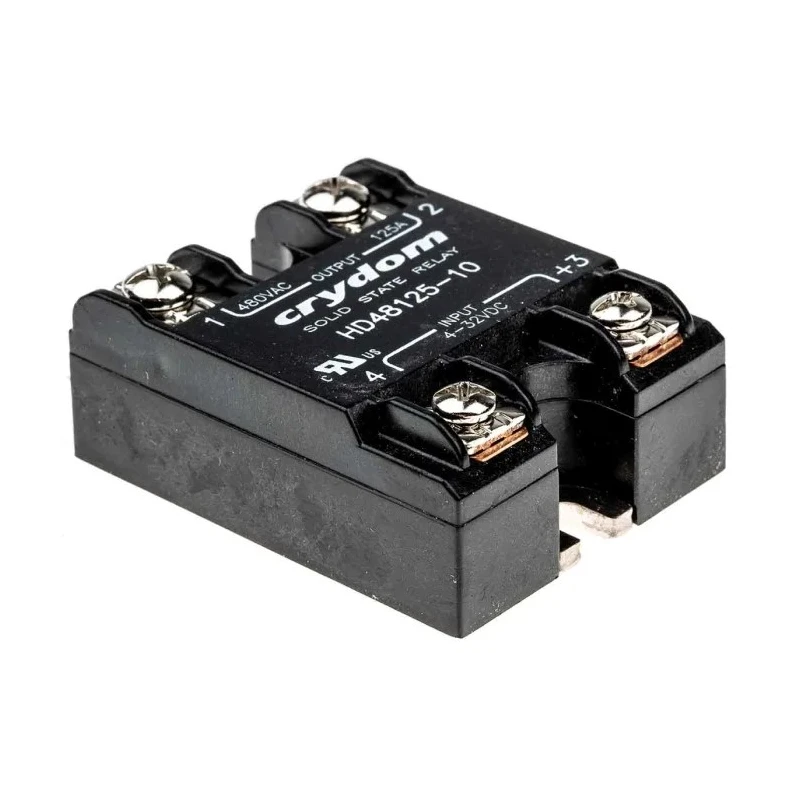

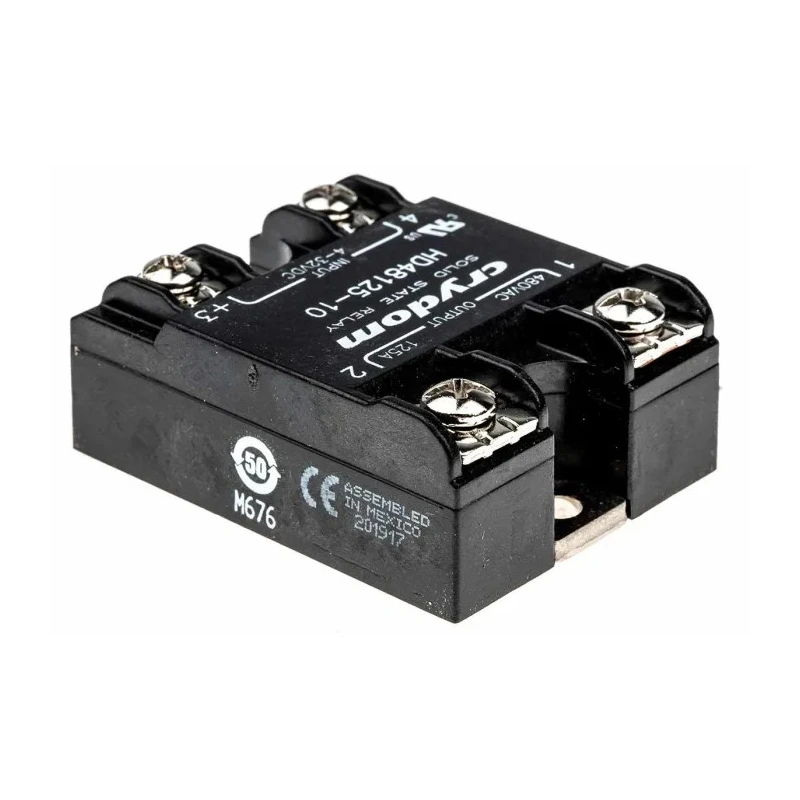

Crydom HD Series Solid State Relay Panel Mount 125A Load 530V AC Load 32V Control HD48125-10
Specifications
| Country of Origin | India |
|---|---|
| Brand | Crydom |
| Height | 23mm |
| Length | 45.7mm |
| Model | HD48125-10 |
| IP Rating | IP20 |
| Width | 22.6mm |
| Mount Type | Panel |
| Output type | SCR |
| Series | HD |
| Maximum Operating Temperature | 80°C |
| Capacitance | 8pF |
| Minimum Operating Temperature | -40°C |
| Terminal type | Screw |
| Switching Function | Instantaneous |
| Maximum Load Current | 125A |
| Standards/Approvals | UR, RoHS, CSA |
| Maximum Load Voltage | 530V ac |
| Minimum Load Voltage | 48V ac |
| Minimum Control Voltage | 4V dc |
| Maximum Control Voltage | 32V |
| Off State Leakage Current | 1mArms |
Key Features
- Rated for a maximum load current of 125 amps for heavy-duty applications.
- Screw terminal connections provide secure and reliable wiring.
- Wide operating temperature range from -40°C to 80°C for harsh environments.
- Flame-retardant housing enhances safety against fire hazards.
- Instantaneous switching function enables precise equipment control.
- Supplied with an aluminium baseplate to resist wear and corrosion.
- Low off-state leakage current of 1mArms ensures energy efficiency.
- Compact dimensions with 45.7mm length and 22.6mm width for panel mounting.
Product Description
Crydom HD48125-10 Solid State Relay Panel Mount offers robust and reliable switching for industrial, laboratory, and commercial electrical control systems. This relay supports a maximum load current of 125 amps and can operate at up to 530V AC load voltage, making it suitable for controlling motors, lighting, and heavy electrical loads.
The unit features a screw terminal type for quick and secure wiring, along with a flame-retardant housing that ensures safety under fire conditions. It operates reliably within a wide temperature range from -40°C to +80°C, making it ideal for use in extreme industrial environments.
This relay has instantaneous switching functions with a very low off-state leakage current of 1mArms. The supplied aluminium baseplate provides mechanical support and corrosion resistance, extending the relay's operational life in demanding settings.
The relay’s compact size, with dimensions of 45.7mm in length, 22.6mm in width, and 23mm in height, facilitates easy panel mounting. It meets key safety and environmental standards including UR certification, RoHS compliance, and CSA approval for assured quality.
Rated for maximum load current of 125A. Panel mount with screw terminals for secure installation. Wide temperature operation from -40°C to 80°C. Flame-retardant housing for enhanced fire safety. Instantaneous switching reduces wear and latency.
Aluminium baseplate included for durability and corrosion resistance. Low off-state leakage current minimizes power loss. Compact and robust design suitable for industrial use. Compliance with UR, RoHS, and CSA standards.
8pF capacitance and SCR output type for effective control.
This Crydom HD48125-10 Solid State Relay is optimized for industrial automation, HVAC systems, motor controls, lighting systems, and medical equipment. Its reliable performance and long mean time between failures (MTBF) make it a trusted choice for engineers and technicians.
Explore EnvMart’s extensive range of industrial relays and solid state controls to find complementary control devices suited for your applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The Crydom HD48125-10 solid state relay has a maximum load current rating of 125 amps.
This relay can operate at a maximum load voltage of 530V AC and a minimum load voltage of 48V AC.
The minimum control voltage for this model is 4V DC, while the maximum control voltage is 32V.
It features screw terminal connections, which provide secure and reliable wiring.
The relay operates within a wide temperature range from -40°C to +80°C.
This solid state relay measures 45.7mm in length, 22.6mm in width, and 23mm in height.
The off-state leakage current is rated at 1mArms, which helps in minimizing power loss.
It features an instantaneous switching function, which allows for precise control of equipment.
The relay complies with UR, RoHS, and CSA standards, ensuring quality and safety.
The relay has a flame-retardant housing that enhances safety against fire hazards and includes an aluminium baseplate for durability.
This solid state relay is optimized for industrial automation, HVAC systems, motor controls, lighting systems, and medical equipment.
