Crydom H-A Series Solid State Relay Panel Mount, 12 A Load, 530 V ac Load, 280 V Control HA4812

Crydom HA4812 is a H-A Series Solid State Relay designed for panel mounting. It offers a maximum load current of 12 amperes and supports an alternating current load voltage up to 530 V ac. The relay operates with a control voltage range reaching 280 V, making it suitable for various industrial and automation control applications.

This solid state relay incorporates advanced Direct Bond Copper (DBC) substrate technology, which improves thermal management, allowing for enhanced performance and reliability. The device uses SCR output for handling heavy industrial loads and features a zero voltage switching function that minimizes electrical noise and extends component life.

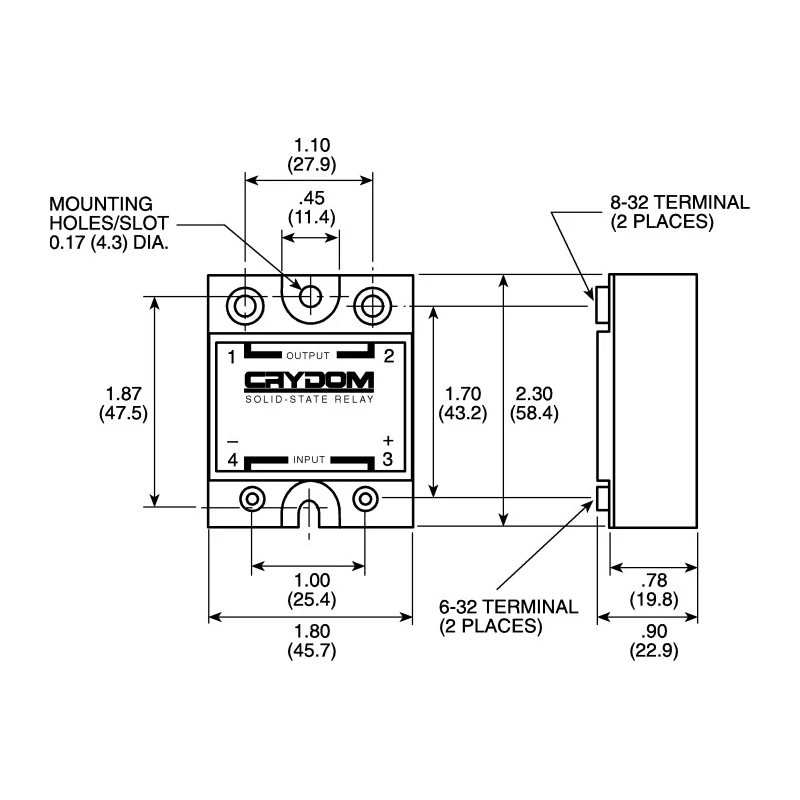

The compact design with dimensions 58.4 mm length, 22.6 mm width, and 23 mm height allows ease of installation in panel mount configurations. Screw terminals enable secure electrical connections. The relay is rated to operate reliably within a wide temperature range from -40°C to 80°C, making it ideal for demanding environments.

Compliance with safety and environmental standards such as CSA, RoHS, and UR ensures that the Crydom HA4812 meets the necessary regulatory requirements. It is an efficient solution for industries requiring robust, precise, and maintenance-free solid state switching.

Key design features include anti-rotation barriers to prevent improper installation and epoxy-free construction to enhance durability. The relay is EMC compliant to Level 3, ensuring electromagnetic compatibility in industrial settings.

Configured for panel mounting in electronic and electrical control systems. Supports a maximum load current of 12 amperes for robust performance. Maximum AC load voltage rating of 530 volts ensures compatibility with diverse loads.

Control voltage range up to 280 volts provides flexibility in control circuits. Features zero voltage switching for reduced electrical noise and improved longevity. Equipped with screw terminal type for secure and easy wiring.

Industrial temperature rating from -40°C to 80°C ensures reliable operation in harsh environments. Compact dimensions: length 58.4 mm, width 22.6 mm, height 23 mm for space efficient installations. Incorporates Direct Bond Copper technology for enhanced thermal performance.

Complies with CSA, RoHS, and UR standards for safety and environmental compliance.

This solid state relay is ideal for industrial, manufacturing, automation, HVAC, and electrical control panel applications. Explore the EnvMart catalog for similar Crydom Solid State Relays and related accessories.
