Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin UMT PUMH9,115

Free Delivery in India | Lowest Global Shipping Charges

Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin UMT PUMH9,115

Name: Nexperia Digital Transistor 100 mA NPN 50 V 6-Pin UMT PUMH9,115
Brand: Nexperia
SKU: 193903
Price: 0.06 USD
Availability: InStock



Category Digital Transistor Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	2.2mm
Model	PUMH9,115
Width	1.35mm
Mount Type	Surface
Series	PUMH9
Maximum Operating Temperature	150°C
Package Type	UMT
Minimum Operating Temperature	0°C
Pin Count	6
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	100
Transistor Polarity	NPN
Maximum Emitter Base Voltage VEBO	10V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Isolated
Maximum Transition Frequency ft	230MHz

Key Features

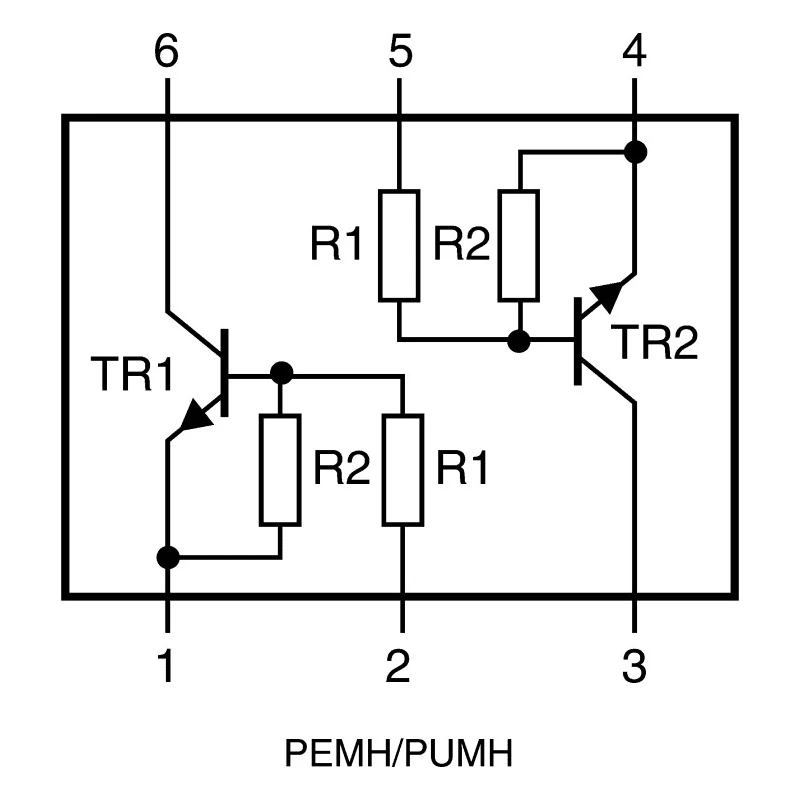

Dual resistor digital transistor designed for easy direct drive from digital sources.
Maximum power dissipation of 200 mW supports efficient operation.
High transition frequency of 230 MHz suitable for high-speed switching applications.
Robust operation from 0°C to 150°C operating temperature range.
Isolated transistor configuration minimizes interference in circuit design.
Compact dimensions of 2.2 mm length, 1.35 mm width, and 1.1 mm height enable high-density PCB use.
Compliant with AEC-Q101 automotive standard ensuring reliable performance.
Manufactured in Malaysia with high-quality semiconductor processes.

Product Description

Nexperia PUMH9,115 digital transistor is a dual resistor, NPN polarity, 6-pin UMT package device designed for robust and efficient performance in digital switching circuits. It supports a maximum DC collector current of 100 mA and a maximum collector emitter voltage of 50 V, enabling it to handle moderate power industrial, automotive, and electronic applications.

This digital transistor incorporates integrated resistors, allowing it to be directly driven from digital sources without external components. With a maximum power dissipation rating of 200 mW and a high transition frequency of 230 MHz, it offers excellent switching speed and thermal performance for demanding electronic control circuits.

The transistor’s isolated configuration reduces cross-talk, making it suitable for precision semiconductor applications. Its compact dimensions (2.2 mm length, 1.35 mm width, 1.1 mm height) and surface mount UMT package support high-density and automated assembly on PCBs.

Operating reliably over a temperature range from 0°C to 150°C, this transistor meets AEC-Q101 automotive standards, ensuring compliance for automotive electronic system design. This product is manufactured in Malaysia under strict quality controls.

Typical industrial applications include automotive electronics, signal switching, digital control circuits, and power management in computer peripherals and consumer electronics. Dual resistor integration simplifies circuit design.

High-speed switching with 230 MHz transition frequency. Compact 6-pin UMT surface mount package. AEC-Q101 certified for automotive use. Wide operational temperature range up to 150°C. Manufactured in Malaysia ensuring quality and reliability.
