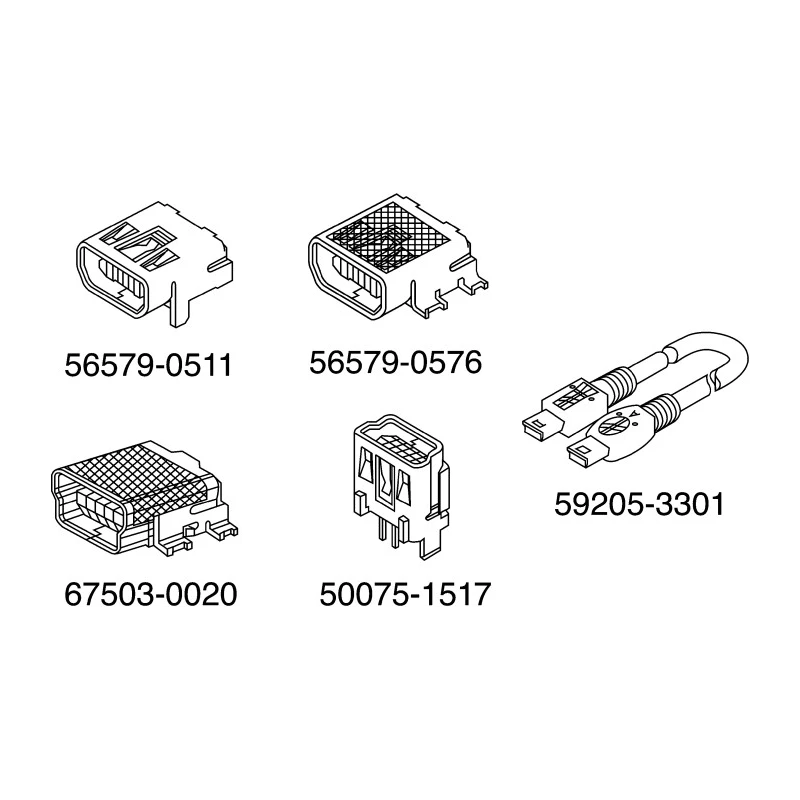

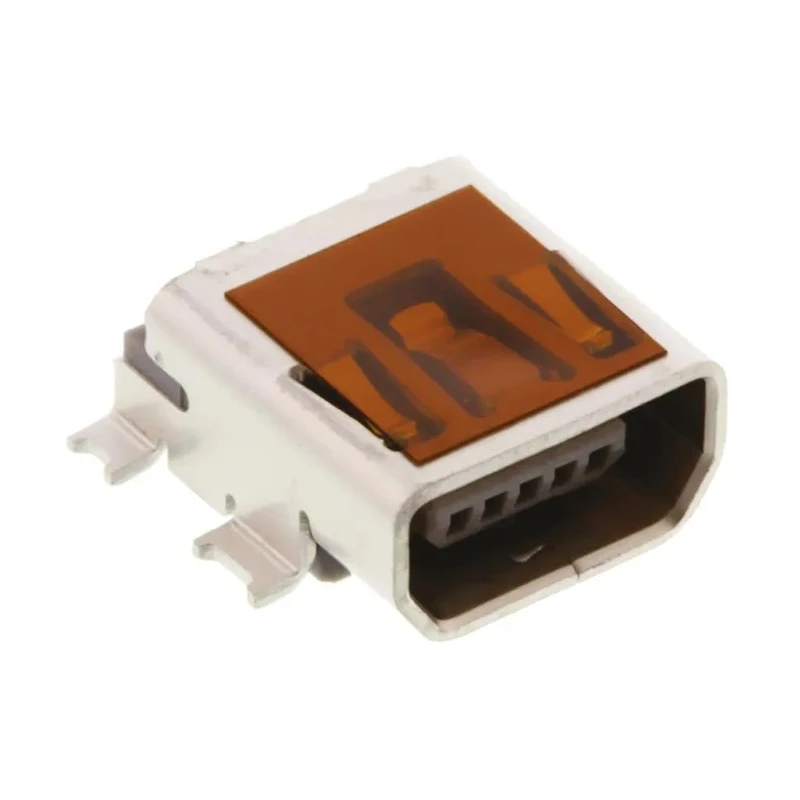

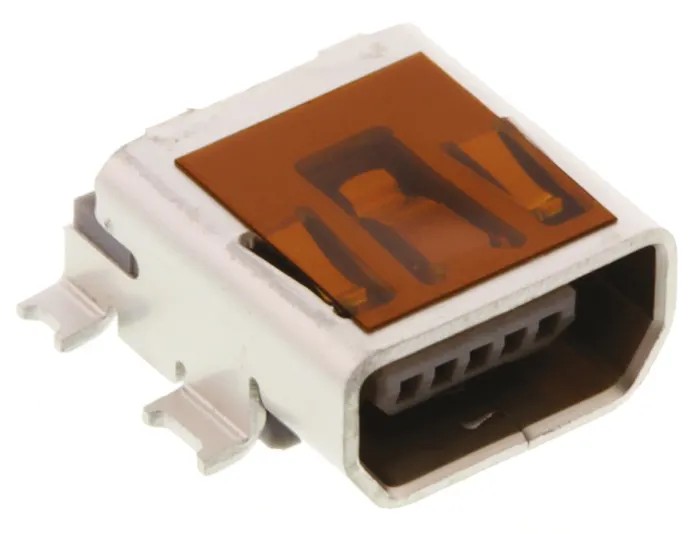

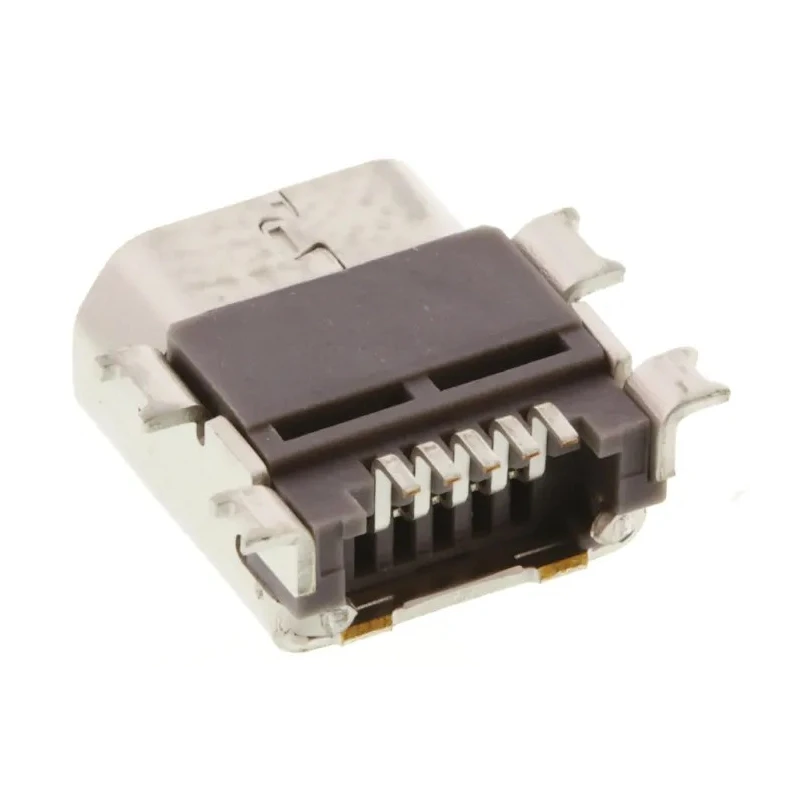

Molex USB Connector Right Angle Surface Mount Female 1 Port Mini USB Type AB USB 2.0 56579-0576

Molex 56579-0576 USB Connector is a high-quality mini USB Type AB connector designed for right angle surface mount applications. Manufactured to comply with USB 2.0 specifications, it supports data transfer speeds up to 480 Mbps, suitable for various portable and mobile devices.

This connector features a compact design, approximately one-eighth the size of a standard USB-B connector, which minimizes board space requirements. The right angle orientation facilitates efficient PCB layout, while surface mounting provides robustness and ease of assembly.

With a current rating of 1 Ampere and voltage handling up to 30 Volts, it is suitable for low power USB connectivity applications. The contacts are made of copper alloy, providing excellent conductivity and reliability. The connector is rated to operate in temperatures ranging from -40°C to 85°C, making it suitable for a broad range of environments.

Termination is by solder which is compatible with common PCB manufacturing processes. The design includes 5-pin pitch with one ID pin, adhering to standards for USB OTG (On-The-Go) use. Its construction provides excellent RFI and EMI performance, critical for electronic devices requiring stable connections.

This Molex USB connector is ideal for use in electronic components manufacturing, including consumer electronics, industrial equipment, and communications devices. Its durability guarantees up to 5000 mating cycles, ensuring longevity in both prototypes and production units.

The product is made in China and adheres to RoHS compliance, suitable for eco-conscious applications. This connector is supplied as a single port type mini USB AB female interface and is ideal for integration in compact, efficient electronic systems.

This USB connector features a mini USB Type AB interface suitable for compact electronic devices. Right angle orientation and surface mount design reduce PCB space and enhance assembly efficiency. Current rating is 1 Ampere with a voltage rating of 30 Volts, ideal for low power applications.

Contact material is copper alloy ensuring good electrical conductivity. Operating temperature range spans from -40°C to 85°C providing reliability in diverse environmental conditions. Termination type is solder, compatible with standard PCB assembly methods.

Designed for USB On-The-Go (OTG) applications supporting mobile and portable devices. Miniature size is approximately one-eighth of a standard USB-B connector, optimizing space on compact PCBs. Durability tested for up to 5000 mating cycles ensuring long-term use.
