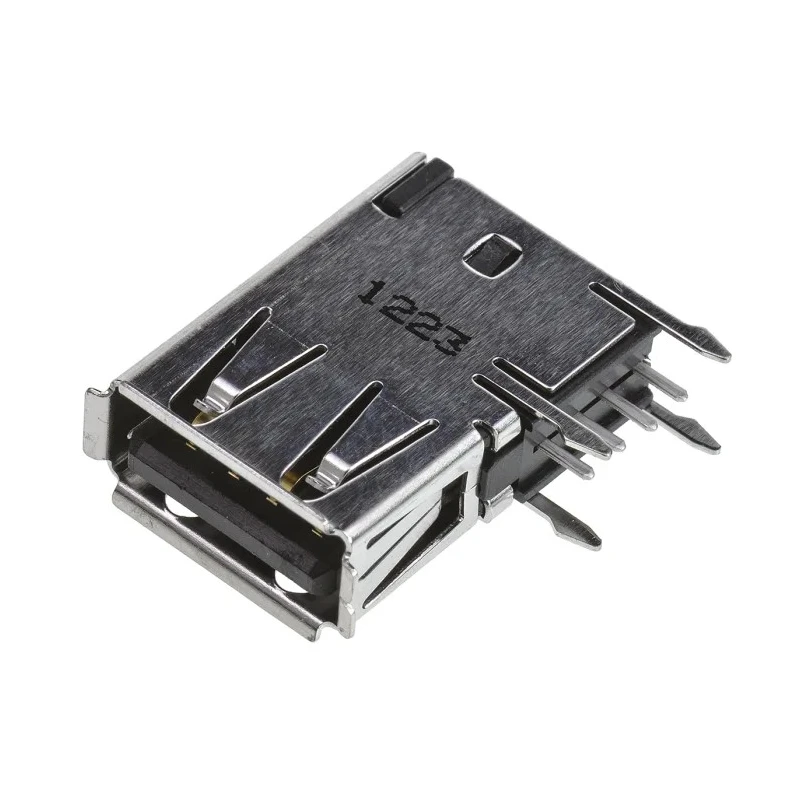

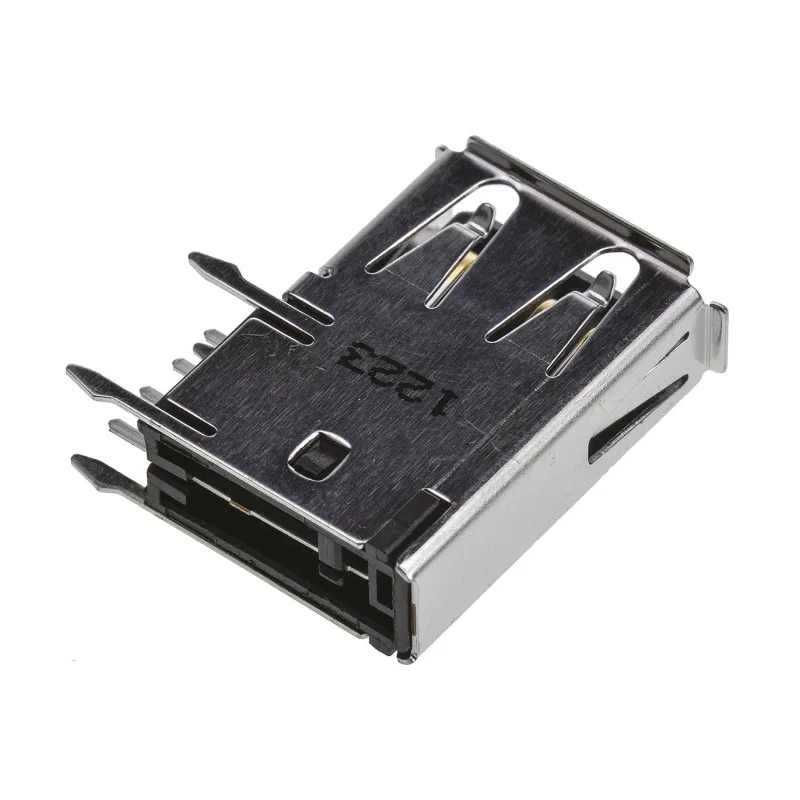

TE Connectivity Right Angle Through Hole Female USB Type A USB Connector USB 2.0 292336-1

TE Connectivity 292336-1 is a high-quality right angle through hole female USB Type A connector designed according to USB 2.0 standards. It supports data transfer rates up to 480 Mbps, making it suitable for modern electronic and computing applications. The connector features a robust construction with glass filled thermoplastic housing and phosphor bronze contacts, ensuring durability and excellent electrical performance.

The right angle orientation provides greater flexibility in PCB mounting, while the integrated locking mechanism enhances the mechanical retention force to 40 Newtons, securing the connector firmly in place. The solder termination type ensures a reliable and strong connection on the PCB.

Operational in a wide temperature range from -55°C to 85°C, this connector is rated for 30 volts and is IP20 tested, protecting against solid objects greater than 12 mm.

This USB connector is ideal for use in industrial environments such as machine vision systems, human machine interfaces, printers, barcode readers, and mass storage devices, where robust and reliable USB connectivity is essential.

Designed for USB 2.0 standard supporting data transfer speeds up to 480 Mbps. Right angle orientation provides optimal PCB space utilization. Phosphor bronze contact material ensures excellent conductivity and mechanical strength.

Integrated locking mechanism provides strong retention force of 40 N. Solder termination enables solid mechanical and electrical connection. Wide operating temperature range from -55°C to 85°C supports diverse environments.

Compact, robust glass filled thermoplastic housing ensures durability and longevity. Rated for 30V with IP20 protection compliance. Perfect for industrial and commercial applications requiring reliable USB connectors. Explore EnvMart’s comprehensive catalog of industrial USB Connectors and electronic components for your project needs.
