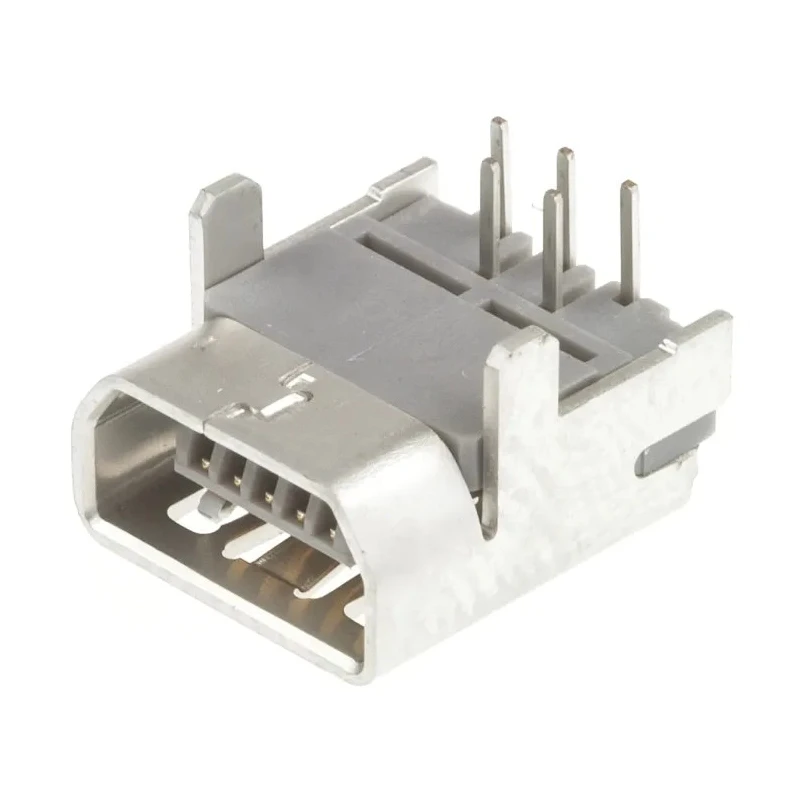

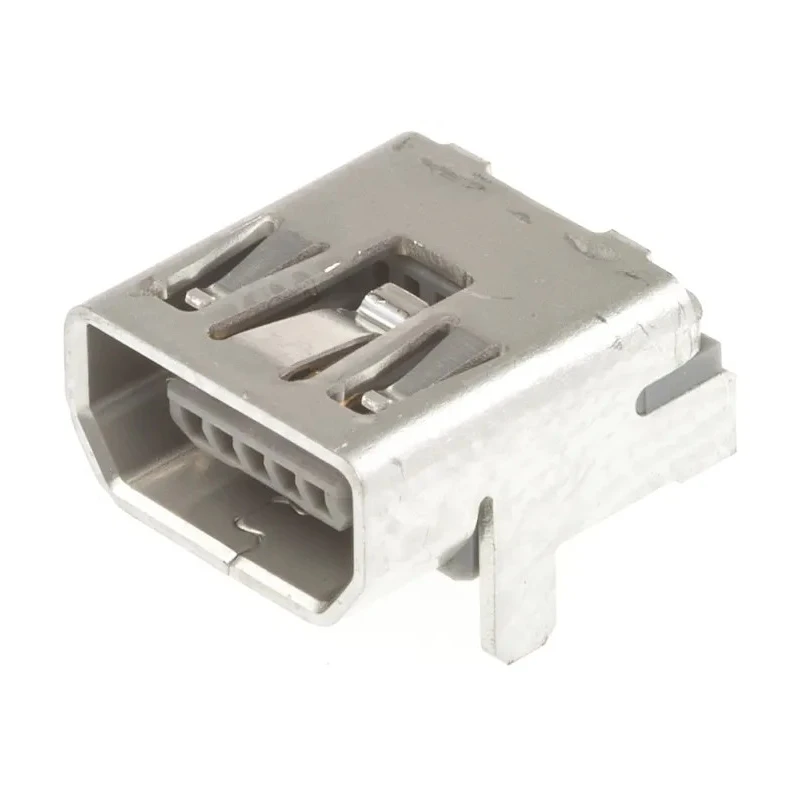

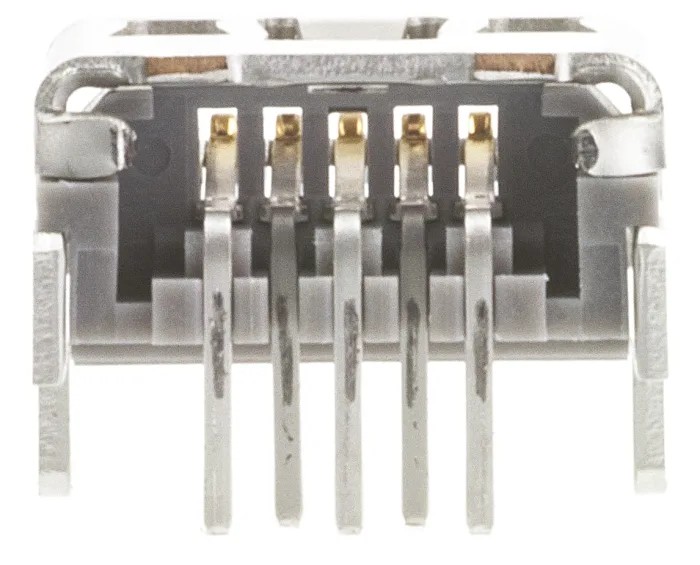

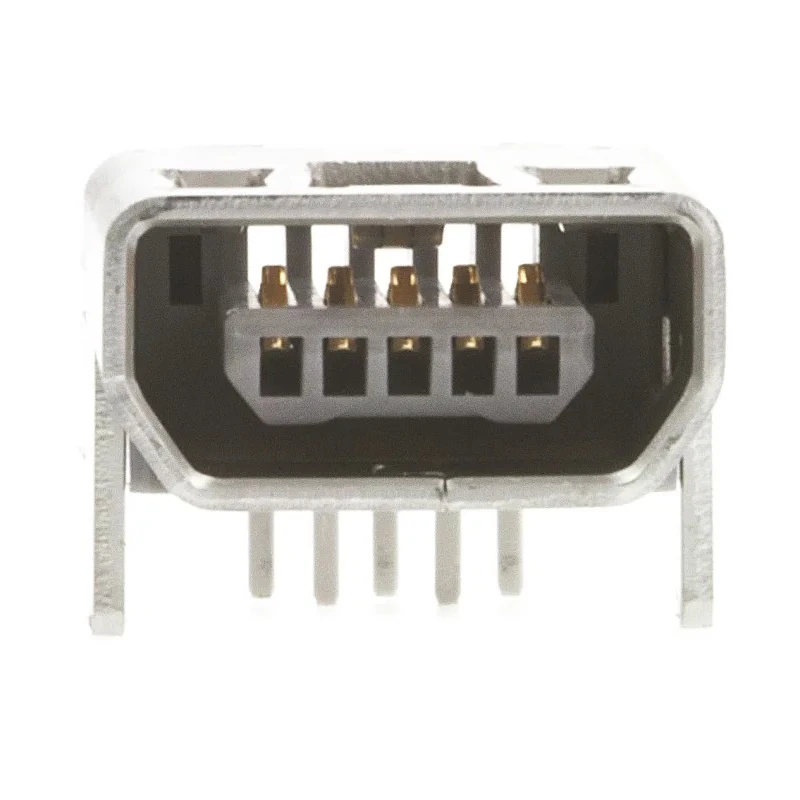

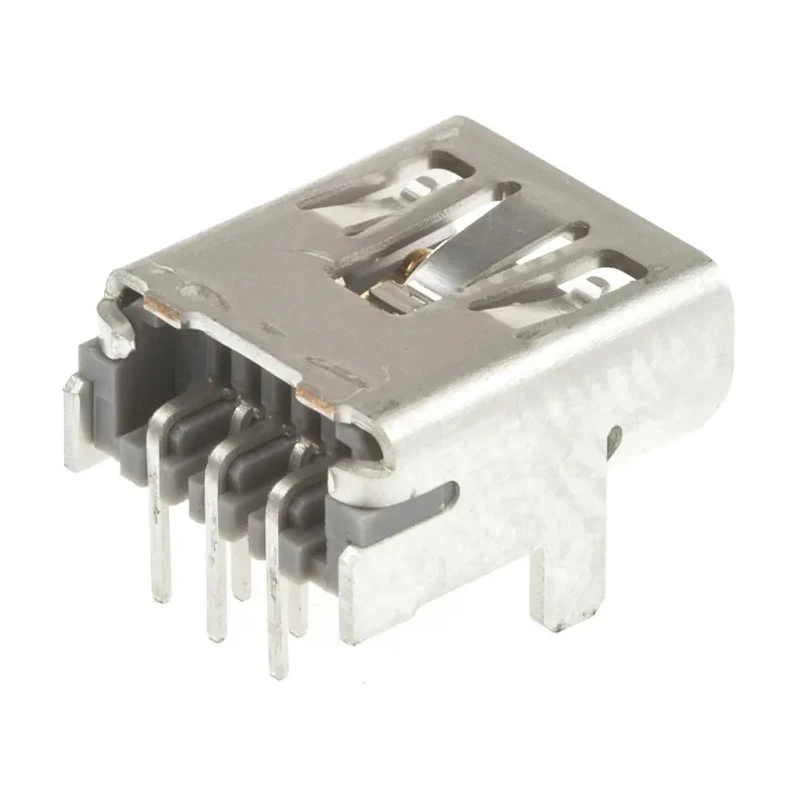

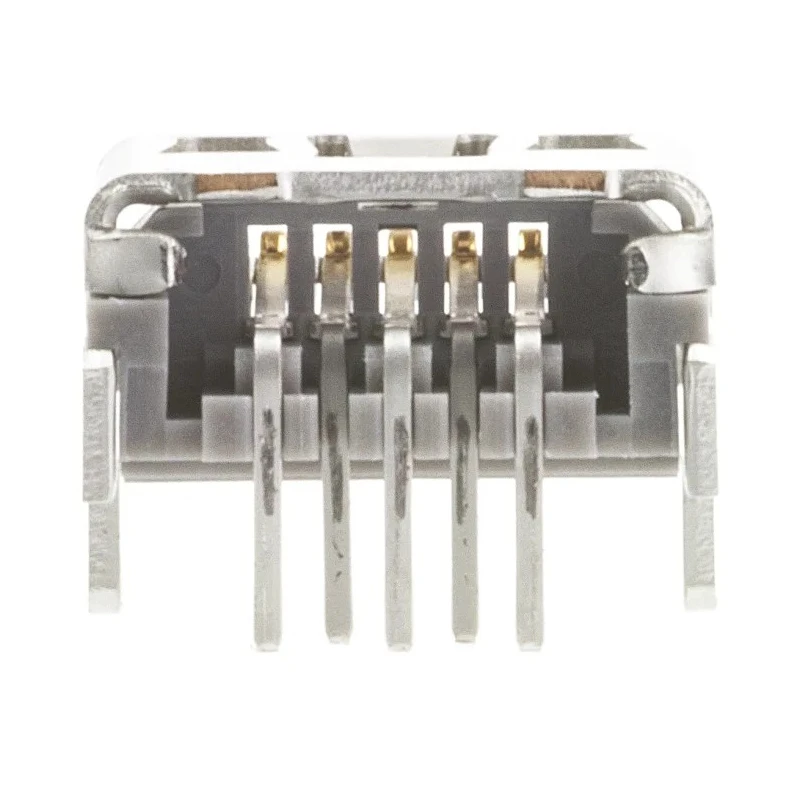

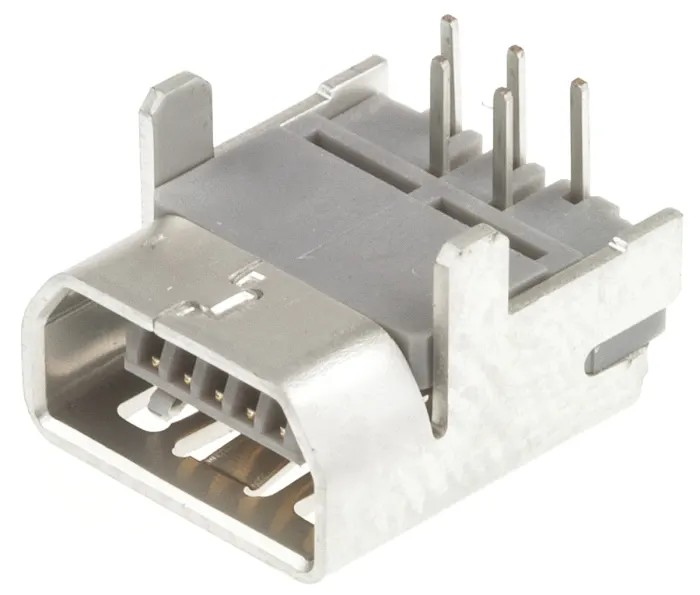

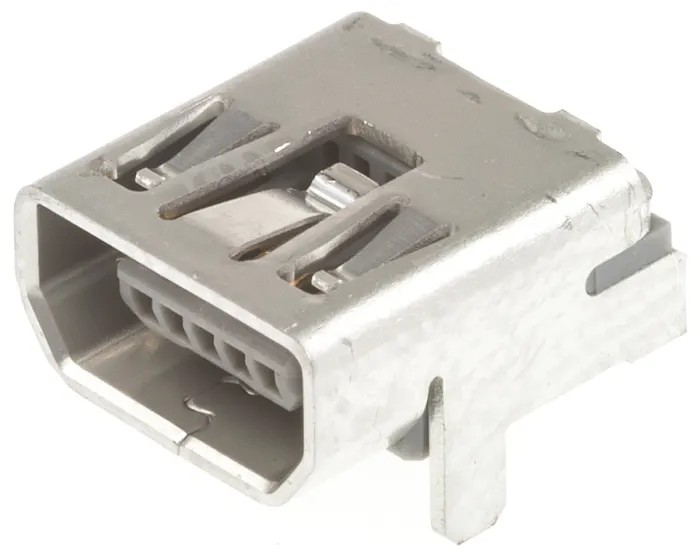

Molex Mini USB Type AB Right Angle Through Hole Female USB Connector USB 2.0 56579-0519
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 30V |
| Brand | Molex |
| Orientation | Right Angle |
| Current | 1A |
| Mount Type | Through Hole |
| Contact Material | Copper Alloy |
| Series | On-The-Go |
| Number Of Ports | 1 |
| Termination Type | Solder |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | 0°C |
| Interfaces | standard USB-B connector Excellent RFI/EMI performance |
| USB Type | Mini USB Type AB |
| Connector Gender | Female |
| USB Specification | USB 2.0 |
Key Features
- This connector features a right angle orientation for versatile PCB mounting.
- Supports USB 2.0 specification enabling data transfer speeds up to 480 Mbps.
- Compact 5-pin design reduces mounting space for flexible circuit board layouts.
- Constructed with copper alloy contacts ensuring durability and optimal conductivity.
- Suitable for USB On-The-Go applications with robust solder termination.
- Operates efficiently within 0°C to 50°C temperature range.
- Designed as a female connector with through-hole mount type for secure installation.
- Rated for 1A current and 30V voltage, ideal for low power USB devices.
Product Description
Molex 56579-0519 Mini USB Type AB Right Angle Through Hole Female USB Connector USB 2.0 provides reliable and high-performance connectivity solutions for electronic components.
Designed to comply with USB 2.0 standards, it supports data transfer speeds up to 480 Mbps, perfect for portable and mobile equipment requiring compact USB On-The-Go (OTG) connectors. Its right angle orientation facilitates efficient PCB mounting in tight spaces.
The connector features a 5-pin pitch design, minimizing PCB footprint while maintaining excellent RFI/EMI performance. Constructed from copper alloy contacts, it guarantees robust electrical connections and longevity with expected life cycles up to 5000 mating cycles.
With a voltage rating of 30V and current rating of 1A, this female USB connector is optimized for low-power USB applications. The through-hole solder termination type ensures durable mechanical and electrical bonds on circuit boards.
Operating temperature range from 0°C to 50°C makes this connector suitable for various industrial, laboratory, telecommunications, and consumer electronics environments. This connector features a right angle orientation for versatile PCB mounting.
Supports USB 2.0 specification enabling data transfer speeds up to 480 Mbps. Compact 5-pin design reduces mounting space for flexible circuit board layouts. Constructed with copper alloy contacts ensuring durability and optimal conductivity.
Suitable for USB On-The-Go applications with robust solder termination. Operates efficiently within 0°C to 50°C temperature range. Designed as a female connector with through-hole mount type for secure installation. Rated for 1A current and 30V voltage, ideal for low power USB devices.
This product is ideal for electronic manufacturing, embedded systems, telecommunications, and consumer electronics requiring reliable mini USB connections with small form factor and robust performance.
Explore more in the USB Connector category at EnvMart for a wide range of connector solutions meeting diverse industrial applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
It supports data transfer speeds up to 480 Mbps, complying with the USB 2.0 specification.
The operating temperature range is from 0°C to 50°C.
It features a through-hole mount type for secure installation on circuit boards.
It is rated for a current of 1A and a voltage of 30V, suitable for low power USB devices.
The contacts are constructed from copper alloy, ensuring optimal conductivity and durability.
This connector has 1 port, designed as a female USB connector.
It features a right angle orientation, which facilitates efficient PCB mounting in tight spaces.
It uses a solder termination type, ensuring durable mechanical and electrical bonds.
Yes, it is suitable for USB On-The-Go applications, designed for portable and mobile equipment.
It has an expected life cycle of up to 5000 mating cycles, ensuring longevity in use.
This connector complies with the Mini USB Type AB specification.
The country of origin for this connector is China.
