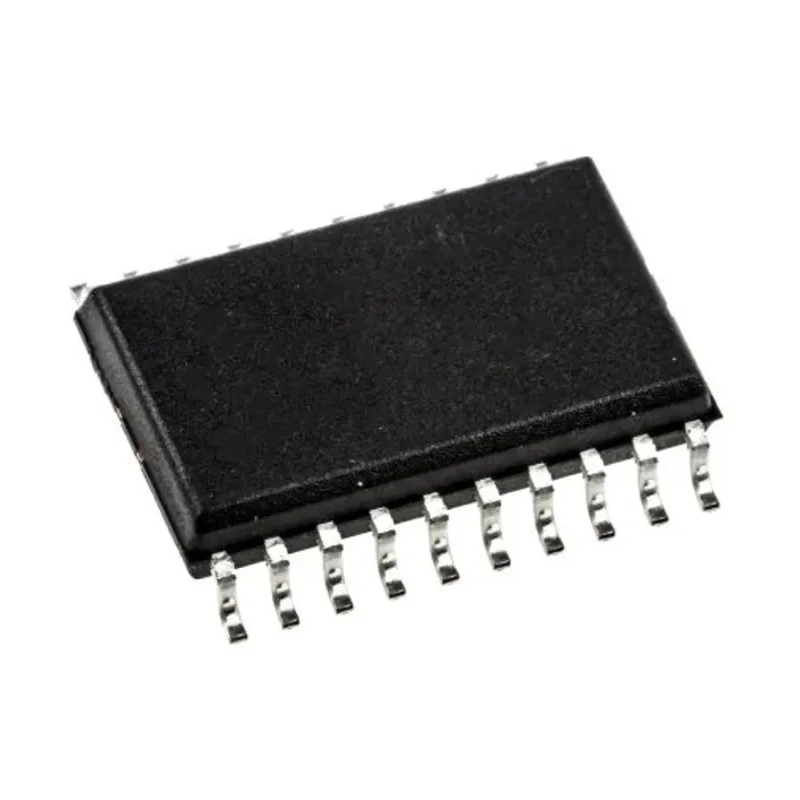

Microchip 12 Bit AVR ATTINY Microcontroller 20 MHz 8kB FLASH 20-Pin SOIC ATTINY826-SU

Microchip ATTINY826-SU is a 12-bit AVR microcontroller designed for efficient embedded applications. It integrates an AVR CPU with a hardware multiplier, operating up to 20 MHz clock speed, with 8 kB of FLASH memory and 1 kB SRAM.

This microcontroller is housed in a compact 20-pin SOIC surface mount package, offering 18 programmable I/O pins, making it ideal for space-constrained electronic designs.

Key features include a 12-bit Differential ADC with programmable gain amplifier (15 channels), an analog comparator with an internal DAC reference, and 3 timers for precise timing control. It offers versatile serial communication options such as 2 USARTs, SPI, and I2C interfaces for seamless integration and connectivity.

The device supports low power operation and includes Core Independent Peripherals such as an Event System and Configurable Custom Logic. Its supply voltage ranges from 1.8 V to 5.5 V, allowing flexibility in power management for various industrial and consumer applications.

Compliant with REACH and RoHS3 standards, the ATTINY826-SU is suitable for environmentally conscious designs. This microcontroller is widely applicable in industrial control systems, sensor interfaces, consumer electronics, and embedded processors requiring reliable AVR technology and advanced analog peripherals.

The microcontroller uses an AVR CPU with hardware multiplier for enhanced performance. It supports a maximum clock frequency of 20 MHz with 8 kB of flash program memory. Includes 1 kB SRAM and 128 bytes of EEPROM for data storage.

Features 18 programmable input/output pins and 15 channels of 12-bit ADCs with programmable gain amplifier. Includes 3 timers and multiple serial communication interfaces including 2 USART, SPI, and I2C. Operates with a supply voltage range from 1.8 V to 5.5 V ensuring flexible power options.

Designed with low power consumption and core independent peripherals including event system and configurable custom logic. Complies with REACH and RoHS3 environmental standards. Suitable for embedded applications requiring compact 20-pin SOIC surface mount form factor.

Ideal for industrial, electronic, and embedded control systems requiring reliable AVR architecture and integrated analog peripherals. Explore more Microcontrollers and semiconductor solutions on EnvMart to find the perfect fit for your application.
