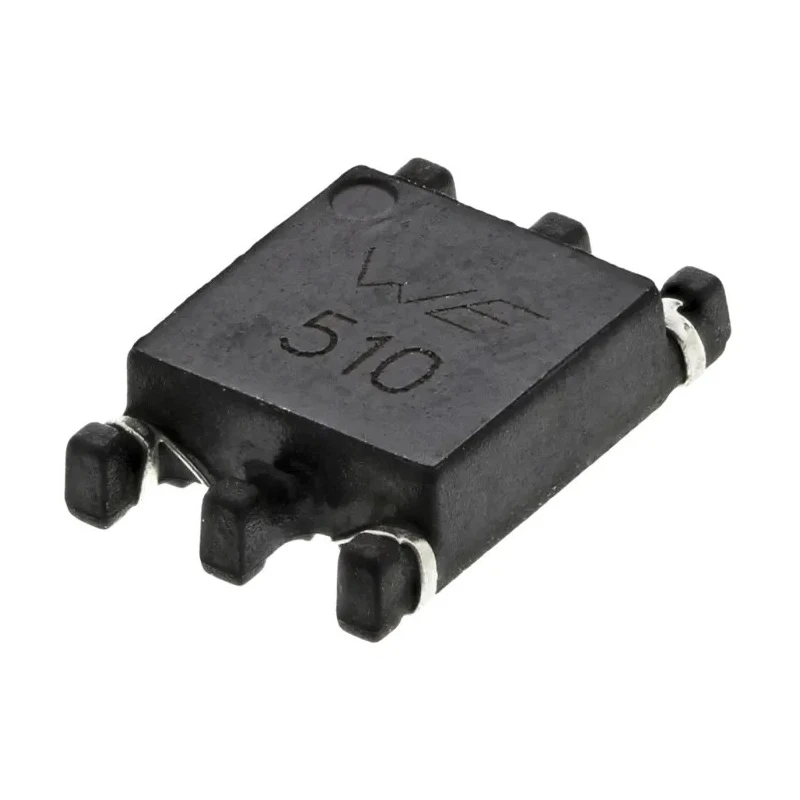

Wurth Elektronik Surface Mount Common Mode Line Filter Ferrite Core 51 μH Dual 500 mA 744252510

Wurth Elektronik 744252510 is a surface mount common mode line filter featuring a dual inductor construction with a ferrite core. With an inductance of 51 μH and a maximum DC current rating of 500 mA, it is designed for electromagnetic noise suppression in electronic circuits.

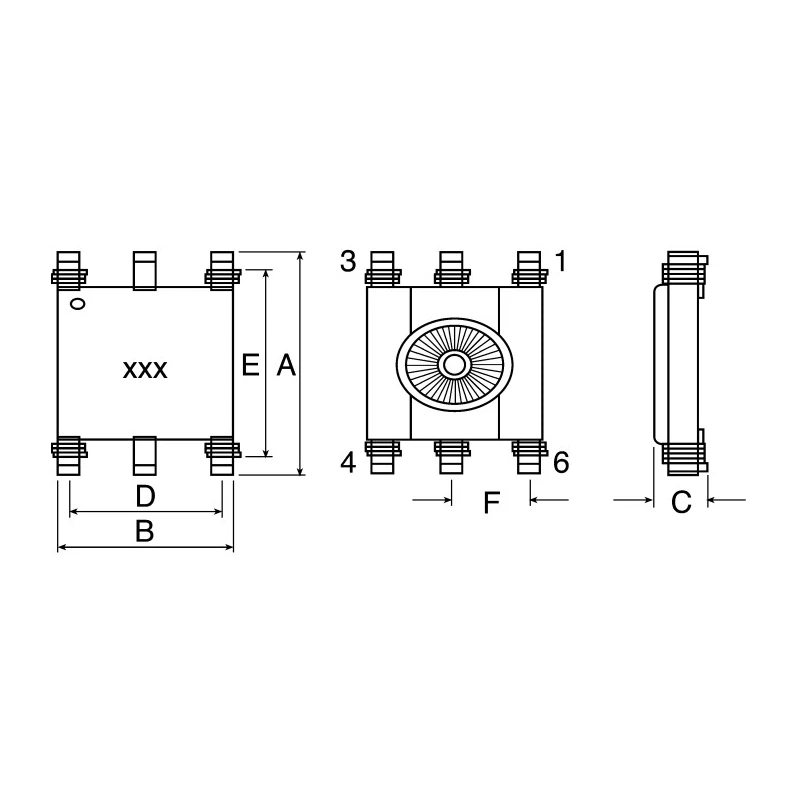

The filter utilizes a compact SFBW package measuring 9.2 mm in length, 6.6 mm in depth, and 2.5 mm in height, making it compatible with modern surface mount technology (SMT) PCB assemblies. It is rated with an inductance tolerance of -30 to +50 percent, providing flexibility across different designs.

Operating reliably from -40°C to 125°C, this component conforms to automotive standard AEC-Q200 and features an UL 94 V0 compliant housing for enhanced safety and durability. The termination style is surface mount, suitable for high volume automated manufacturing processes.

The component exhibits a maximum DC resistance of 250 mΩ, helping minimize power dissipation, with a maximum self-resonant frequency of 100 kHz, optimizing its filtering performance. The dual construction and ferrite core enable efficient suppression of common mode noise in CAN, USB, FireWire, data, and power line applications.

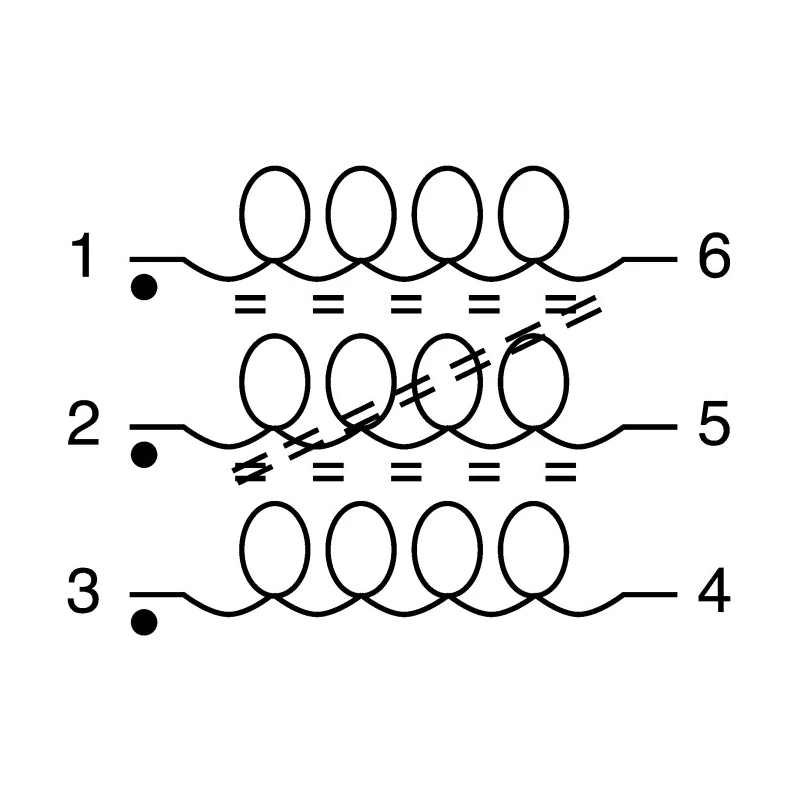

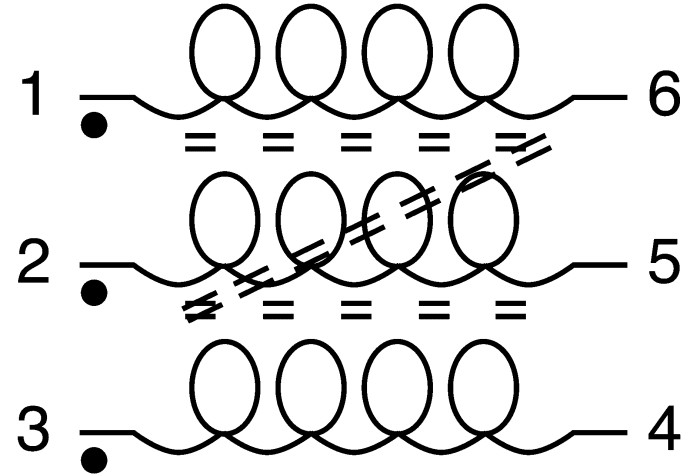

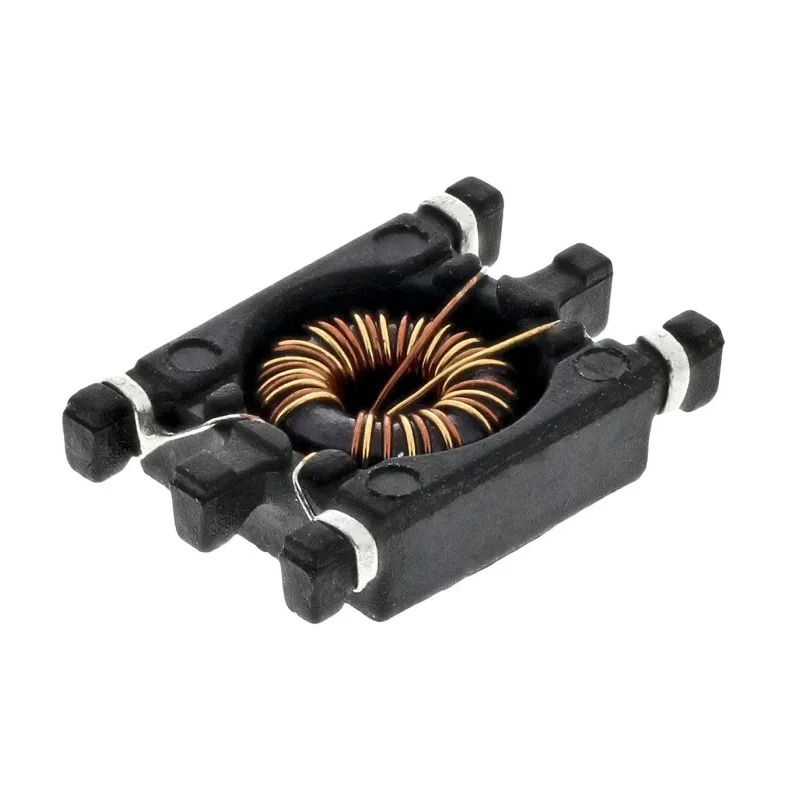

Provides dual inductance construction for effective noise suppression. Features a ferrite core to improve electromagnetic interference reduction. Compact SFBW package with dimensions 9.2 mm length, 6.6 mm depth, and 2.5 mm height.

Inductance tolerance varies between -30 to +50 percent for flexibility in different applications. Supports operating temperatures from -40°C up to 125°C for reliability in diverse environments. Complies with automotive standard AEC-Q200 and UL 94 V0 approved housing.

Surface mount termination style suitable for automated PCB assembly. Designed for use with CAN, USB, FireWire, data, and power lines to reduce common mode noise. Maximum DC resistance of 250 mΩ ensures low power loss during operation.

Maximum self-resonant frequency is 100 kHz enhancing performance in filtering circuits.

This surface mount common mode line filter by Wurth Elektronik is ideal for industrial electronic systems requiring EMI noise reduction and stable inductance characteristics. It is extensively used in automotive electronics, data transmission interfaces, and power line filtering applications.
