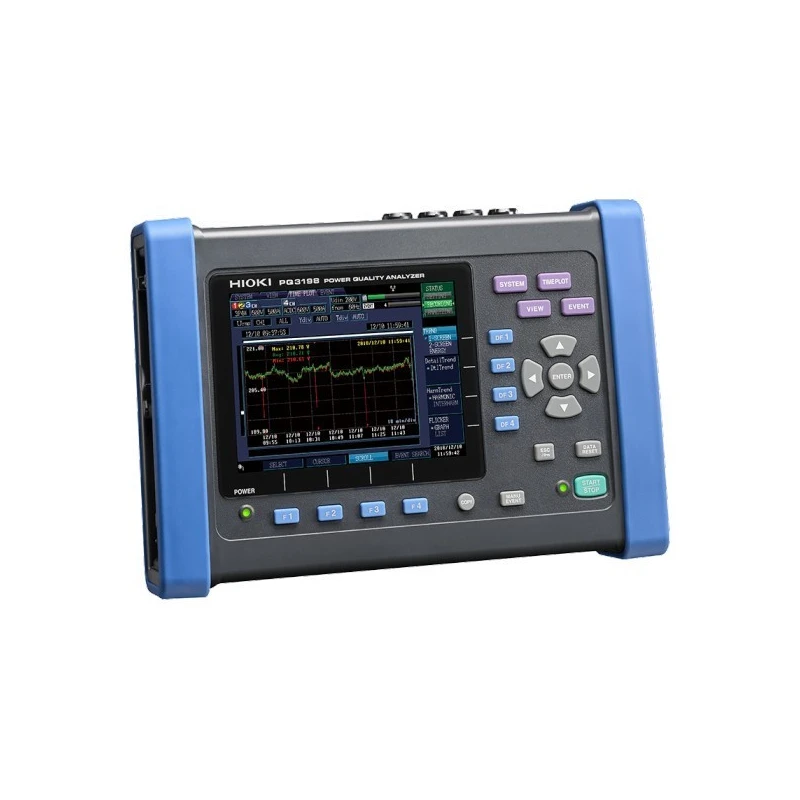

Hioki PQ-3198 Power Quality And Harmonics Analyzer
Specifications
| Display Type | Digital |
|---|---|
| Display | 6.5-inch TFT color LCD (640 x 480 dots) |
| Brand | HIOKI |
| Power | AC adapter Z1002 (100 V to 240 V AC50/60 Hzrated current 1.7 A)Battery Pack Z1003 (Continuous |
| Applications | Industrial Use |
| Model | Hioki PQ-3198 |
| Features | 1. Transient voltage 2 MHz sampling 2. Frequency cycl alculated as one cycle40 to 70 Hz 3. V |
| Voltage Voltage measurement | 600.00 V rms Transient measurement 6.0000 kV peak |
| Measurement line type | Single-phase 2-wireSingle-phase 3-wireThree-phase 3-wire or Three-phase 4-wire plus one extra in |
Key Features
- Verify power problems in accordance with the IEC61000-4-30 Edition 3 Class A standard
- High accuracy and continuous gapless recording (V: ±0.1% of nominal voltage, A: ±0.1% rdg. ±0.1% f.s., W: ±0.2% rdg. ±0.1% f.s.)
- Broadband voltage range lets you measure even high-order harmonic components of up to 80 kHz
- Maximum 6000 V peak transient voltage up to 700 kHz
Product Description
Hioki PQ-3198 Power Quality And Harmonics Analyzer, Hioki portable power meters, and analyzers are best in class power measuring instruments for measuring single to three-phase lines with a high degree of precision and accuracy. The new and improved PQ3198 is a power quality analyzer for monitoring and recording power supply anomalies, allowing their causes to be quickly investigated, and also for assessing power supply problems such as voltage drops, flicker, harmonics, and other electrical issues. New features include the ability to drive current sensors straight from the PQA and enhanced recording capabilities.
- Measure up to 6000 A AC
- Two systems of power measurement and efficiency calculation for (ch 1, ch 2, ch 3) and ch 4
- Make simple measurements of inverters with 40 to 70 Hz fundamental frequency and max. 20 kHz carrier frequency
- Easily create reports with bundled PQ ONE application software
- Optional GPS BOX for synchronizing multiple devices
