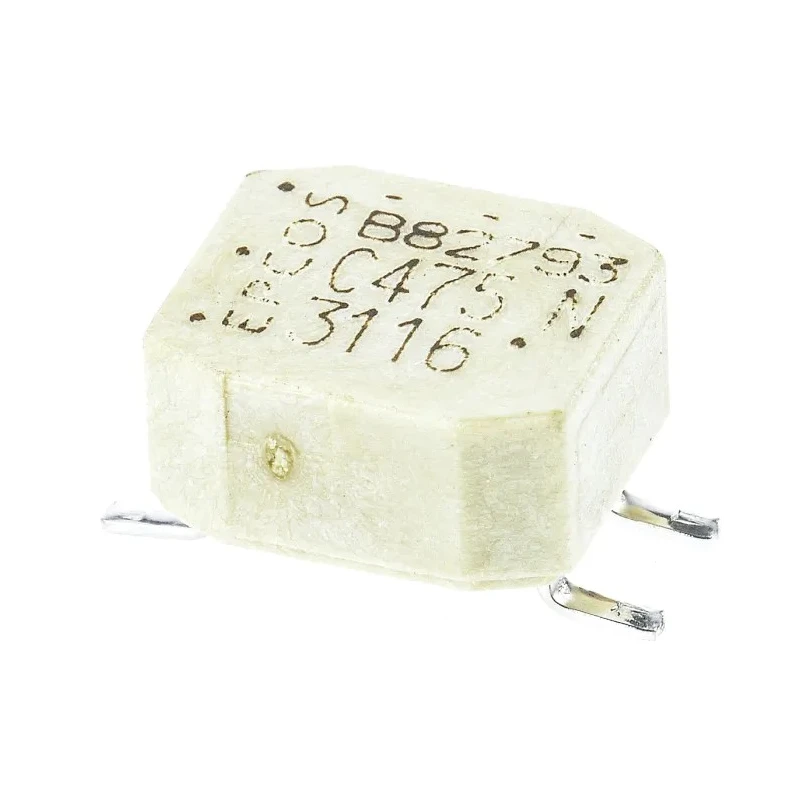

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 4.7 mH 400 mA Idc B82793C0475N265

Free Delivery in India | Lowest Global Shipping Charges

TDK Unshielded Surface Mount Common Mode Choke with Ferrite Core 4.7 mH 400 mA Idc B82793C0475N265



Category Surface Mount Inductors Brand TDK Condition New

Specifications

Country of Origin	India
Brand	TDK
Height	4.8mm
Length	9mm
Model	B82793C0475N265
Depth	6mm
Packaging	Tape & Reel
Series	B82793
Maximum Operating Temperature	125°C
Minimum Operating Temperature	-40°C
Core Material	Ferrite
Inductance	4.7mH
Standards/Approvals	RoHS
Maximum DC Current	400mA
Pin Count	2
Maximum DC Resistance	550mΩ
Inductance Tolerance	-30 to 50 %
Termination Style	Solder
Inductor Construction	Wirewound
Automotive Standard	AEC-Q200

Key Features

Current compensated ring core with ferrite core suitable for industrial use.
Bifilar winding for suppression of asymmetric interference.
Low component height with compact dimensions of 9 mm length and 4.8 mm height.
Flame retardant case complying with UL 94 V-0 standards.
Lead-free tinned terminals for solder termination.
AEC-Q200 automotive standard compliant ensuring quality and reliability.
Wide operating temperature range from -40°C to 125°C.
Inductance tolerance ranges from -30% to +50% for flexibility in circuit design.

Product Description

TDK B82793C0475N265 Unshielded Surface Mount Common Mode Choke is a wirewound inductor with a ferrite core, offering 4.7 mH inductance and designed to suppress electromagnetic interference in electronic circuits. The component's bifilar winding is optimized for asymmetric interference suppression, making it ideal for industrial electronic applications, including automotive environments compliant with AEC-Q200 standards.

This common mode choke features a compact design with dimensions of 9 mm length, 4.8 mm height, and 6 mm depth, facilitating easy integration into surface mount PCB layouts. The flame retardant case meets UL 94 V-0 requirements and the lead-free tinned terminals support reliable soldering. Operational temperature ranges from -40°C to 125°C ensure stable performance under harsh conditions.

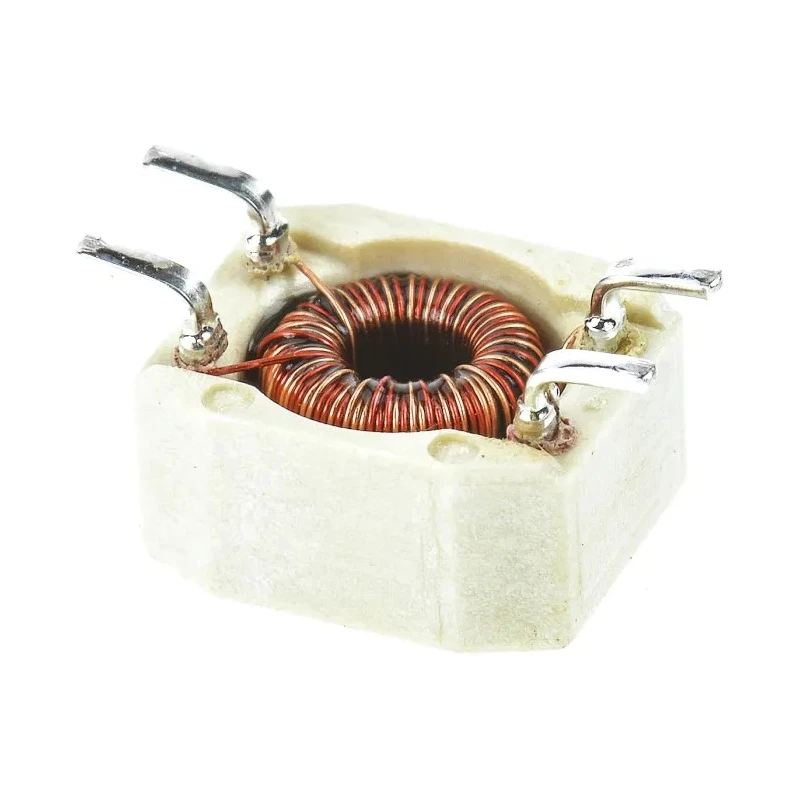

The B82793 series offers variants with different winding configurations; the C version specifically has a bifilar winding for enhanced suppression of asymmetric interference, reducing high-frequency EMC issues.

With a maximum DC current rating of 400 mA and low DC resistance of 550 mΩ, it provides efficient noise suppression while maintaining signal integrity. The inductance tolerance of -30% to +50% allows for flexibility depending on the specific circuit requirements.

This component supports industrial, automotive, and manufacturing use cases where electromagnetic compliance is critical, enhancing product reliability and performance. Current compensated ring core with ferrite core suitable for industrial use.

Bifilar winding for suppression of asymmetric interference. Low component height with compact dimensions of 9 mm length and 4.8 mm height. Flame retardant case complying with UL 94 V-0 standards. Lead-free tinned terminals for solder termination.

AEC-Q200 automotive standard compliant ensuring quality and reliability. Wide operating temperature range from -40°C to 125°C. Inductance tolerance ranges from -30% to +50% for flexibility in circuit design. Maximum DC current rating of 400 mA and maximum DC resistance of 550 mΩ.

RoHS compliant for environmental safety. Explore more Surface Mount Inductors in EnvMart’s Electronics Components category.
