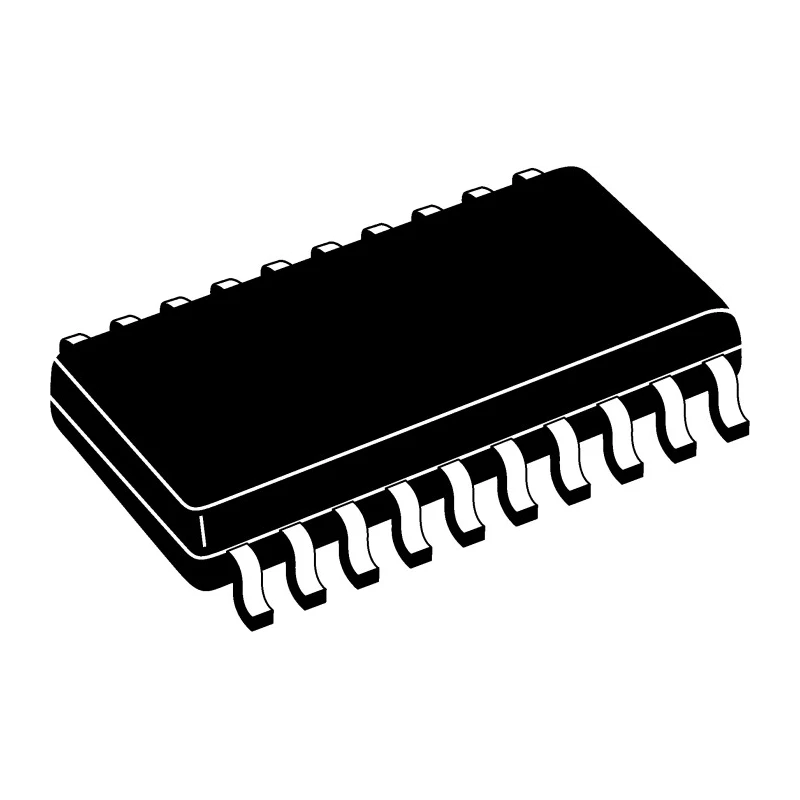

Texas Instruments 8-Bit Semi Flash ADC 667 ksps 20-Pin SOIC Surface Mount ADC0820CCWM/NOPB
Specifications
| Country of Origin | India |
|---|---|
| Resolution | 8 bit |
| Brand | Texas Instruments |
| Height | 2.64mm |
| Length | 13.01mm |
| Model | ADC0820CCWM/NOPB |
| Mount Type | Surface |
| Sampling rate | 667ksps |
| Series | ADC0820-N |
| Input Type | Voltage |
| Maximum Operating Temperature | 70°C |
| Package Type | SOIC |
| Minimum Operating Temperature | 0°C |
| Interface Type | Parallel |
| Architecture | Semi Flash |
| Pin Count | 20 |
| Minimum Supply Voltage | 5V |
| Number of ADCs | 1 |
Key Features
- Features a semi flash architecture for fast conversion.
- Operates with a single ADC channel.
- Supports 667 kilo samples per second sampling rate.
- Designed for surface mount applications with 20 pins.
- Input type is voltage with parallel interface for ease of integration.
- Operating temperature range is 0°C to 70°C for reliable performance.
- Minimum supply voltage is 5 volts ensuring stable operation.
- Compact dimensions with a length of 13.01 mm and height of 2.64 mm.
Product Description
Texas Instruments ADC0820CCWM/NOPB is an 8-bit analogue to digital converter featuring a semi flash architecture designed for high-speed conversion at 667 ksps. It is housed in a compact 20-Pin SOIC surface mount package, suitable for dense PCB layouts and modern electronic designs.
This ADC supports single-channel conversion with voltage input and parallel interface, making it ideal for embedded systems requiring fast and reliable digital data acquisition. Operating temperature range from 0°C to 70°C ensures dependable performance in typical industrial and commercial environments.
The converter requires a minimum supply voltage of 5 volts, which aligns with common digital system voltages, facilitating easy integration. Its small form factor, measuring 13.01 mm in length and 2.64 mm in height, allows usage in space-constrained applications.
Applications span across industrial automation, data acquisition systems, instrumentation, and control systems where precise and rapid analogue to digital conversion is critical. The product complies with environmental regulations such as RoHS, making it suitable for global market applications.
Features a semi flash architecture for fast conversion. Operates with a single ADC channel. Supports 667 kilo samples per second sampling rate. Designed for surface mount applications with 20 pins. Input type is voltage with parallel interface for ease of integration.
Operating temperature range is 0°C to 70°C for reliable performance. Minimum supply voltage is 5 volts ensuring stable operation. Compact dimensions with a length of 13.01 mm and height of 2.64 mm. Complies with RoHS standards excluding any hazardous substances.
This Texas Instruments ADC0820CCWM/NOPB model is widely used in electronics manufacturing, industrial instrumentation, laboratory equipment, and embedded systems development. Choose from a comprehensive range of Analogue to Digital Converters at EnvMart for your industrial and laboratory requirements.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model supports a maximum sampling rate of 667 kilo samples per second (ksps).
It accepts voltage as the input type, facilitating easy integration into various systems.
The operating temperature range is from 0°C to 70°C, ensuring reliable performance in typical environments.
This unit has a resolution of 8 bits, allowing for digital representation of analogue signals.
It operates with a single ADC channel, making it suitable for applications requiring straightforward data acquisition.
The dimensions are 13.01 mm in length and 2.64 mm in height, allowing for compact integration into designs.
It comes in a 20-Pin SOIC surface mount package, suitable for dense PCB layouts.
The minimum supply voltage required is 5 volts, which is compatible with common digital system voltages.
It uses a parallel interface, which simplifies integration with other components in a system.
It features a semi flash architecture, enabling fast conversion rates.
Yes, it complies with RoHS standards, which restrict the use of hazardous substances.
It is suitable for applications in industrial automation, data acquisition systems, instrumentation, and control systems.
