TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 6.8 μH ±20% 2.05 A Idc B82472G4682M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3.3mm |
| Length | 7.3mm |
| Model | B82472G4682M000 |
| Depth | 7.3mm |
| Packaging | Tape & Reel |
| Series | B82472-G4 |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 6.8μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 2.05A |
| Pin Count | 2 |
| Maximum DC Resistance | 55mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Inductor Construction | Wirewound |
Key Features
- Constructed with a magnetically shielded ferrite core and enamel copper wire winding soldered to terminals.

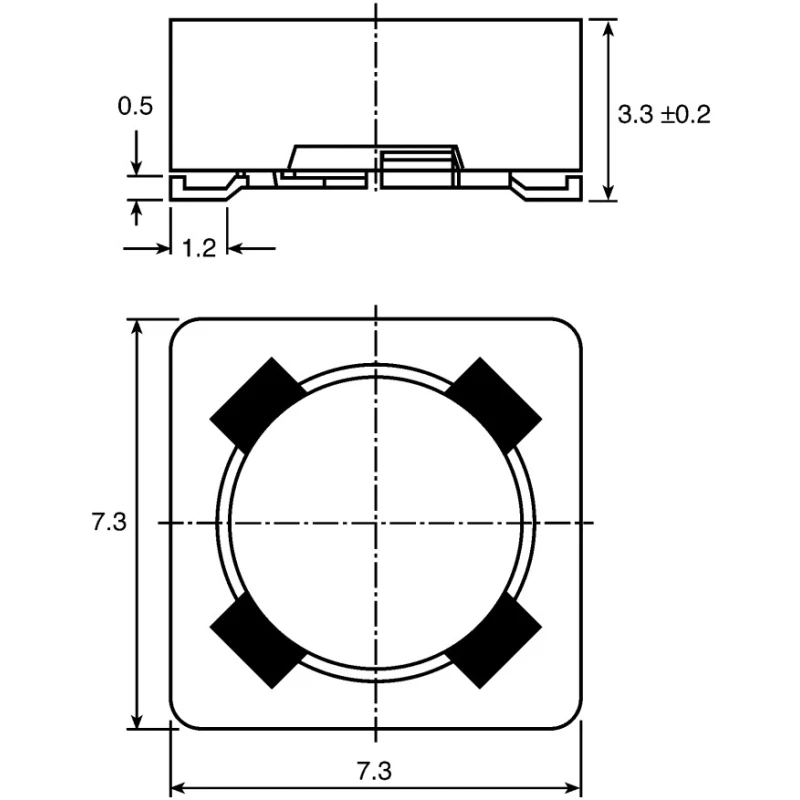

- Surface mount package with dimensions 7.3 mm length, 3.3 mm height, and 7.3 mm depth.
- Maximum DC resistance of 55 mΩ ensures efficient performance.
- Operates within a temperature range of -55°C to 125°C for reliable use.
- Complies with RoHS standards and uses leadfree tinned solder termination.
- Packaging supplied on tape and reel for automated assembly.
- Suitable for applications including filtering of supply voltages, DC-DC converters, and automotive electronics.
- Offers durable wirewound inductor construction for industrial and electronic component uses.
Product Description
TDK B82472G4682M000 shielded wirewound surface mount inductor with a ferrite core delivers a precise 6.8 μH inductance with a tolerance of ±20% and supports a maximum DC current of 2.05 A. This inductor is designed for use in electronics components where magnetic shielding and efficient filtering are required.
The device’s compact footprint, measuring 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth, makes it ideal for surface mounting on printed circuit boards. It features a magnetically shielded ferrite core combined with enamel copper wire winding soldered to its terminals, ensuring reliable operation and electrical performance.
With a maximum DC resistance of 55 milliohms, this inductor minimizes power losses while supporting continuous operation from -55°C to 125°C, thereby guaranteeing durability over a wide temperature range. The lead-free tinned terminals and RoHS compliance align with modern manufacturing and environmental standards.
Packaged on tape and reel, the inductor supports high-volume production techniques and automated insertion for electronic manufacturing. Typical applications include filtering supply voltages, use in DC-DC converters, and in automotive electronic systems where precise inductance and shielding from electromagnetic interference are critical.
Magnetically shielded ferrite core with enamel copper wire winding for stable inductance. Compact surface mount design suitable for automated PCB assembly. Maximum DC current rating of 2.05 A with low resistance losses. Wide operational temperature range from -55°C to 125°C.
Lead-free tinned solder termination compliant with RoHS standards. Ideal for filtering, DC-DC conversion, and automotive electronics. Packaged tape and reel for ease of mass assembly.
This high-quality surface mount inductor from TDK is well-suited for industrial, automotive, and commercial electronic applications. Explore more in the Surface Mount Inductors category on EnvMart to find compatible and complementary components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 6.8 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 2.05 A.
The inductor measures 7.3 mm in length, 3.3 mm in height, and 7.3 mm in depth.
It has a maximum DC resistance of 55 mΩ, which helps minimize power losses during operation.
This inductor operates within a temperature range of -55°C to 125°C.
It features a ferrite core, which aids in magnetic shielding and efficient performance.
The inductor is packaged on tape and reel, making it suitable for automated assembly processes.
This model uses a lead-free tinned solder termination style, compliant with RoHS standards.
It is suitable for applications including filtering of supply voltages, DC-DC converters, and automotive electronics.
This inductor has a pin count of 2.
This model belongs to the B82472-G4 series of inductors.
The country of origin for this inductor is India.
