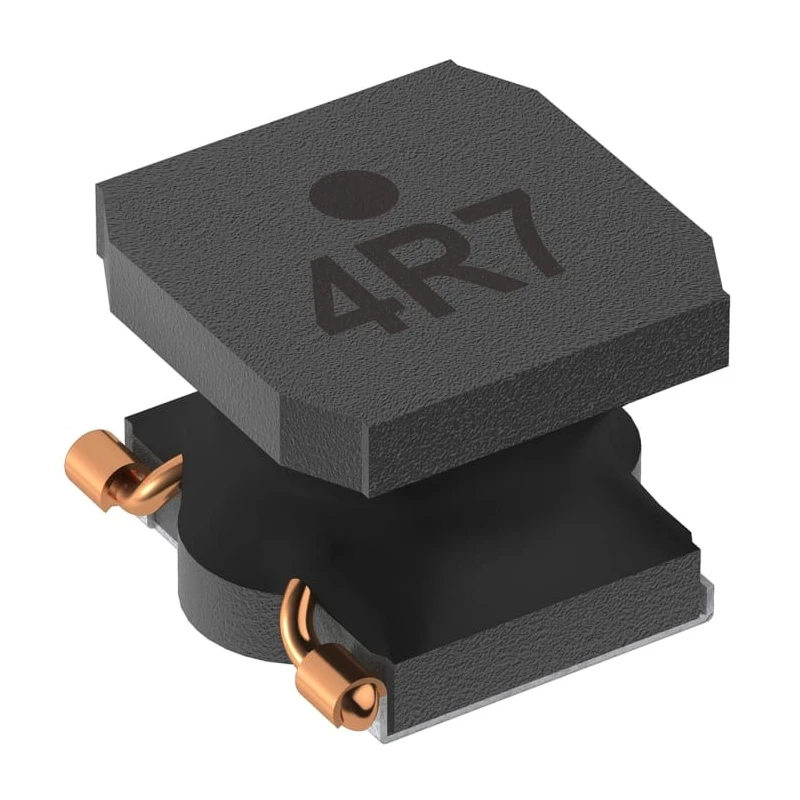

TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 4.7 μH ±20% 3.2 A IDC VLS5045EX-4R7M
Specifications
| Country of Origin | Korea |
|---|---|
| Brand | TDK |
| Height | 4.5mm |
| Length | 5mm |
| Model | VLS5045EX-4R7M |
| Depth | 5mm |
| Series | VLS-EX |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Core Material | Ferrite |
| Inductance | 4.7μH |
| Standards/Approvals | RoHS |
| Package/Case | 5045 |
| Maximum DC Current | 3.2A |
| Pin Count | 2 |
| Maximum DC Resistance | 36mΩ |
| Inductance Tolerance | ±20 % |
| Termination Style | Surface Mount |
| Inductor Construction | Wirewound |
Key Features
- Magnetically shielded ferrite core ensures minimal leakage and interference.
- Compact 5045 package size with 5 mm length and 4.5 mm height.
- Wirewound construction for stable inductance and current handling.
- Operates in temperature range from -40°C to 105°C.
- Low maximum DC resistance of 36 mΩ for efficient performance.
- Surface mount termination style compatible with high-density PCB assembly.
- RoHS compliant with molded ferrite core design.
- Suitable for power circuits in TVs, audiovisual equipment, set-top boxes, and game devices.
Product Description
TDK VLS5045EX-4R7M shielded wirewound surface mount inductor features a 4.7 μH inductance with ±20% tolerance and a maximum DC current rating of 3.2 A. Designed with a ferrite core, this inductor provides high magnetic shielding for power circuit applications requiring low interference and efficient current handling.
The inductor uses a compact 5045 package measuring 5 mm in length, 4.5 mm in height, and 5 mm in depth, delivered with surface mount termination style suitable for automated PCB assembly. Its wirewound construction ensures stability and durability under electrical load.
Operating temperature ranges from -40°C to 105°C, making it reliable for use in harsh environments. With a low maximum DC resistance of 36 mΩ, the inductor maintains energy efficiency and reduces heat generation.
This product is RoHS compliant, with molded ferrite construction, and incorporates 2 pins for surface mounting. It is ideal for usage in various industrial and commercial applications including televisions, audiovisual equipment, set-top boxes (STBs), and gaming devices.
Country of Origin is Korea, Republic Of, ensuring quality manufacturing standards. The VLS5045 series inductors are optimized for higher current capacity and low resistance through ferrite core engineering, suitable for power circuit magnetic shielding needs.
Magnetically shielded ferrite core ensures minimal leakage and interference. Compact 5045 package size with 5 mm length and 4.5 mm height. Wirewound construction for stable inductance and current handling. Operates in temperature range from -40°C to 105°C.
Low maximum DC resistance of 36 mΩ for efficient performance. Surface mount termination style compatible with high-density PCB assembly. RoHS compliant with molded ferrite core design. Suitable for power circuits in TVs, audiovisual equipment, set-top boxes, and game devices.
Explore the wide range of Surface Mount Inductors at EnvMart for enhanced power circuit design and industrial electronics applications.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 4.7 μH with a tolerance of ±20%.
The maximum DC current rating for this inductor is 3.2 A.
The package dimensions are 5 mm in length, 4.5 mm in height, and 5 mm in depth.
It operates within a temperature range of -40°C to 105°C.
This inductor features a surface mount termination style, suitable for high-density PCB assembly.
The maximum DC resistance is 36 mΩ, which contributes to its efficient performance.
It has a ferrite core and is constructed using a wirewound method.
Yes, the inductor is RoHS compliant, indicating it meets environmental standards for hazardous substances.
The VLS5045EX-4R7M has 2 pins for surface mounting.
It is suitable for power circuits in televisions, audiovisual equipment, set-top boxes, and gaming devices.
The country of origin for this inductor is Korea, Republic Of.
This inductor belongs to the VLS-EX series, optimized for higher current capacity and low resistance.
