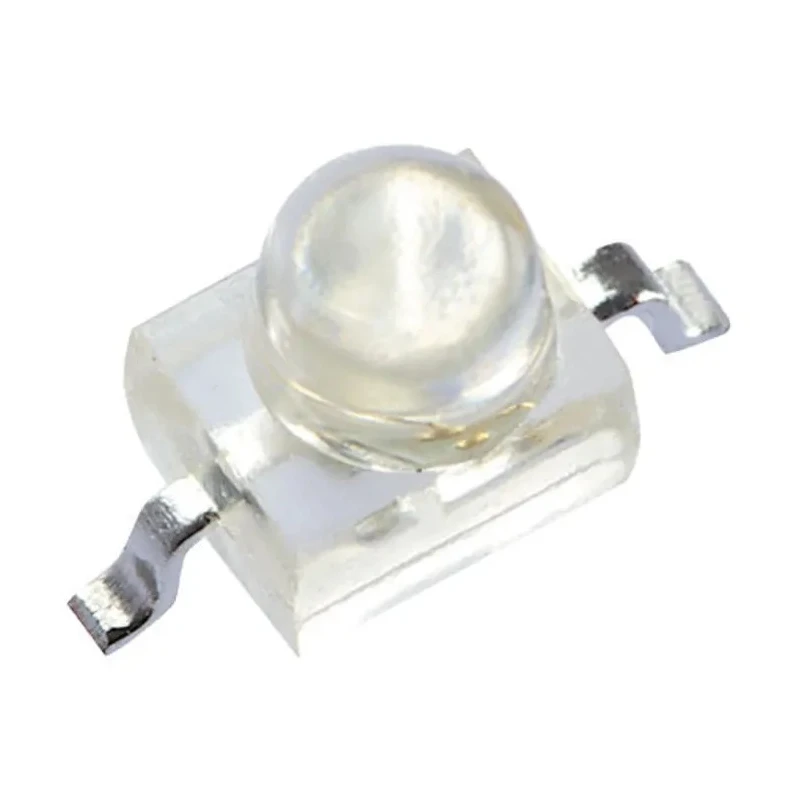

Kingbright 2.5 V Red LED Subminiature Surface Mount, 160mA Forward Current, 105mW Power KM2520EC03

Kingbright KM2520EC03 is a red LED featuring a subminiature surface mount package designed for compact electronic component applications. With a forward voltage of 2.5 V and maximum forward current of 160mA, it is optimized for low power consumption while delivering a 100 millicandela luminous intensity. The dome-shaped clear lens enhances light output with a wide 20 degree viewing angle, suitable for indicators and display lighting.

Constructed for reliable long life and solid state durability, the KM2520 series LEDs come with various lead types including gull-wing, yoke, and z-bend suitable for tape and reel packaging to support high volume manufacturing processes. The lens dimensions of 2.5 x 2 x 2.8 mm and the package’s low profile make it ideal for surface mount technology in electronic assemblies.

This LED emits light at a dominant wavelength of 617nm, producing a vivid red color that meets RoHS standards, ensuring compliance with environmental directives. It is widely used in industrial, consumer electronics, and display applications where compact high-quality indicator lights are needed.

Compact subminiature package design with dome lens. Low forward voltage and power dissipation for energy efficiency. Multiple lead form options for versatile PCB mounting. High brightness 100 mcd luminosity at 617nm wavelength.

Reliable and long-lasting solid state LED technology. Efficient tape and reel packaging for automated assembly. RoHS compliant to meet regulatory requirements.

This Kingbright KM2520EC03 LED is an essential component for electronics manufacturers seeking high quality, efficient red indicator LEDs compatible with surface mount assembly techniques. For more products in the LED category and other electronic components, explore the comprehensive selection available at EnvMart.
