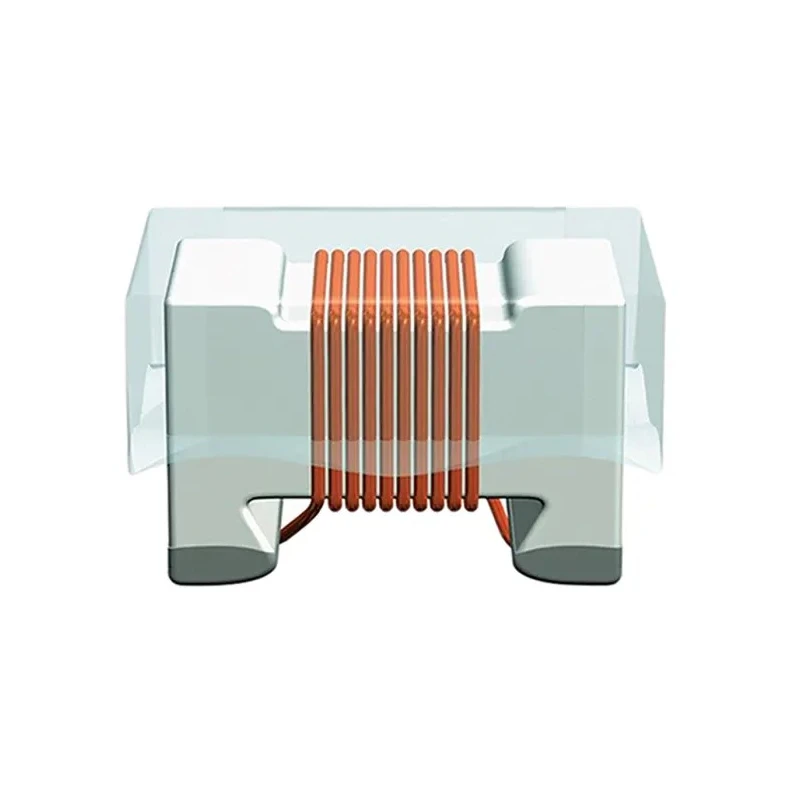

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor with Ferrite Core, 1 μH ±5%, 240 mA Idc, Q:20 B82498F1102J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F1102J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 1μH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 240mA |
| Pin Count | 2 |
| Maximum DC Resistance | 550mΩ |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 440MHz |
| Minimum Quality Factor | 20 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Unshielded wirewound construction with ferrite core enhances inductive performance.
- Rated for a maximum DC current of 240 mA suitable for various circuit applications.
- Compact 0805 package size with dimensions 2.3 x 1.7 x 1.45 mm for PCB surface mounting.
- Operates reliably in a temperature range from -55°C to 125°C compliant with AEC-Q200 automotive standards.
- RoHS compliant ensuring environmental safety and sustainability.
- High quality factor (Q) rating of 20 at maximum self resonant frequency of 440 MHz.
- Solder termination style for secure and efficient PCB assembly.
- Epoxy moulded for mechanical strength and vacuum pickup compatibility.
Product Description
TDK B82498F1102J000 is a precision SIMID series unshielded wirewound surface mount inductor featuring a ferrite core with an inductance of 1 μH and tight tolerance of ±5%. Designed for use in advanced electronic manufacturing, it offers a reliable maximum DC current rating of 240 mA and outstanding Q factor of 20, making it suitable for RF and power conditioning circuits.
The compact 0805 package (2.3 x 1.7 x 1.45 mm) ensures minimal PCB footprint, while its epoxy moulded design allows for automated vacuum pickup and solder termination for consistent mounting quality. This inductor is engineered to withstand operating temperatures from -55°C to 125°C, meeting the stringent AEC-Q200 automotive qualification.
The wirewound construction with a ferrite core delivers excellent inductive stability and performance in demanding industrial, automotive, and electronic equipment applications including power supplies, signal filtering, and noise suppression.
This component is RoHS certified, supporting green manufacturing processes. Its high self-resonant frequency of 440 MHz facilitates efficient operation in high-frequency environments and the 2-pin configuration simplifies circuit integration.
Unshielded wirewound construction with ferrite core optimizes signal quality and inductance. 240 mA max DC current rating suits diverse electronic design requirements. Compact 0805 case size minimizes PCB space usage. Wide operating temperature range ensures durability under harsh automotive and industrial conditions.
High Q factor of 20 guarantees low loss and effective frequency response. Epoxy moulding enhances mechanical robustness and compatibility with automated assembly. Solder termination provides reliable electrical and mechanical connection on PCBs.
Complies with RoHS environmental standards for safe manufacturing and disposal. Ideal for industrial electronics, automotive circuits, commercial power modules, and advanced laboratory equipment requiring precise inductance control.
Explore more Surface Mount Inductors and passive components at EnvMart for your professional and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 1 μH with a tolerance of ±5%.
The maximum DC current rating for this inductor is 240 mA.
The dimensions of this inductor are 2.3 x 1.7 x 1.45 mm.
It operates reliably within a temperature range of -55°C to 125°C.
The maximum self-resonant frequency is 440 MHz.
This inductor features a wirewound construction with a ferrite core.
The inductor has a minimum quality factor (Q) rating of 20.
It uses a solder termination style for secure PCB assembly.
Yes, it is RoHS compliant, ensuring environmental safety and sustainability.
This model has a pin count of 2.
The inductor is packaged in tape and reel format for easy handling and assembly.
It complies with the AEC-Q200 automotive standard.
