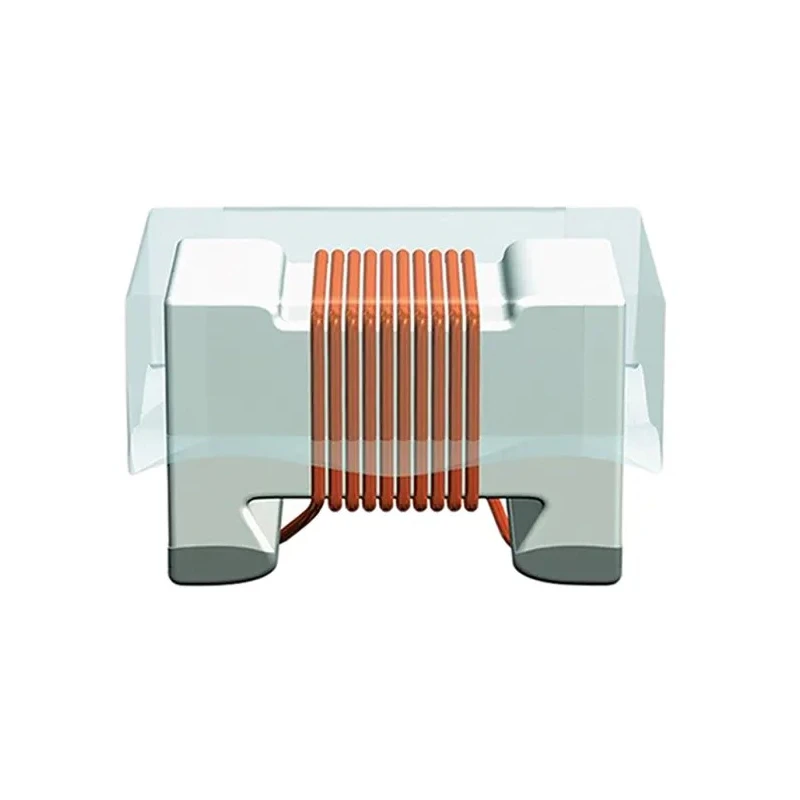

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 330nH ±5% 220mA Idc Q:45 B82498F3331J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 2.3 x 1.7 x 1.45mm |
| Height | 1.4mm |
| Length | 2.3mm |
| Model | B82498F3331J000 |
| Depth | 1.7mm |
| Operating Temp | -55°C → +125°C |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 125°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ceramic |
| Inductance | 330nH |
| Standards/Approvals | RoHS |
| Package/Case | 0805 |
| Maximum DC Current | 220mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 800MHz |
| Minimum Quality Factor | 45 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Wirewound construction with a ceramic core ensures high performance.
- Package size 0805 allows surface mounting on various electronic assemblies.
- Maximum DC resistance is 1.5Ω for efficient current handling.
- Operates reliably between -55°C to 125°C with AEC-Q200 automotive standard compliance.
- High-quality factor of 45 and self resonant frequency of 800MHz for superior signal integrity.
- Moulded epoxy flat top design facilitates vacuum pickup in automated assembly.
- Termination style is solder-compatible for robust electrical connections.
- Packaged in tape and reel for seamless manufacturing processes.
Product Description
TDK's SIMID series model B82498F3331J000 is an 0805 unshielded wirewound surface mount inductor designed with a ceramic core providing an inductance of 330nH with a ±5% tolerance. This compact component is ideal for a wide range of industrial and electronic applications requiring reliable inductance in small form factors.
The inductor supports a maximum DC current of 220mA and maintains a maximum DC resistance of 1.5Ω, ensuring efficient current flow and minimal power loss. It features a high quality factor of 45, which enhances signal quality by minimizing losses at frequencies up to its maximum self-resonant frequency of 800MHz.
Designed according to the AEC-Q200 automotive standard, it guarantees stable operation over an extended temperature range from -55°C to +125°C, suitable for demanding automotive and industrial environments.
The device is moulded with epoxy and has a flat top for easy vacuum pickup during automated PCB assembly. The termination style uses solder-compatible contacts facilitating secure mounting and solder connections. Package dimensions measure 2.3mm length by 1.7mm depth and 1.4mm height, compliant with the 0805 case standard.
Packaged in tape and reel form, it supports high-efficiency manufacturing workflows. Its wirewound construction on a ceramic core delivers durability and stable electrical characteristics. This inductor is widely used in power supply circuits, signal processing, filtering, and automotive electronics.
Wirewound construction with ceramic core for durable inductance. Compact 0805 package suitable for surface mounting. Rated for 220mA max DC current with low resistance. AEC-Q200 automotive standard enables automotive applications.
Wide operating temperature -55°C to 125°C. High quality factor and resonant frequency support high-frequency circuits. Epoxy moulded flat top design for automated assembly systems. Tape and reel packaging for efficient mass production.
Explore our electronics components category for more Surface Mount Inductors and passive components suitable for industrial, automotive, and commercial electronics manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductance value of this model is 330nH with a tolerance of ±5%.
It supports a maximum DC current of 220mA.
This unit operates reliably between -55°C and +125°C.
The maximum DC resistance is 1.5Ω, ensuring efficient current handling.
The maximum self-resonant frequency is 800MHz, which supports high-frequency applications.
The dimensions of the package are 2.3mm in length, 1.7mm in depth, and 1.4mm in height, compliant with the 0805 case standard.
It features a ceramic core, which contributes to its performance characteristics.
This model has a minimum quality factor of 45, enhancing signal integrity.
The termination style is solder-compatible, facilitating secure electrical connections.
It is packaged in tape and reel form, supporting efficient manufacturing processes.
It complies with the AEC-Q200 automotive standard, making it suitable for automotive applications.
This inductor is widely used in power supply circuits, signal processing, filtering, and automotive electronics.
