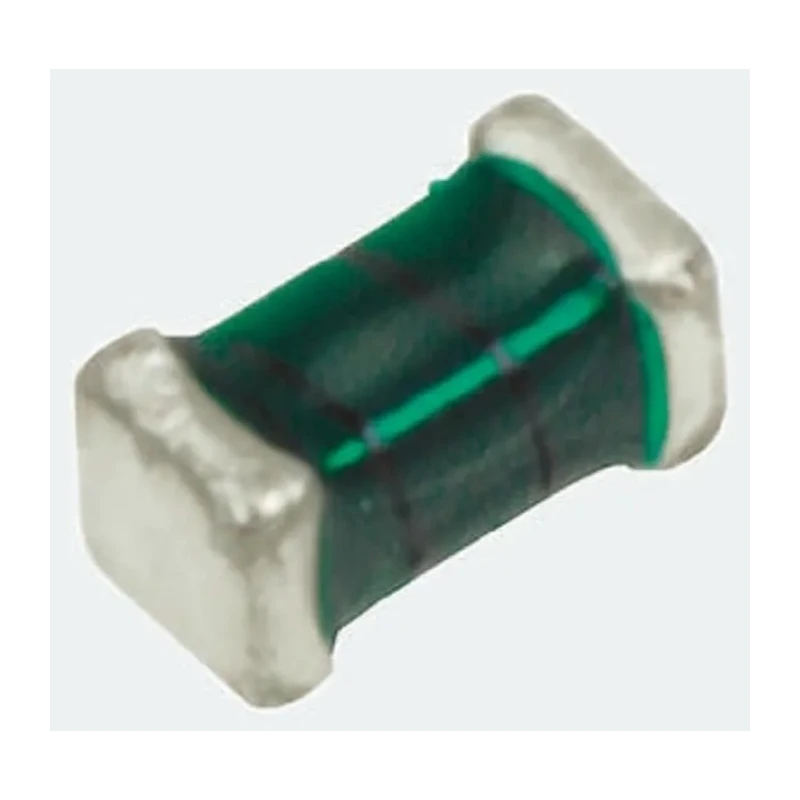

TDK SIMID 0603 Wirewound Surface Mount Inductor 150 nH ±5% 130 mA Idc Q:5 B82496C3151J000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Dimensions | 1.6 x 0.8 x 0.8mm |
| Height | 0.8mm |
| Length | 1.6mm |
| Model | B82496C3151J000 |
| Depth | 0.8mm |
| Packaging | Tape & Reel |
| Series | SIMID |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Copper Plated Ceramic |
| Inductance | 150nH |
| Standards/Approvals | RoHS |
| Package/Case | 0603 |
| Maximum DC Current | 130mA |
| Maximum DC Resistance | 5Ω |
| Inductance Tolerance | ±5 % |
| Termination Style | Surface Mount |
| Maximum Self Resonant Frequency | 1.6GHz |
| Minimum Quality Factor | 5 |
| Inductor Construction | Wirewound |
| Automotive Standard | AEC-Q200 |
Key Features
- Features a copper plated ceramic core for enhanced conductivity.
- Compact 0603 package/case size measuring 1.6 x 0.8 x 0.8 mm.
- Maximum DC current rating of 130 mA supports efficient current handling.
- Maintains stability across a wide operating temperature range from -55°C to 150°C.
- Inductor construction is wirewound ensuring high mechanical stability.
- Meets Automotive Standard AEC-Q200 for automotive applications.
- Provides maximum DC resistance of 5 ohms and self-resonant frequency of 1.6 GHz.
- Minimum quality factor of 5 enhances signal quality in electronic devices.
Product Description
TDK B82496C3151J000 is a 0603 size wirewound surface mount inductor featuring a copper plated ceramic core designed for high resonance frequency and mechanical stability. This inductor has an inductance value of 150 nH with a tolerance of ±5%, making it suitable for precise electronic circuit applications requiring compact components.
The device supports a maximum direct current of 130 mA and operates reliably over a temperature range from -55°C to 150°C, complying with stringent Automotive Standard AEC-Q200. Its electrical characteristics include a maximum DC resistance of 5 ohms and a maximum self-resonant frequency of 1.6 GHz, ensuring superior performance in RF and high-frequency circuits.
With dimensions of 1.6 mm length, 0.8 mm height, and 0.8 mm depth, this inductor is ideal for dense PCB layouts in industrial, automotive, consumer electronics, and communication devices. The wirewound construction enhances the quality factor, providing a minimum Q of 5, which improves signal integrity in filters and tuning circuits.
Packaged in tape and reel format, it facilitates efficient automatic insertion in high-volume manufacturing, contributing to improved production throughput. The RoHS compliant design conforms to environmental regulations, making it an eco-friendly choice for advanced electronics manufacturing.
Features a copper plated ceramic core for enhanced conductivity. Compact 0603 package/case size measuring 1.6 x 0.8 x 0.8 mm. Maximum DC current rating of 130 mA supports efficient current handling. Maintains stability across a wide operating temperature range from -55°C to 150°C.
Inductor construction is wirewound ensuring high mechanical stability. Meets Automotive Standard AEC-Q200 for automotive applications. Provides maximum DC resistance of 5 ohms and self-resonant frequency of 1.6 GHz. Minimum quality factor of 5 enhances signal quality in electronic devices.
Packaged in tape and reel format for automated PCB assembly processes.
This Surface Mount Inductor suits a wide range of industrial, automotive, telecommunications, and consumer electronics applications requiring reliable inductive components with precise electrical and mechanical characteristics.
Explore more inductors and related passive electronic components in the Electronics & Electricals category at EnvMart for your design and production needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The inductor has an inductance value of 150 nH with a tolerance of ±5%.
It supports a maximum DC current rating of 130 mA, allowing for efficient current handling.
The dimensions are 1.6 mm in length, 0.8 mm in height, and 0.8 mm in depth.
It operates reliably over a wide temperature range from -55°C to 150°C.
The maximum self-resonant frequency is 1.6 GHz, making it suitable for high-frequency applications.
The inductor features a wirewound construction, ensuring high mechanical stability.
Yes, it meets the Automotive Standard AEC-Q200, making it suitable for automotive applications.
The maximum DC resistance is 5 ohms, which contributes to its electrical performance.
It is packaged in tape and reel format, facilitating efficient automatic insertion in high-volume manufacturing.
The inductor features a copper plated ceramic core for enhanced conductivity.
It has a minimum quality factor of 5, which enhances signal quality in electronic devices.
The country of origin for this inductor is India.
