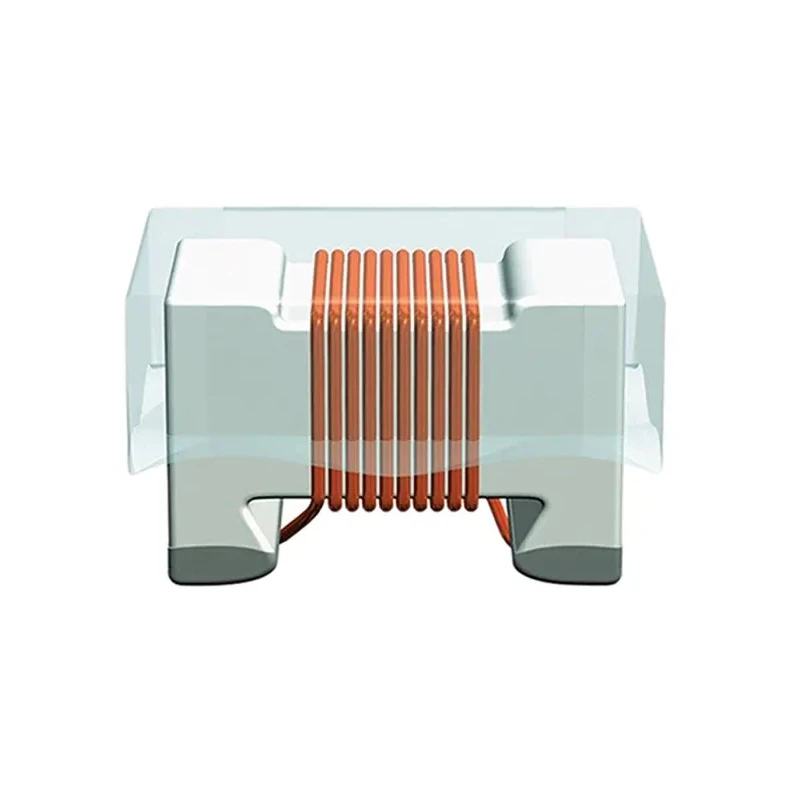

TDK SIMID 0805 Unshielded Wirewound Surface Mount Inductor with Ceramic Core 100 nH ±5% 450 mA Idc Q:55 B82498F3101J000

TDK B82498F3101J000 is a high-quality SIMID Series wirewound surface mount inductor with a ceramic core designed for electronic component applications requiring compact size and reliable inductance performance. With an inductance of 100 nH and a tolerance of ±5%, this unshielded inductor supports a maximum DC current rating of 450 mA and is tailored for demanding industrial and automotive uses due to its AEC-Q200 certification.

Its compact 0805 package (measuring 2.3 x 1.7 x 1.45 mm) makes it ideal for dense printed circuit board layouts, offering excellent performance with a low DC resistance of 280 milliohms. The inductor construction features a cubic coil with a ceramic core and an epoxy moulded flat top optimized for vacuum pickup in automated manufacturing environments.

Operating efficiently within a temperature range of -55°C to +125°C, this inductor delivers a high quality factor of at least 55 coupled with a maximum self-resonant frequency of 1.35 GHz, ensuring minimal signal losses at high frequencies. It has two solder termination pins suitable for robust PCB attachment and is compliant with RoHS environmental standards.

Compact size supports high-density surface mount applications. Ceramic core enhances thermal and electrical stability. Wirewound construction provides precise inductance value. Meets automotive-grade reliability with AEC-Q200 standards.

High maximum self-resonant frequency for radiofrequency use cases. Epoxy moulding enhances mechanical durability and facilitates automated handling. RoHS compliance ensures environmentally friendly manufacturing. Reliable operation over a wide temperature range.

Packaging in tape and reel format supports efficient assembly processes. Suitable for industrial, automotive, telecommunications, and consumer electronics applications.

The TDK SIMID B82498F3101J000 inductor is widely utilized across industrial manufacturing, automotive electronic systems, telecommunications equipment, and other high-frequency electronic assemblies requiring precise magnetic components. Its combination of compact size, robust construction, and compliance with stringent standards makes it an excellent choice for demanding Surface Mount Inductor applications.
