TDK Shielded Wirewound Surface Mount Inductor with Ferrite Core 220μH ±20% 350mA Idc B82462G4224M000
Specifications
| Country of Origin | India |
|---|---|
| Brand | TDK |
| Height | 3mm |
| Length | 6.3mm |
| Model | B82462G4224M000 |
| Depth | 6.3mm |
| Packaging | Tape & Reel |
| Series | B82462-G4 |
| Maximum Operating Temperature | 150°C |
| Minimum Operating Temperature | -55°C |
| Core Material | Ferrite |
| Inductance | 220μH |
| Standards/Approvals | RoHS |
| Maximum DC Current | 350mA |
| Pin Count | 2 |
| Maximum DC Resistance | 1.35Ω |
| Inductance Tolerance | ±20 % |
| Termination Style | Solder |
| Maximum Self Resonant Frequency | 5.5MHz |
| Inductor Construction | Wirewound |
Key Features
- Features a ferrite core construction for magnetic shielding.

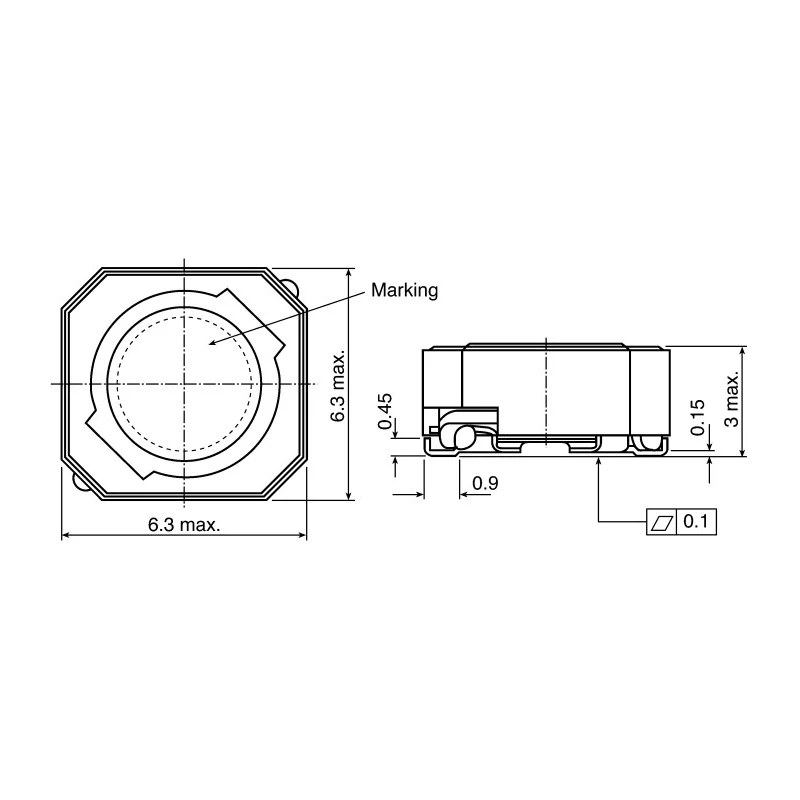

- Compact SMT size of 6.3mm length, 3mm height, and 6.3mm depth.
- Maximum DC resistance of 1.35Ω ensuring low power loss.
- Wide operating temperature range from -55°C to 150°C.
- Rated for a maximum self-resonant frequency of 5.5MHz.
- Constructed with wirewound enamel copper wire for durability.
- Suitable for reflow soldering in assembly processes.
- Complies with RoHS standards ensuring environmental safety.
Product Description
TDK B82462G4224M000 shielded wirewound surface mount inductor features a ferrite core providing effective magnetic shielding suitable for electronic component assemblies. This inductor offers an inductance value of 220μH with an inductance tolerance of ±20% and supports a maximum DC current of 350mA. Its wirewound construction using enamel copper wire ensures reliable performance in power supply filtering applications.
The component conforms to RoHS standards and is designed for surface mount technology (SMT) with a compact size of 6.3mm length, 3mm height, and 6.3mm depth. It exhibits a maximum DC resistance of 1.35Ω and a maximum self-resonant frequency of 5.5MHz, supporting robust operation across a wide temperature range from -55°C to 150°C. The termination style is solder, and the product is moulded for mechanical stability.
This inductor series B82462-G4 is ideal for use in electronic circuits requiring magnetically shielded wire wound chokes. It is well suited for industrial, electronics manufacturing, power supply filtering, and telecommunications applications. The product is supplied in tape and reel packaging, facilitating automated insertion and soldering processes.
Features a ferrite core for efficient magnetic shielding and reduced EMI. Wirewound enamel copper wire construction for durability and performance. Wide temperature tolerance supports harsh operating environments. Compact SMT package optimized for miniature electronic assemblies.
RoHS compliant, suitable for environmentally conscious applications. Packaged on tape and reel for automated PCB assembly lines. Supports reliable current handling up to 350mA DC. Low DC resistance minimizes energy losses during operation.
Constructed and tested to meet industrial electronic component standards.
This TDK surface mount inductor is a key component for electronics designers requiring compact, reliable inductors with magnetic shielding in consumer electronics, automotive electronics, industrial machinery, and communication equipment. Explore more electronics components and Surface Mount Inductors at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This model has an inductance value of 220μH with an inductance tolerance of ±20%.
It supports a maximum DC current of 350mA.
The inductor has a compact size of 6.3mm in length, 3mm in height, and 6.3mm in depth.
The maximum DC resistance is 1.35Ω, ensuring low power loss during operation.
It operates within a wide temperature range from -55°C to 150°C.
The maximum self-resonant frequency is rated at 5.5MHz.
It features a ferrite core construction, which provides effective magnetic shielding.
It is supplied in tape and reel packaging, facilitating automated insertion and soldering processes.
The termination style is solder, suitable for surface mount technology.
Yes, it complies with RoHS standards, ensuring environmental safety.
It is constructed with wirewound enamel copper wire for reliable performance.
This model is part of the B82462-G4 series.
