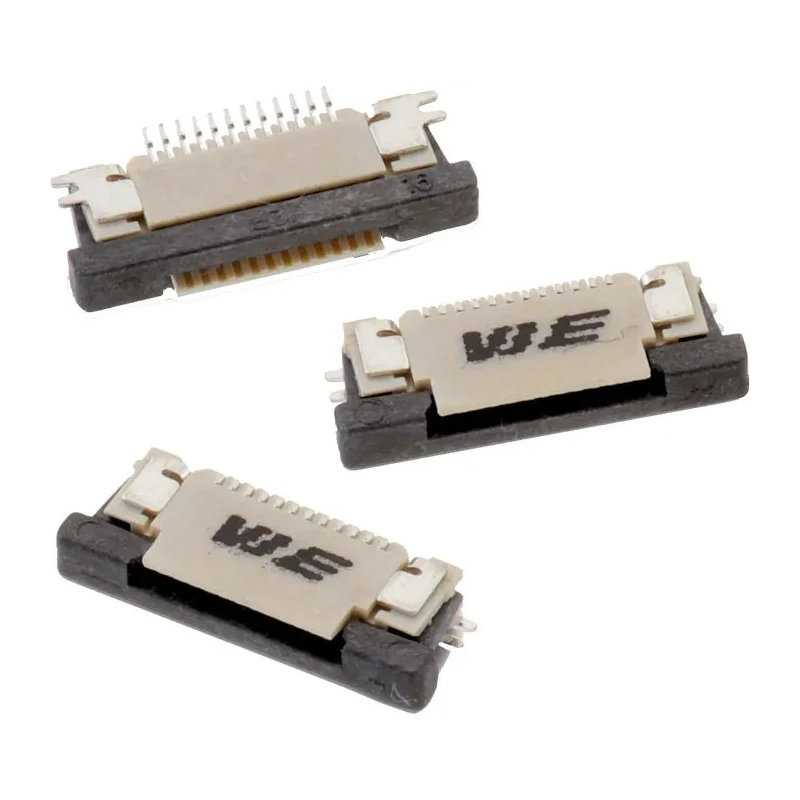

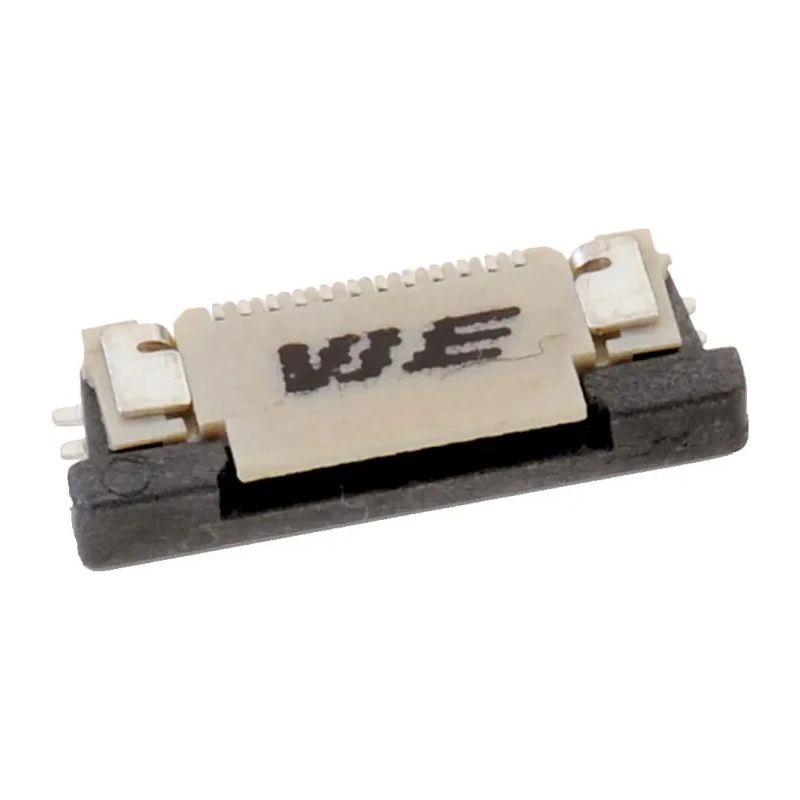

Wurth Elektronik WR-FPC 28 Way 0.5 mm Pitch Horizontal Female FPC Connector ZIF Top Contact 50V 68712814022
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF Top Contact |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -25°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 28 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Top |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- This FPC connector features 28 contacts with 0.5 mm pitch ensuring precise alignment.
- Constructed with phosphor bronze contacts plated with tin over nickel for durability.
- The connector uses a zero insertion force (ZIF) top contact termination for easy connection.
- It is horizontally oriented and designed with locking mechanism for secure mating.
- The housing is made from liquid crystal polymer for high mechanical stability and thermal resistance.
- The connector supports operating voltage up to 50V and temperatures from -25°C to 85°C.
- Surface mount mount type enables SMT PCB assembly.
- Offers top contact position with brass solder tabs for reliable electrical connection.
Product Description
The Wurth Elektronik 68712814022 is a 28 Way Horizontal Female FPC Connector with a 0.5 mm pitch designed for reliable and precise connections in electronic applications. It features zero insertion force (ZIF) top contact termination for easy mating and demating without damaging the flexible printed circuit (FPC).
Constructed with phosphor bronze contacts plated with tin over nickel, this connector offers excellent conductivity and corrosion resistance. The housing is made from a liquid crystal polymer (LCP) providing high mechanical strength and thermal stability, suitable for operating temperatures from -25°C to 85°C.
This surface mount type connector includes a locking mechanism to ensure secure connections in PCB assemblies, oriented horizontally for compact and efficient PCB layout designs. Brass solder tabs enhance solder joint reliability for long-term durability.
Designed to accommodate voltages up to 50V, the WR-FPC 68712814022 is ideal for industrial, consumer, and commercial electronic devices where flexible circuit connectivity is essential. Made in China, this component is part of the Wurth Elektronik WR-FPC series and complies with industry standards for quality and performance.
This FPC Connector features 28 contacts with 0.5 mm pitch ensuring precise alignment. Constructed with phosphor bronze contacts plated with tin over nickel for durability. The connector uses a zero insertion force (ZIF) top contact termination for easy connection.
It is horizontally oriented and designed with locking mechanism for secure mating. The housing is made from liquid crystal polymer for high mechanical stability and thermal resistance. The connector supports operating voltage up to 50V and temperatures from -25°C to 85°C.
Surface mount mount type enables SMT PCB assembly. Offers top contact position with brass solder tabs for reliable electrical connection. Suitable for use in electronic components requiring flexible printed circuit connections in industrial and consumer electronics.
Explore more electronic components and connectors like the WR-FPC 68712814022 at EnvMart for your design and manufacturing needs.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The connector supports an operating voltage of up to 50V.
It can operate within a temperature range of -25°C to 85°C.
This model features 28 contacts.
The pitch size is 0.5 mm.
The contacts are made of phosphor bronze plated with tin over nickel, and the housing is constructed from liquid crystal polymer (LCP).
It utilizes a zero insertion force (ZIF) top contact termination for easy connection and disconnection.
Yes, it is designed for surface mount (SMT) PCB assembly.
It includes a locking mechanism to ensure secure mating during use.
The connector is horizontally oriented, which aids in compact PCB layout designs.
The solder tabs are made of brass, which enhances solder joint reliability.
The connector is manufactured in China.
It is suitable for use in industrial, consumer, and commercial electronic devices requiring flexible circuit connectivity.
