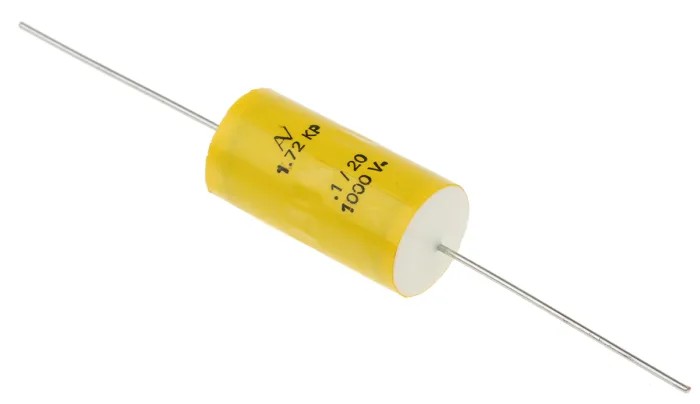

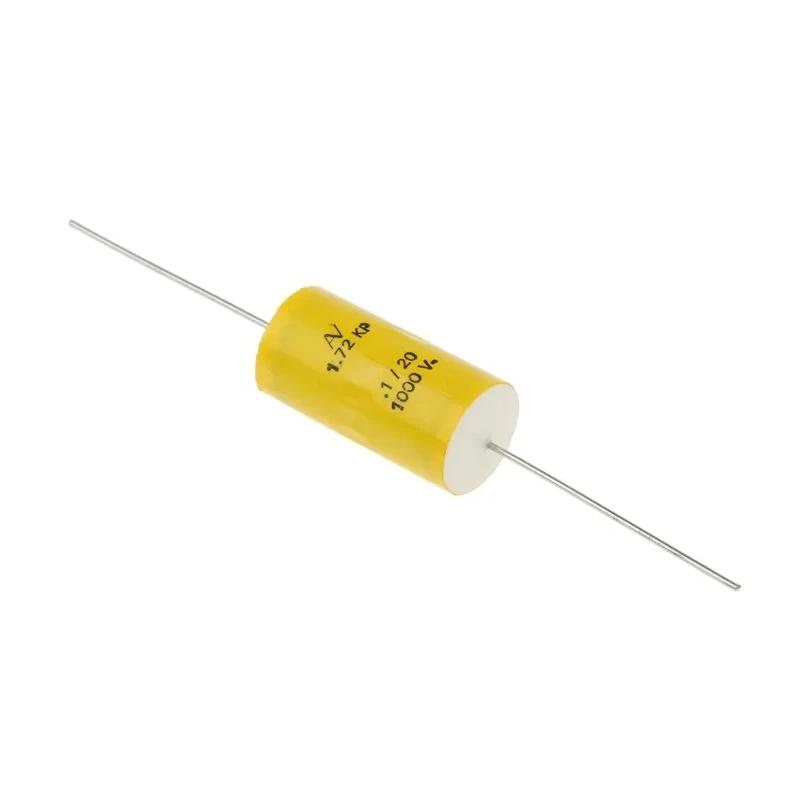

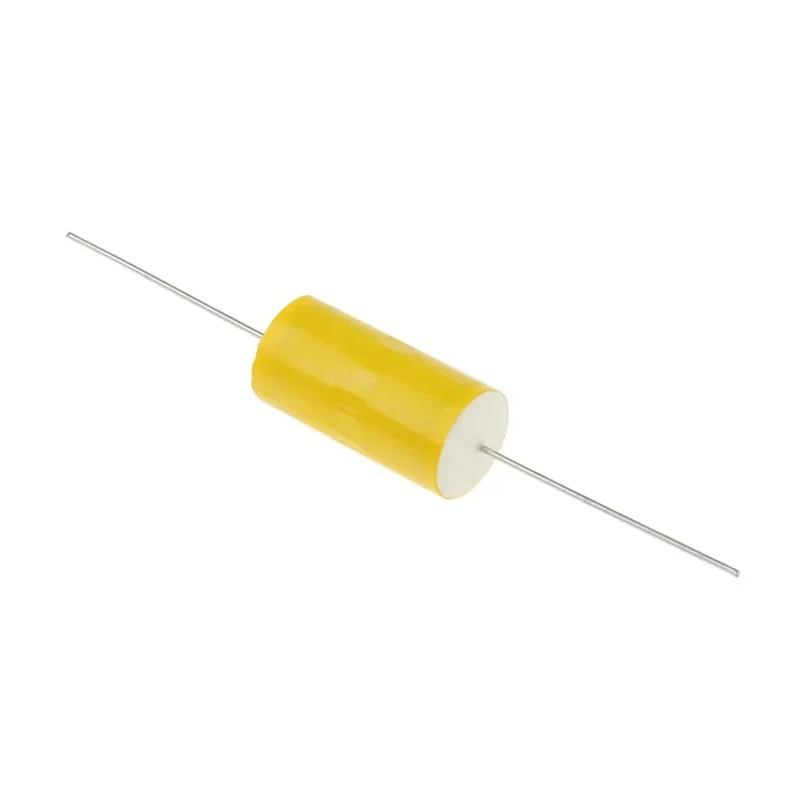

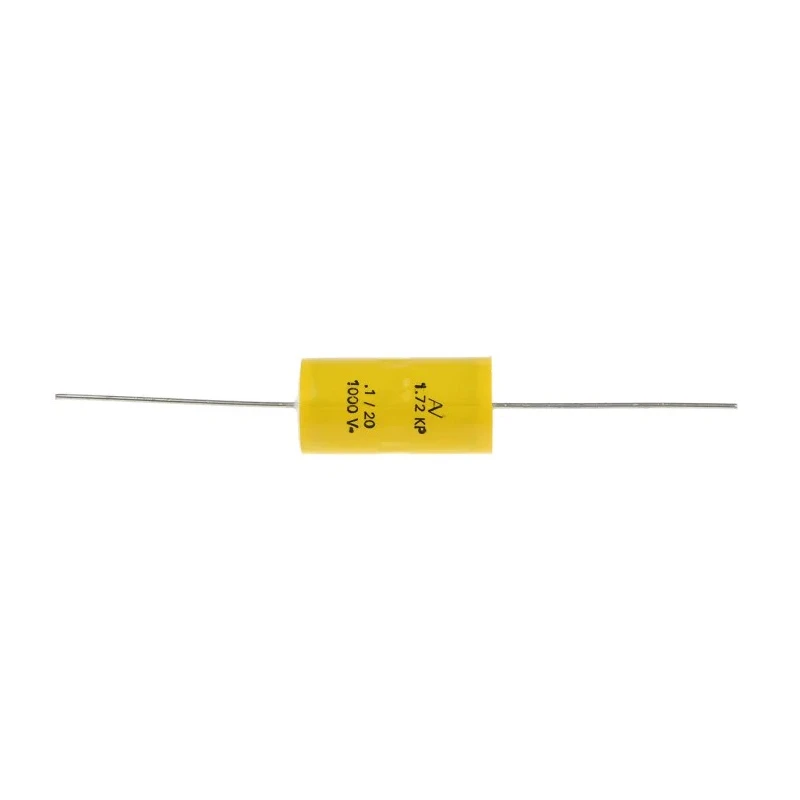

KEMET A72 Film Capacitor 100nF ±20% 1kV DC 400V AC Through Hole A72QT3100AA02M
Specifications
| Country of Origin | India |
|---|---|
| Brand | KEMET |
| Length | 33mm |
| Model | A72QT3100AA02M |
| Packaging | Bag |
| Mount Type | Through Hole |
| Series | A72 |
| Maximum Operating Temperature | 105°C |
| Tolerance | ±20 % |
| Capacitance | 100nF |
| Minimum Operating Temperature | -55°C |
| Lead Length | 40mm |
| Standards/Approvals | IEC 60384-13, UL |
| Pin Count | 2 |
| Rated AC Voltage | 400V ac |
| Rated DC Voltage | 1kV dc |
| Lead Diameter | 1mm |
Key Features
- This film capacitor features a very low loss dielectric suitable for continuous high voltage use.
- It withstands fast rise time pulses, providing excellent high frequency performance.
- Constructed using film-foil polypropylene materials with polyester wrap and epoxy end seals for durability.
- The capacitor has a lead length of 40mm and lead diameter of 1mm, fitting 2-pin through-hole applications.
- Operating temperature ranges from -55°C to a maximum of 105°C, with voltage derating above 85°C.
- Complies with IEC 60384-13 and UL standards, ensuring quality and reliability in industrial applications.
- Ideal for use in electronic circuits requiring stable capacitance and high voltage rating.
Product Description
KEMET A72QT3100AA02M Film Capacitor is a through-hole mounted electronic component with a capacitance of 100nF and tolerance of ±20%. It is rated for 1kV DC and 400V AC, specifically designed for high voltage and high frequency applications.
This capacitor employs a film-foil polypropylene dielectric, delivering very low loss characteristics for continuous voltage use. It can withstand rapid rise time pulses, making it well-suited for demanding electronic environments.
The construction includes a polyester wrap and epoxy end seals that provide robust protection and longevity, ensuring stable performance even under thermal stress. Its leads have a length of 40mm and diameter of 1mm, compatible with standard through hole mounting techniques.
Operating temperature range is broad, from -55°C to 105°C, with an advised voltage derating of 1.25% per degree Celsius above 85°C to maintain reliability. Certified to IEC 60384-13 and UL standards, this capacitor meets stringent international performance and safety benchmarks.
Common industrial uses include electronic circuits in power supplies, signal processing, and filtering applications where stable capacitance and durability are critical. The A72 series film capacitors are highly regarded for their reliability and electrical performance in professional manufacturing, high-frequency, and power electronics contexts.
This Film Capacitor offers a 100nF capacitance with ±20% tolerance suitable for precise electronic applications. Rated for harsh environments with operation up to 105°C and high voltage endurance. Lead configuration and size accommodate standard through-hole circuit board mounting.
Compliance with IEC and UL guarantees quality for industrial and commercial electronics. Ideal for use in high frequency, pulse handling, and power circuit applications. Explore a wide selection of capacitors and other electronics components at EnvMart, providing quality parts for industrial, laboratory, and manufacturing use.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The capacitance value of this film capacitor is 100nF with a tolerance of ±20%.
It is rated for 1kV DC and 400V AC, making it suitable for high voltage applications.
The operating temperature range is from -55°C to a maximum of 105°C, with voltage derating above 85°C.
This model is designed for through-hole mounting, with a pin count of 2.
It is constructed using film-foil polypropylene materials, with a polyester wrap and epoxy end seals.
The capacitor has a length of 33mm, a lead length of 40mm, and a lead diameter of 1mm.
It complies with IEC 60384-13 and UL standards, ensuring quality and reliability in industrial applications.
It is commonly used in electronic circuits for power supplies, signal processing, and filtering applications.
This film capacitor features very low loss characteristics, making it suitable for high frequency performance and rapid rise time pulses.
The KEMET A72 film capacitor is packaged in a bag.
The advised voltage derating is 1.25% per degree Celsius above 85°C to maintain reliability.
The country of origin for this capacitor is India.
