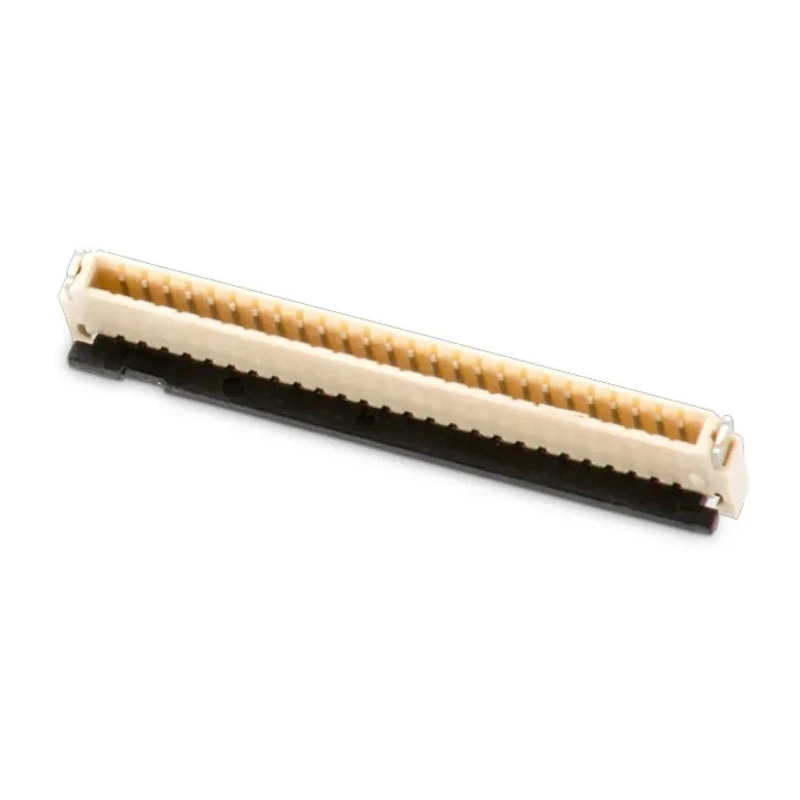

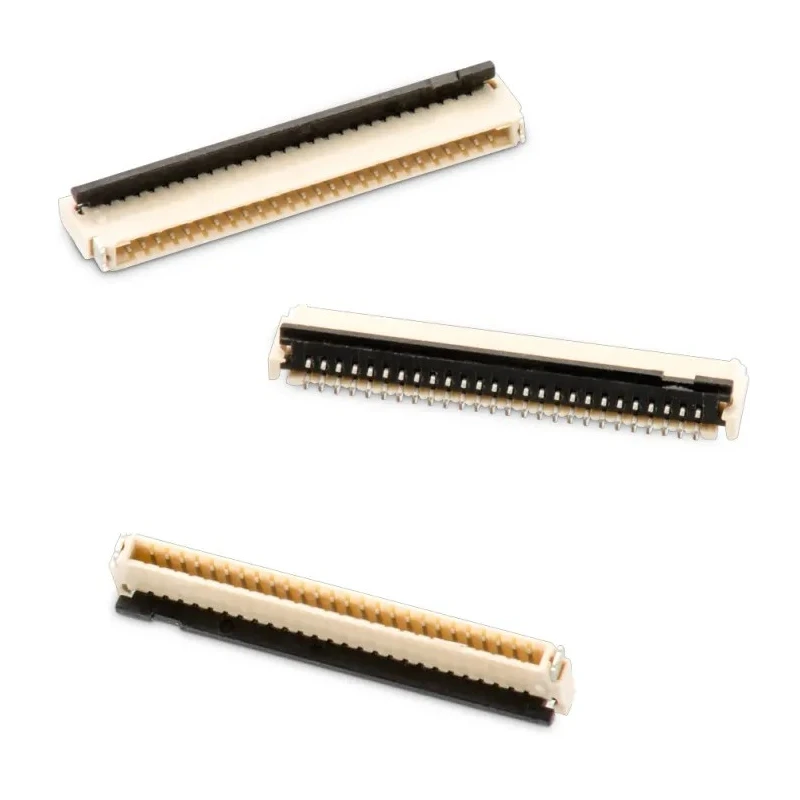

Wurth Elektronik WR-FPC FPC Connector 0.5 mm Pitch 34 Way Horizontal Female ZIF 50V 500mA 687134182122
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 50V |
| Brand | Wurth Elektronik |
| Orientation | Horizontal |
| Current | 500mA |
| Mount Type | Surface |
| Housing Material | Liquid Crystal Polymer |
| Contact Material | Phosphor Bronze |
| Series | WR-FPC |
| Termination Type | ZIF |
| Maximum Operating Temperature | 85°C |
| Sub Type | FPC |
| Minimum Operating Temperature | -55°C |
| Pitch | 0.5mm |
| Contact Plating | Tin over Nickel |
| Number of Contacts | 34 |
| Contact Gender | Female |
| Connector Gender | Female |
| Insertion Force | ZIF |
| Contact Position | Dual |
| Solder Tabs | Brass |
| Insulator Material | LCP |
Key Features
- Features phosphor bronze contact material with tin over nickel plating for durability.
- Utilizes a ZIF locking mechanism for secure connection.
- Designed with liquid crystal polymer housing for high insulation and stability.
- Supports current rating of 500mA and voltage rating of 50V.
- Operating temperature ranges from -55°C to 85°C suitable for harsh environments.
- Compact surface mount type ideal for PCB assembly.
- Dual contact position for optimal electrical performance.
- Manufactured in China ensuring quality control.
Product Description
Wurth Elektronik model 687134182122 is a precision-engineered FPC Connector designed with 0.5 mm pitch spacing and 34 contacts. This horizontal female connector features a Zero Insertion Force (ZIF) termination type that minimizes wear and facilitates easy cable insertion for longer service life.
Constructed with phosphor bronze contacts plated with tin over nickel, this connector ensures premium electrical conductivity and corrosion resistance. The housing is made from liquid crystal polymer, which provides excellent mechanical strength and high thermal stability. The inclusion of brass solder tabs further enhances the mechanical stability when surface mounted on PCBs.
Rated for operation at 50 volts and current capacity of 500 milliamps, the connector supports demanding electronic applications. It is suitable for use in industrial electronics, communication devices, automation equipment, and other fields where reliable high-density PCB connections are essential.
The operating temperature range spans from -55°C to 85°C, making it able to withstand harsh thermal environments typically encountered in industrial and commercial setups. Phosphor bronze contacts with tin over nickel plating improve lifespan and performance.
ZIF termination technology reduces insertion force and contact wear. Surface mount design suits automated assembly processes. Housing material LCP provides excellent durability and insulation. Dual contact position enhances electrical reliability.
Locking mechanism ensures secure connections during operation. Ideal for high-density electronics and PCB applications. Manufactured in China adhering to quality standards.
This Wurth Elektronik FPC Connector is an essential component for designers and manufacturers involved in electronic device assembly requiring compact, reliable connectors with low insertion force technology. Browse the Electronics Components and FPC Connectors category at EnvMart for more premium connectors, and enhance your project with trusted quality parts like this model 687134182122.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The voltage rating of this connector is 50V.
This model supports a current capacity of 500mA.
The pitch size of this connector is 0.5 mm.
It features phosphor bronze contacts with tin over nickel plating and a housing made from liquid crystal polymer.
The operating temperature range is from -55°C to 85°C.
This connector has 34 contacts.
It utilizes a Zero Insertion Force (ZIF) termination type.
The mounting type is surface mount.
The connector has female contacts.
The dual contact position enhances electrical reliability during operation.
This model is manufactured in China.
It is suitable for use in industrial electronics, communication devices, and automation equipment.
