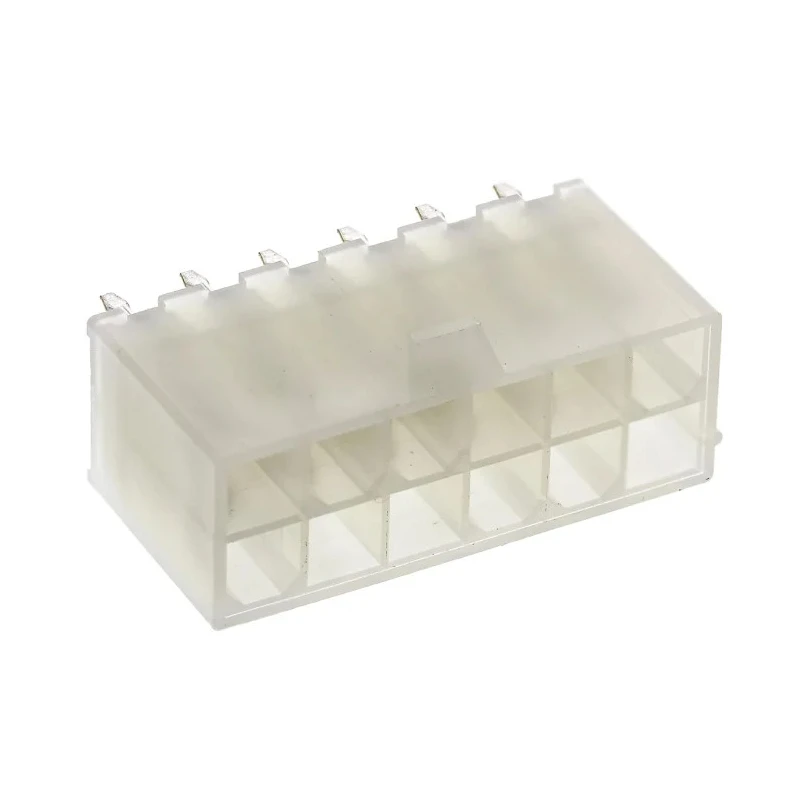

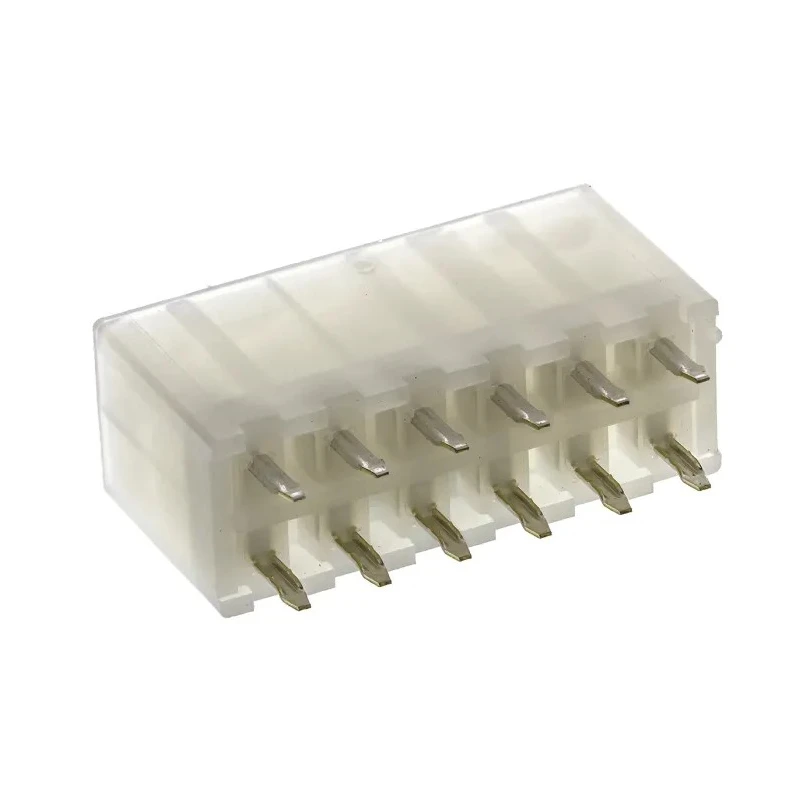

Molex Mini-Fit Jr Series Straight Through Hole PCB Header, 12 Contact, 4.2 mm Pitch, 2 Row, Shrouded 39-28-1123
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 9A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 12 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Features a compact 4.2 mm pitch for easy mounting on small PCBs.
- Contains 12 tin-plated brass contacts for high conductivity and reliability.
- Shrouded nylon housing protects contacts from damage and bending.
- Capable of handling up to 9A current per circuit for intensive electrical loads.
- Designed with scoop-proof housings to prevent terminal damage during mating.
- Includes polarization and keying to prevent misalignment and mismating.
- Operates within a temperature range of -40°C to 105°C for diverse environments.
- Mounts via through-hole termination with male contact gender and solder tail pins of 3.5 mm length.
Product Description
Molex 39-28-1123 Mini-Fit Jr Series Straight Through Hole PCB Header is a high-quality electronic component designed for wire-to-board connections. It features 12 contacts arranged in 2 rows with a 4.2 mm pitch and has a shrouded, durable nylon housing to protect contacts and ensure longevity. The brass contacts are tin-plated to enhance conductivity and resist corrosion, making this header reliable for demanding electrical applications.
This PCB header supports currents up to 9A per circuit, suitable for high power applications. The scoop-proof housings prevent damage to terminals during severe angle mating, and the connector includes keying and polarization features to avoid mismating with receptacles. The positive locking mechanism secures connections, guaranteeing robust performance even under shock or vibration.
Operating temperature ranges from -40°C to 105°C accommodate diverse industrial and commercial environments. The through-hole mounting type with male contact gender and 3.5 mm tail pin length ensures ease of soldering and stable board attachment.
Applications include domestic appliances, lighting systems, server infrastructure, and vehicle monitoring equipment, evidencing its versatility across industries requiring dependable electrical connectors.
12 contact points arranged in 2 rows with 4.2 mm pitch. Robust nylon housing with shrouded design for enhanced durability. High conductivity tin-plated brass contacts ensure reliable connection. Current rating of 9A per circuit supports heavy-duty electrical loads.
Incorporates scoop-proof design and polarization to prevent terminal damage and misalignment. Operates within -40°C to 105°C, suitable for industrial and commercial use.
Optimize your electronic designs with this Molex Mini-Fit Jr PCB Header, providing secure, efficient connections for a wide range of power and data distribution needs. Explore more connectors and components in the Electronics Components category at EnvMart.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is capable of handling up to 9A current per circuit, making it suitable for high power applications.
The pitch size of this model is 4.2 mm, allowing for easy mounting on small PCBs.
The contacts are made of tin-plated brass for high conductivity, while the housing is constructed from durable nylon.
It operates within a temperature range of -40°C to 105°C, suitable for diverse industrial and commercial environments.
This model features 12 contacts arranged in 2 rows, providing reliable connections for various applications.
It uses a through-hole termination type with solder tail pins of 3.5 mm length for stable board attachment.
The header incorporates scoop-proof housings to prevent damage to terminals during severe angle mating.
Yes, it includes polarization and keying features to prevent misalignment and mismating with receptacles.
This PCB header is designed as a wire-to-board connector system, suitable for various electronic applications.
The country of origin for this PCB header is China.
This model is suitable for applications in domestic appliances, lighting systems, server infrastructure, and vehicle monitoring equipment.
The orientation of this PCB header is straight, allowing for straightforward installation on PCBs.
