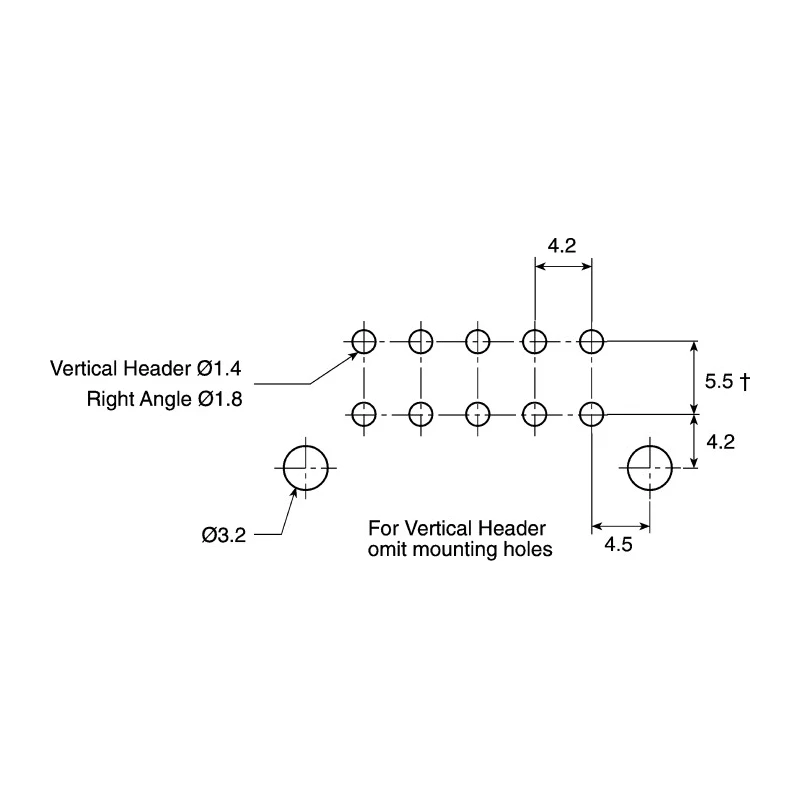

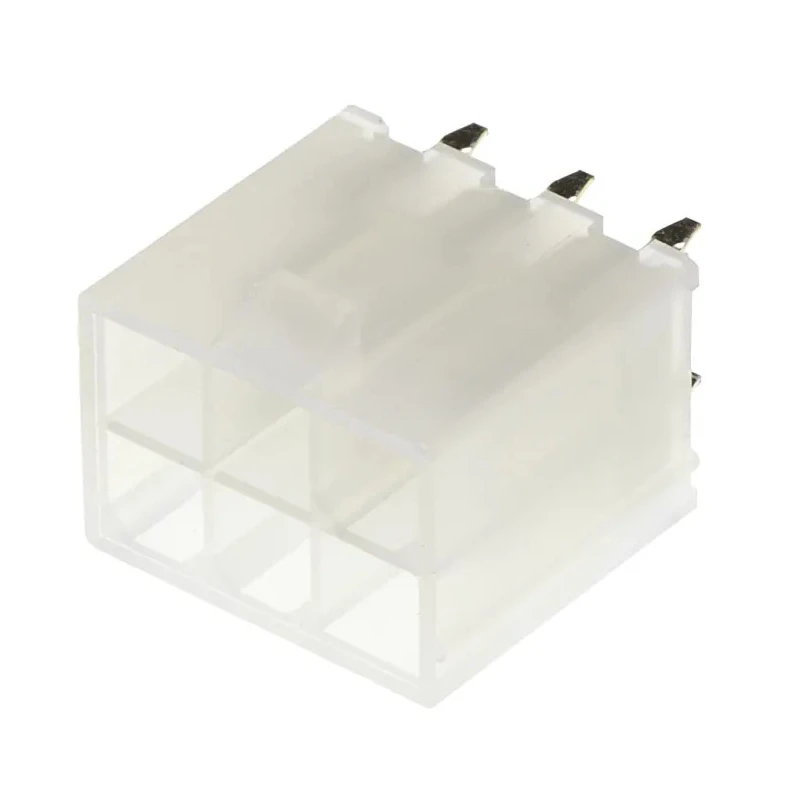

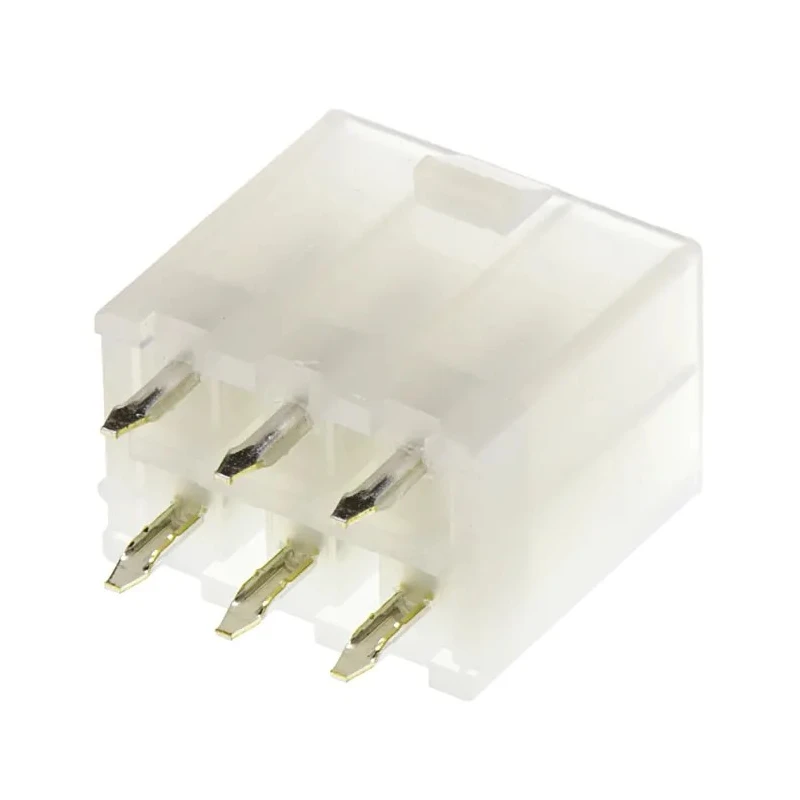

Molex Mini-Fit Jr Series Straight Through Hole PCB Header 6 Contact 4.2 mm Pitch 2 Row Shrouded 39-28-1063
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 600V |
| Brand | Molex |
| Orientation | Straight |
| Current | 9A |
| Mount Type | Through Hole |
| Housing Material | Nylon |
| Contact Material | Brass |
| Series | Mini-Fit Jr |
| Termination Type | Solder |
| Maximum Operating Temperature | 105°C |
| Minimum Operating Temperature | -40°C |
| Number of Rows | 2 |
| Pitch | 4.2mm |
| Contact Plating | Tin |
| Number of Contacts | 6 |
| Contact Gender | Male |
| Shrouded/Unshrouded | Shrouded |
| Connector System | Wire-to-Board |
| Tail Pin Length | 3.5mm |
Key Features
- Compact 4.2 mm pitch designed for tight PCB mounting spaces.
- Rated for current up to 9A per contact ensuring medium power transfer.
- Shrouded housing with polarised and keyed terminals to prevent misalignment.
- Constructed from durable nylon housing and tin-plated brass contacts for corrosion resistance.
- Terminations are solder type suitable for high vibration applications.
- Operating temperature range from -40°C to 105°C for industrial environments.
- Male contact gender with a tail pin length of 3.5 mm.
Product Description
Molex 39-28-1063 Mini-Fit Jr Series Straight Through Hole PCB Header features a robust design for wire-to-board connectivity, with 6 contacts arranged in 2 rows at a 4.2 mm pitch. This component is engineered to handle current up to 9A per contact, making it well-suited for medium power electronic applications.
The shrouded, nylon housing provides mechanical protection and chemical resistance, ideal for industrial and commercial electronic devices. The polarization and keying of the terminals prevent incorrect mating with receptacles, supported by an audible click to confirm secure locking, preventing accidental disconnect during vibration or shock.
Contacts are crafted from brass and plated with tin, offering excellent corrosion resistance and reliable solder termination in demanding environments. With a wide operating temperature range from -40°C up to 105°C, this PCB header is adaptable for diverse use cases including office equipment, industrial automation systems, rack-mount servers, routers, and switches.
The 3.5 mm tail pin length ensures solid solder connections on the PCB, while the through-hole mount type guarantees sturdy mechanical fixation. The product is manufactured in China and lacks explicit certification approvals.
Compact 4.2 mm pitch designed for tight PCB mounting spaces. Rated for current up to 9A per contact ensuring medium power transfer. Shrouded housing with polarised and keyed terminals to prevent misalignment. Constructed from durable nylon housing and tin-plated brass contacts for corrosion resistance.
Terminations are solder type suitable for high vibration applications. Operating temperature range from -40°C to 105°C for industrial environments. Male contact gender with a tail pin length of 3.5 mm.
This Mini-Fit Junior PCB header is a reliable choice for industrial, laboratory, and commercial electronics manufacturing where secure and compact wire-to-board connections are needed.
Explore more PCB Headers and connectors in the Electronics & Electricals category at EnvMart for quality and trusted brands like Molex.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This PCB header is rated for a current of up to 9A per contact, making it suitable for medium power electronic applications.
The pitch size of this header is 4.2 mm, designed for compact PCB mounting spaces.
It features a nylon housing and tin-plated brass contacts, which provide corrosion resistance and durability.
The operating temperature range for this PCB header is from -40°C to 105°C, suitable for industrial environments.
This model has 6 contacts arranged in 2 rows.
It uses solder type terminations, which are suitable for high vibration applications.
The tail pin length of the contacts is 3.5 mm, ensuring solid solder connections on the PCB.
This header is shrouded, providing mechanical protection and preventing misalignment during mating.
The voltage rating for this model is 600V, suitable for various electronic applications.
It utilizes a wire-to-board connector system, facilitating secure connections between wires and PCBs.
This PCB header is manufactured in China.
The shrouded housing includes polarized and keyed terminals, which prevent misalignment and ensure secure locking during use.
