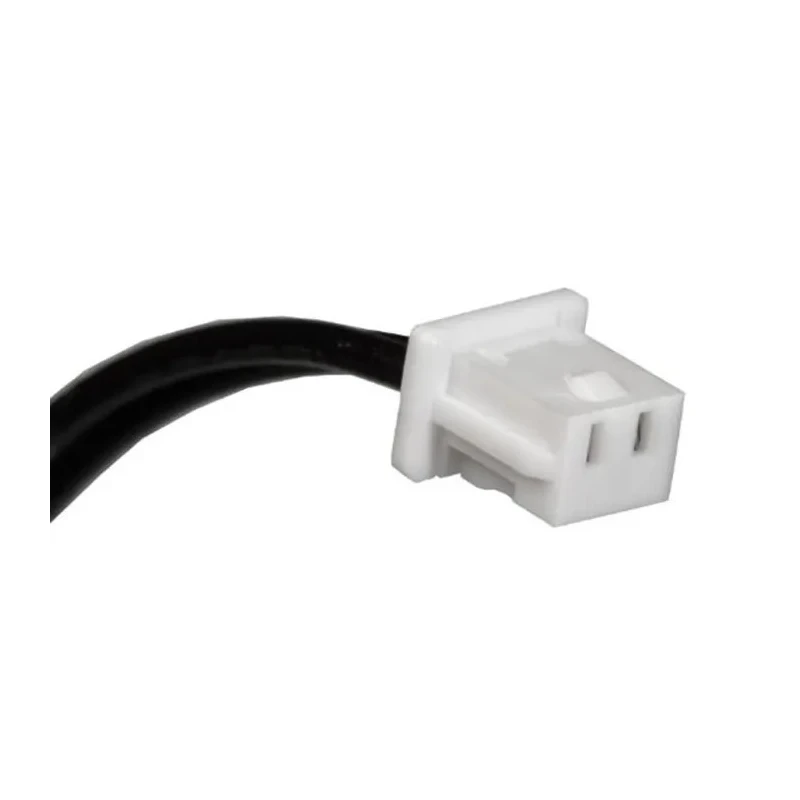

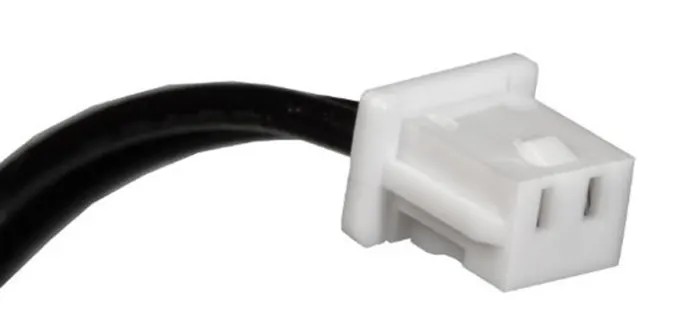

Molex Wire to Board Cable 8 Way Female PicoBlade to 2 Way Female PicoBlade 125V 100mm Length 15134-0201
Specifications
| Country of Origin | India |
|---|---|
| Voltage | 125V |
| Brand | Molex |
| Cable Length | 100mm |
| Series | 15134 |
| Standards/Approvals | UL1061, ISO- and TS-16949, 2011/65/EU RoHS |
| Connector Type A | PicoBlade |
| Connector Gender A | Female |
| Jacket Colour | Black |
| Number of Contacts A | 8 |
| Number of Contacts B | 2 |
| Number of Rows A | 1 |
Key Features
- Compact design with 1.25mm pitch for space efficiency.
- Rated current of 1A suitable for low-voltage applications.
- Constructed with UL1061 discrete wires reducing electromagnetic interference.
- PVC jacket offers durable protection and long service life.
- Friction lock connectors ensure secure mating preventing accidental disengagement.
- Operating temperature range from -40°C to +85°C for use in harsh environments.
- Tin plating on contacts resists corrosion and enhances long-term reliability.
- Versatile use in industrial, medical, and commercial electronic systems.
Product Description
Molex 15134-0201 Wire to Board Cable features 8 way female PicoBlade connector mating with 2 way female PicoBlade connector over a 100mm length cable rated for 125V operation. This cable assembly from Molex's PicoBlade series offers a compact 1.25mm pitch design suitable for connecting PCBs in confined spaces within industrial and electronic applications.
The discrete UL1061 wires minimize electromagnetic interference and ensure noiseless signal transmission. The cable jacket is made of robust polyvinyl chloride (PVC), which withstands wear and aging, enabling long service life in demanding environments. Friction locks included in the connector housings reliably prevent connector unmating, a valuable feature in systems subject to vibration, such as commercial vehicles and medical devices.
Operating temperatures from -40°C to +85°C allow this cable to perform in extreme conditions. The tin plating on connector contacts provides corrosion resistance and dependable long-term contact reliability. The pin-to-pin map configuration simplifies system design by allowing straightforward wiring without complex cable layout planning.
This wire to board cable assembly finds application in home entertainment, mobile devices, commercial vehicles, and diverse industrial electronics where secure, low-voltage PCB connections are required.
Compact 1.25mm pitch PicoBlade connectors suitable for compact PCBs. Durable PVC cable jacket for extended cable lifespan. Tin contact plating ensures corrosion resistance. Friction locks secure connector mating preventing disconnection.
Discrete UL1061 wires reduce EMI for reliable signal integrity. Rated at 125V and 1A current for low-voltage applications. Wide operating temperature range for use in harsh environments. Pin-to-pin mapping eases cable assembly and system integration.
Applications include medical, industrial, commercial electronics, and mobile devices.
Choosing Molex wire to board cables guarantees performance and reliability across diverse electronic assembly needs. Explore our full range of Wire to Board Cable assemblies and connectors at EnvMart for seamless electronics integration.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The cable is rated for 125V operation, making it suitable for low-voltage applications.
This model has a cable length of 100mm.
The 8 way female PicoBlade connector features a total of 8 contacts.
It operates effectively within a temperature range of -40°C to +85°C, suitable for harsh environments.
The cable is constructed with UL1061 discrete wires and features a PVC jacket for protection.
This assembly uses a PicoBlade connector type, with 8 way female on one end and 2 way female on the other.
It complies with UL1061, ISO- and TS-16949, and the 2011/65/EU RoHS directive.
Friction lock connectors are included to ensure secure mating and prevent accidental disengagement.
The tin plating on the contacts resists corrosion and enhances long-term reliability.
It is suitable for use in medical, industrial, commercial electronics, and mobile devices.
The pin-to-pin mapping simplifies system design by allowing straightforward wiring without complex cable layout planning.
The jacket color of this cable is black.
