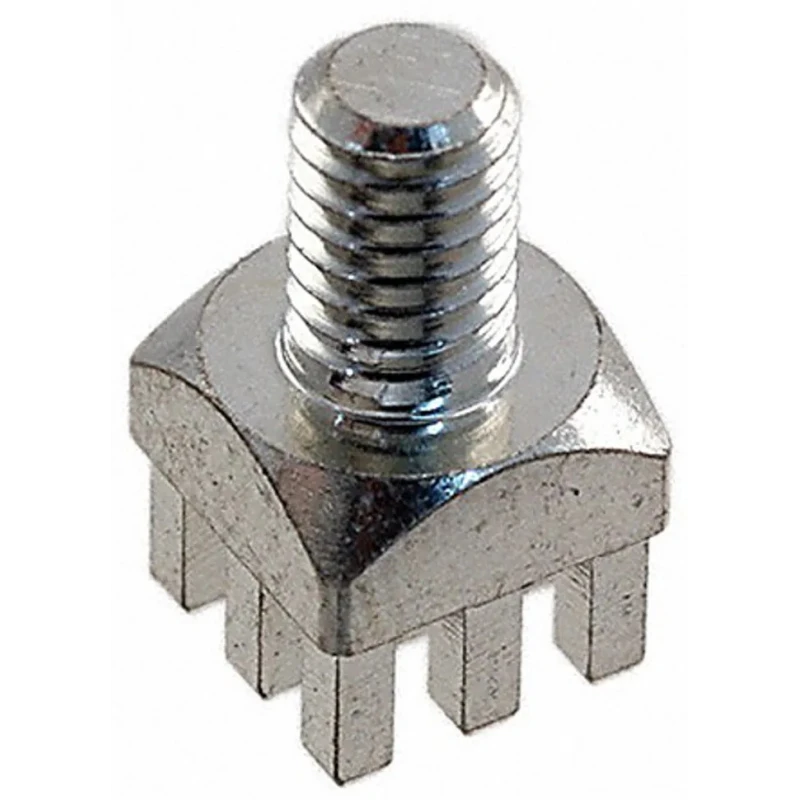

Wurth Elektronik Brass Screw Terminal Vertical 130A REDCUBE Series M3 Screw Size 7461094

Wurth Elektronik 7461094 Brass Screw Terminal Vertical is engineered to transfer high currents up to 130A reliably onto PCBs. This terminal from the REDCUBE series features robust brass construction with tin plating, providing excellent durability and corrosion resistance for demanding environments.

The vertical screw terminal is equipped with an M3 screw size and offers a 2.54mm pitch with 3 rows and 9 legs, enabling stable and secure electrical connections. It utilizes a press-fit technology that ensures a gas-tight connection resistant to vibration and shock, eliminating the need for soldering and associated thermal stress.

This design significantly streamlines manufacturing processes, requiring only simple press-fit tooling for integration. The rugged construction makes it suitable for diverse industrial sectors including wind and solar energy installations, medical devices, automotive electronics, agricultural machinery, and various power supply systems.

Applications include high-power transfer within power supplies, DC to AC converters, battery management systems, and emergency power units. The screw terminal’s capability to handle currents up to 130A helps maintain reliable circuit performance in critical applications.

Constructed from brass with tin plating for enhanced durability and corrosion resistance. Designed with vertical orientation and snap-in feature for secure PCB mounting. Features a 2.54mm pitch and 3 rows with 9 legs for stable electrical connections.

Uses M3 screw size to tighten connections efficiently and reliably. Employs press-fit technology ensuring gas-tight, vibration-resistant contact without soldering. Eliminates soldering thermal stress on PCBs, improving production efficiency.

Designed for industrial, medical, automotive, agricultural, wind, and solar power applications. Ideal for power supplies, converters, battery systems, and emergency power applications. Part of the REDCUBE series of power terminals known for rugged construction and high current capacity.
