Nexperia Digital Transistor, 100 mA NPN + PNP, 50 V, 6-Pin UMT Surface-Mount PUMD2,115

Free Delivery in India | Lowest Global Shipping Charges

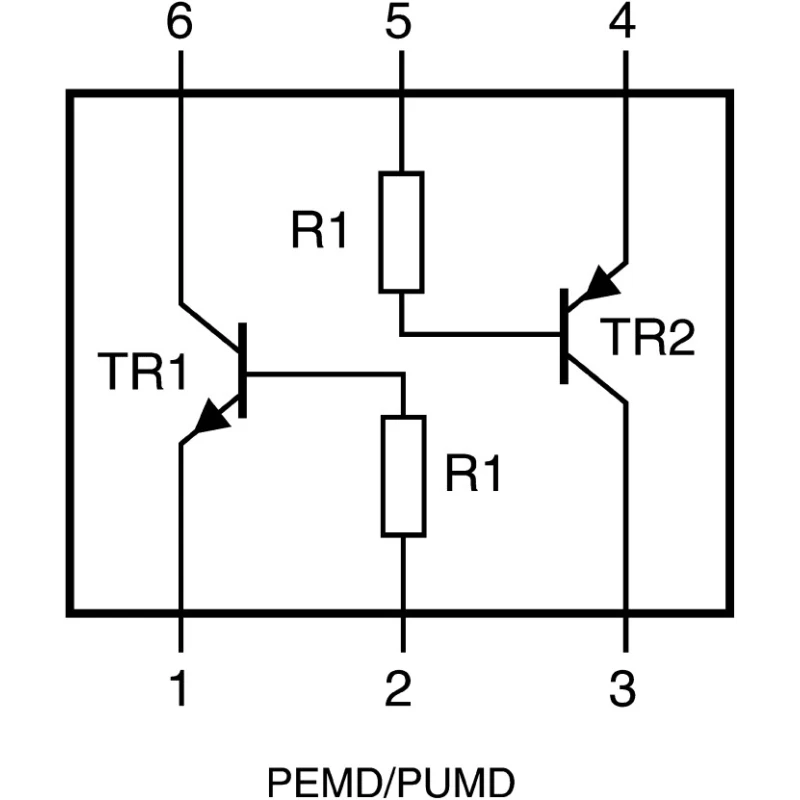

Nexperia Digital Transistor, 100 mA NPN + PNP, 50 V, 6-Pin UMT Surface-Mount PUMD2,115

Name: Nexperia Digital Transistor, 100 mA NPN + PNP, 50 V, 6-Pin UMT Surface-Mount PUMD2,115
Brand: Nexperia
SKU: 193887
Price: 0.05 USD
Availability: InStock



Category Digital Transistor Brand Nexperia Condition New

Specifications

Country of Origin	Malaysia
Brand	Nexperia
Height	1.1mm
Length	2.2mm
Model	PUMD2,115
Width	1.35mm
Mount Type	Surface
Series	PUMD2
Maximum Operating Temperature	150°C
Package Type	UMT
Minimum Operating Temperature	0°C
Standards/Approvals	RoHS
Pin Count	6
Maximum Collector Emitter Voltage Vceo	50V
Minimum DC Current Gain hFE	60
Transistor Polarity	NPN + PNP
Maximum Emitter Base Voltage VEBO	10V
Maximum Collector Base Voltage VCBO	50V
Automotive Standard	AEC-Q101
Maximum Power Dissipation Pd	200mW
Maximum DC Collector Current Idc	100mA
Transistor Configuration	Isolated
Maximum Transition Frequency ft	230MHz

Key Features

This digital transistor includes built-in bias resistors that simplify circuit design.
It supports a maximum collector emitter voltage of 50 V and maximum collector base voltage of 50 V.
The device accommodates a maximum power dissipation of 200 mW suitable for low-power applications.
Operating temperature ranges from 0°C to 150°C, ensuring reliability in diverse environments.
The transistor configuration is isolated with a maximum transition frequency of 230 MHz.
Compact dimensions of 2.2 mm length, 1.35 mm width, and 1.1 mm height fit space-constrained PCB layouts.
It complies with RoHS and automotive standard AEC-Q101, suitable for high-quality applications.
Ideal for low current peripheral driver tasks, IC input control, and general-purpose digital transistor replacements.

Product Description

Nexperia PUMD2,115 is a Digital Transistor designed for surface-mount technology applications requiring NPN + PNP transistor functionality with an output current capability of 100 mA and voltage rating of 50 V.

This 6-pin UMT package device incorporates built-in bias resistors that simplify circuit design and reduce component count and assembly cost. It allows more compact and cost-effective manufacturing by minimizing part numbers and pick-and-place operations.

With a maximum power dissipation of 200 mW and maximum transition frequency of 230 MHz, the transistor is suitable for various industrial, electronic, automotive, and control system applications requiring reliable switching and amplification.

The device operates reliably within a temperature range of 0 to 150°C and meets RoHS compliance along with Automotive AEC-Q101 standard, ensuring suitability for automotive electronics and other demanding environments.

Typical use cases include low current peripheral drivers, control of integrated circuit inputs, and replacing general-purpose transistors in digital circuits to improve performance and circuit integration.

This transistor features NPN + PNP polarity for versatile switching operations. Built-in bias resistors simplify design and reduce external components. Device package size is optimized for surface mount assembly in compact electronics.

High maximum operating temperature supports industrial and automotive conditions. Compliant with RoHS and AEC-Q101 standards, suitable for quality-sensitive applications. Compact dimensions enable inclusion in dense PCB layouts.

6-pin configuration for easy integration in modern PCBs. Nexperia offers this product as part of its PUMD2 series, engineered for efficient digital transistor applications in electronics manufacturing and automotive systems.

EnvMart customers can explore more Nexperia products and Digital Transistor categories for related components in semiconductor and discrete semiconductor segments.
