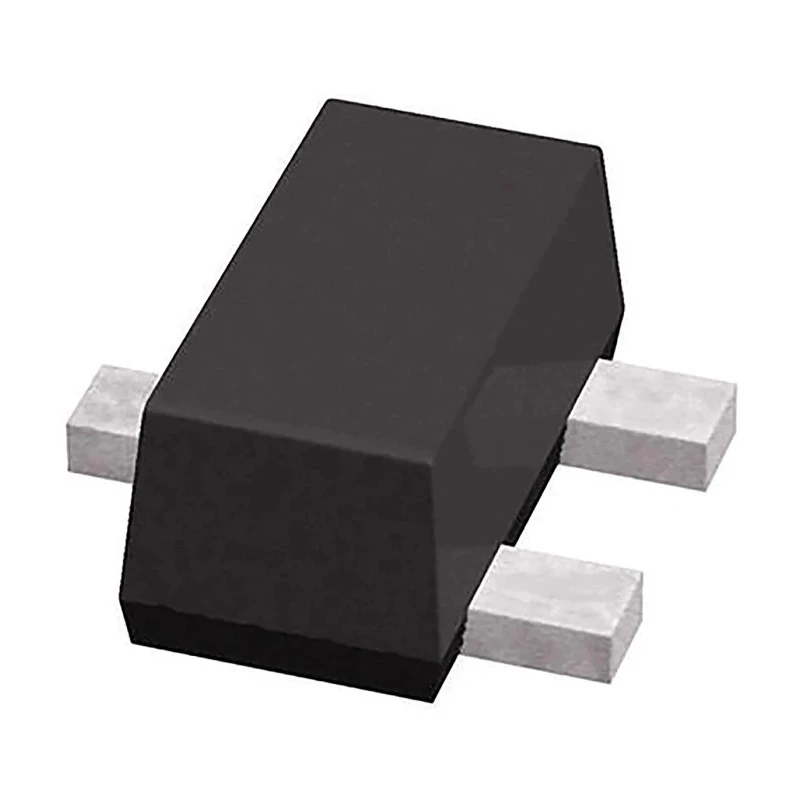

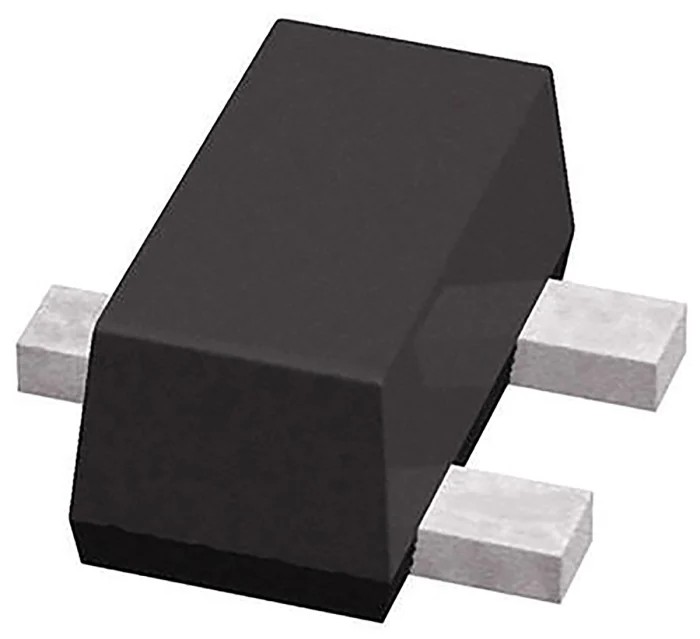

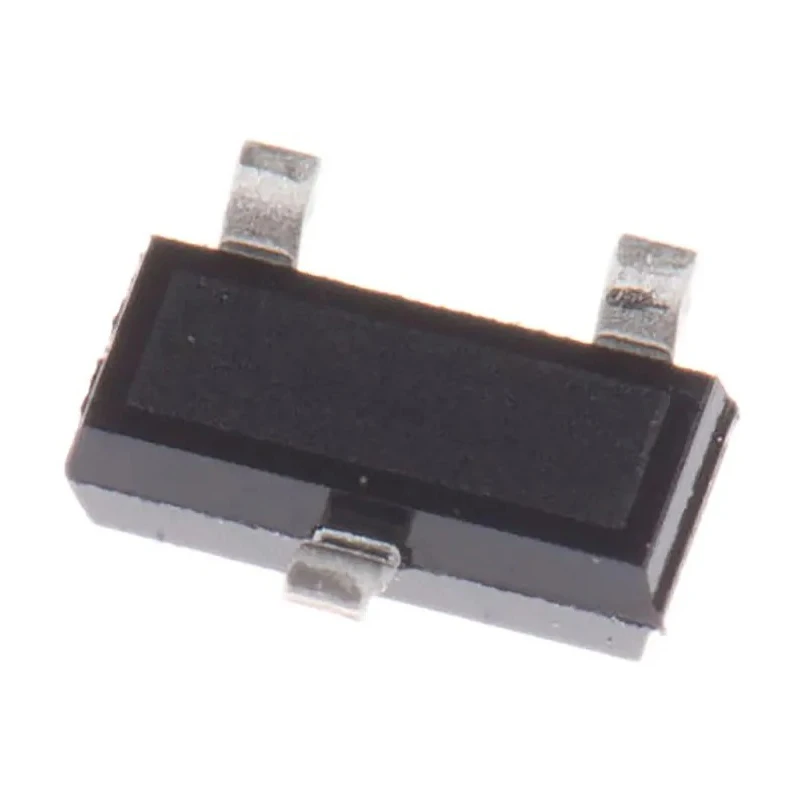

ROHM Digital Transistor 50 V NPN Surface Mount SOT-323FL 3-Pin DTC044EUBTL

ROHM DTC044EUBTL digital transistor is a highly efficient 50 V NPN bipolar transistor designed for surface mounting in SOT-323FL packages with three pins. It utilizes a common emitter configuration, making it suitable for digital switching and amplification functions in various electronic circuit applications.

This transistor features a maximum collector-emitter voltage (Vceo) of 50 V and supports a maximum power dissipation of 200 mW, ensuring reliable operation under standard electronic device conditions. The device guarantees a minimum DC current gain (hFE) of 68 and a maximum operating temperature of up to 150°C, making it robust for demanding environments.

Measuring just 2.1 mm in length, 1.35 mm in width, and 1.05 mm in height, the compact design facilitates use in space-constrained PCB environments. The integrated resistors in the device allow it to be driven directly from digital sources without the need for additional biasing components, simplifying circuit design and reducing component count.

This Digital Transistor is ideal for industrial, laboratory, and commercial electronic assembly, supporting applications in signal switching, amplification, and digital logic interface circuits. It is part of ROHM's DTC044E series known for quality and reliable performance.

Common emitter transistor configuration for versatile application. 50 V maximum collector-emitter voltage provides sufficient voltage tolerance. 200 mW maximum power dissipation supports stable device operation. Minimum DC current gain ensures consistent amplification.

High operating temperature rating suits diverse environments. Small form factor aids in compact electronic system design. Integrated resistors enable direct drive from logic-level signals. Surface mount SOT-323FL package provides assembly efficiency.

Suited for digital switching and amplification in electronics industries.
