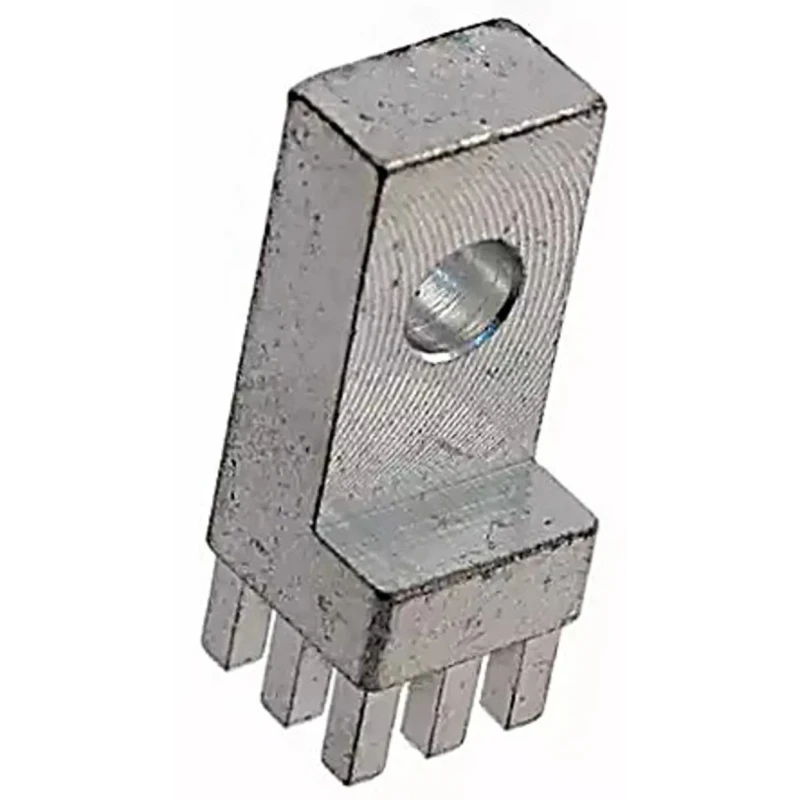

Wurth Elektronik Brass Screw Terminal Right Angle 130A REDCUBE Series 7461066

Free Delivery in India | Lowest Global Shipping Charges

Wurth Elektronik Brass Screw Terminal Right Angle 130A REDCUBE Series 7461066

Name: Wurth Elektronik Brass Screw Terminal Right Angle 130A REDCUBE Series 7461066
Brand: Wurth Elektronik
SKU: 189017



Category Screw Terminals Brand Wurth Elektronik Condition New

Specifications

Country of Origin	China
Screw Size	M3
Brand	Wurth Elektronik
Orientation	Right Angle
Body Material	Brass
Current	130A
Model	7461066
Series	REDCUBE
Number of Legs	9
Number of Rows	3
Pitch	2.54mm
Body Plating	Tin

Key Features

Supports current transfer up to approximately 300A onto PCB.
Press-fit technology ensures gas tight and vibration resistant connection.
Constructed from brass body with tin plating for durability.
Features 9 legs in 3 rows for secure mounting and electrical contact.
Right angle orientation optimizes PCB layout and connectivity.
Eliminates need for soldering, reducing thermal stress on PCBs.
Compatible with M3 screw size for easy installation.
Designed for industrial applications including wind, solar, medical, automotive, and agricultural sectors.

Product Description

Wurth Elektronik 7461066 Brass Screw Terminal Right Angle 130A is a premium PCB mounting power element designed for efficient current transfer of up to approximately 300A. Featuring a rugged brass body with tin plating, this terminal provides excellent mechanical robustness and electrical performance.

This right angle screw terminal is engineered with press-fit technology to form a reliable, gas-tight connection to the PCB, enhancing vibration and shock resistance while eliminating the need for soldering. The terminal's 9-leg configuration arranged in 3 rows offers a strong retention force and secure mounting using M3 screws.

The design simplifies production integration with straightforward press-fit tooling, making it highly cost-effective for volume manufacturing. Its right angle orientation optimizes space on the PCB and facilitates reliable power and signal distribution.

Applications for this terminal span multiple industries such as renewable energy (wind and solar power), medical equipment, industrial automation, agriculture, and automotive systems. It is particularly useful in power supplies, converters, battery systems including emergency power supplies, and DC to AC converter setups.

Supports current transfer up to approximately 300A onto PCB. Press-fit technology ensures gas tight and vibration resistant connection. Constructed from brass body with tin plating for durability. Features 9 legs in 3 rows for secure mounting and electrical contact.

Right angle orientation optimizes PCB layout and connectivity. Eliminates need for soldering, reducing thermal stress on PCBs. Compatible with M3 screw size for easy installation. Designed for industrial applications including wind, solar, medical, automotive, and agricultural sectors.

Part of the Wurth REDCUBE series of power elements. Explore Wurth Elektronik products and related electronic components in the Screw Terminals category on EnvMart for reliable industrial and commercial solutions.
