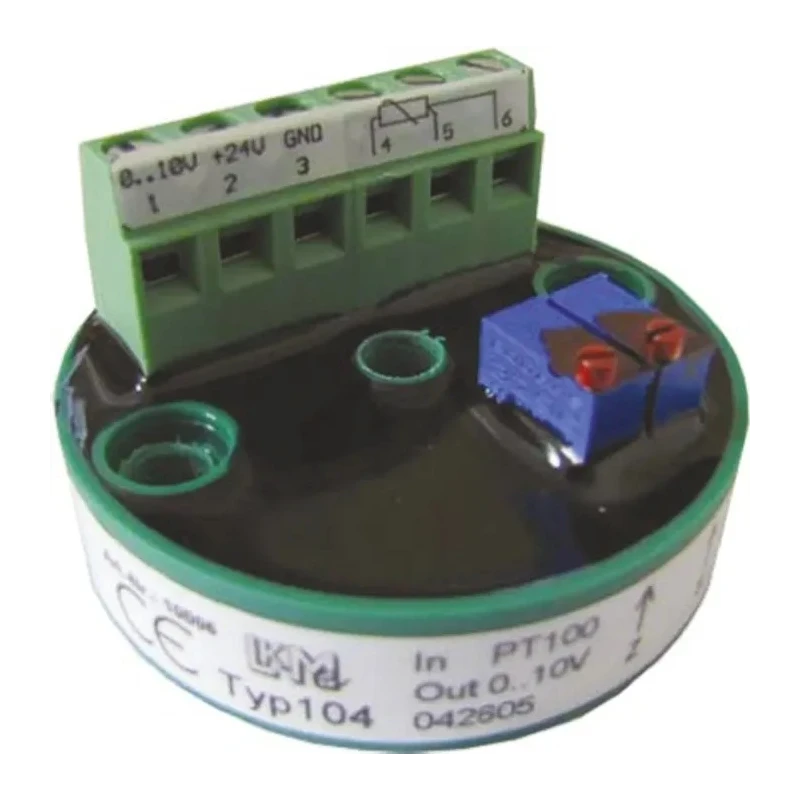

LKMelectronic Temperature Transmitter PT100 Input 36V, Operating Temp -40°C to 85°C LKM 104/2

LKMelectronic LKM 104/2 Temperature Transmitter is a precise analogue transducer designed for use with PT100 sensors and type K thermocouples. Operating at a supply voltage of 36V, it supports a wide temperature input range with a maximum input temperature of 830°C and an operating temperature range from -40°C to 85°C. The device's compact form factor has a diameter of 44mm and a depth of 26.5mm, suitable for terminal head installation (DIN Shape B).

This temperature transmitter includes advanced features such as sensor break and short-circuit detection, enhancing operational safety. The screw terminals accommodate wire sizes between 0.13 mm² and 1.5 mm², ensuring reliable electrical connections.

The product complies with EMC standards EN 61326-1:2006 and EN 61326-2-3:2006, guaranteeing immunity to electromagnetic interference and suitability for industrial environments.

LKMelectronic LKM 104/2 is designed primarily for industrial process control applications where accurate temperature sensing and transmission are critical. It is suitable for use in laboratory, manufacturing, HVAC, and water treatment sectors requiring robust temperature monitoring.

Designed for PT100 input sensors for accurate temperature measurement. Compact 44mm diameter and 26.5mm depth suitable for DIN Shape B terminal heads. Supports sensor break and short-circuit detection for enhanced safety.

Wide temperature input range from 0°C to 830°C with operating temperatures -40°C to 85°C. Compliant with EN 61326-1:2006 and EN 61326-2-3:2006 EMC standards. Screw terminals accepting 0.13 to 1.5 mm² wire clamping range.

Manufactured in Germany with high-quality engineering standards. Explore LKMelectronic Temperature Transmitters in EnvMart's Industrial Automation Systems category for reliable process control solutions.
