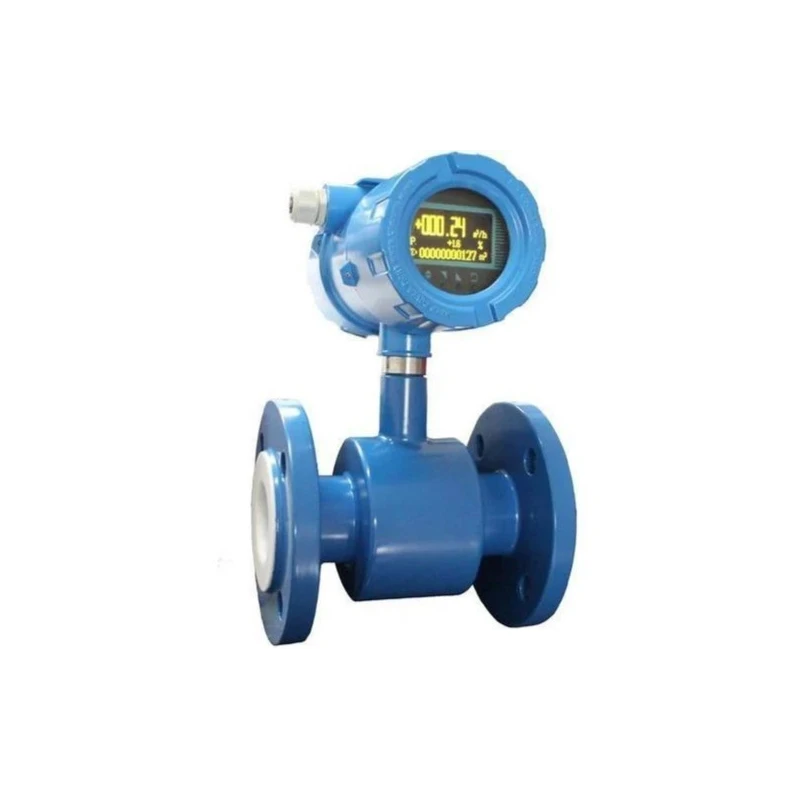

Electro Magnetic Flow Meter With Size 25 mm
Specifications
| Repeatability | 0.2% of Span |
|---|---|
| Size | 25 |
| Power Supply | 24 - 48 V DC or 80 - 300 V AC Solar powered |
| Operating Temperature | 150 degree C max |
| Working Temperature | 1800 C for PTFE Lining & 850 C for Rubber LIining |
| Operating Pressure | 10 Kg/cm2 max |
| End Connection | Flange/Wafer/Tri-clamp/SMS |
| Application Media | Liquids |
| Line Size | 15 NB to 2000 NB |
| Protection Class for Transmitter | IP 65/IP66/IP67 |
| Display version | Integral/Remote |
Key Features
- High efficiency
- Flow Meter transmitter specially used for various industrial applications.
Product Description
Electro Magnetic Flow Meter With Size 25 mm are based on Faraday's Law of Electromagnetic Induction.In an Electromagnetic Flowmeter, the magnetic Field is generated by a set of coils. As the conductive liquid passes through the electromagnetic Field, an electric voltage is induced in the liquid which is directly proportional to its velocity. This induced voltage is perpendicular to both, the liquid ?ow direction and the electromagnetic Field direction
- It measures the flow rate of conductive liquids & slurries in closed pipes.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum operating temperature of this model is 150 degrees Celsius. For PTFE lining, it can withstand up to 180 degrees Celsius, and for rubber lining, it can handle up to 85 degrees Celsius.
It requires a power supply of 24 - 48 V DC or 80 - 300 V AC and can also be solar powered.
This unit supports various end connections including Flange, Wafer, Tri-clamp, and SMS.
The repeatability of this model is 0.2% of Span.
The maximum operating pressure for this model is 10 Kg/cm².
It accommodates line sizes from 15 NB to 2000 NB.
It is designed to measure the flow rate of conductive liquids and slurries in closed pipes.
The protection class for the transmitter is IP 65/IP66/IP67.
It operates based on Faraday's Law of Electromagnetic Induction, where a magnetic field induces an electric voltage proportional to the velocity of the conductive liquid passing through it.
The size of this electromagnetic flow meter is 25 mm.
Installation requirements are not explicitly stated, but it is designed for use in closed pipes with appropriate end connections.
