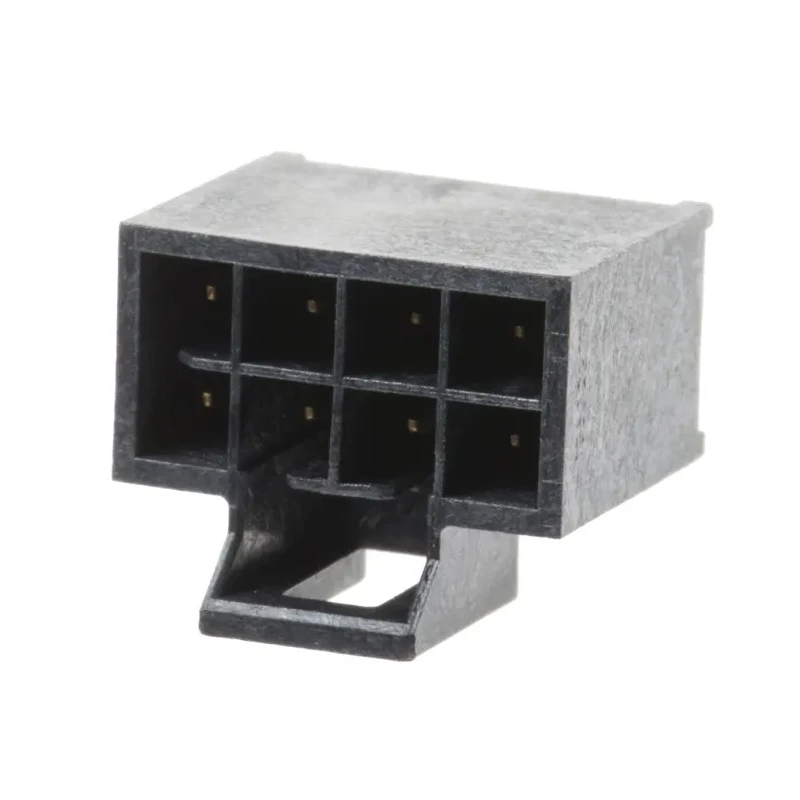

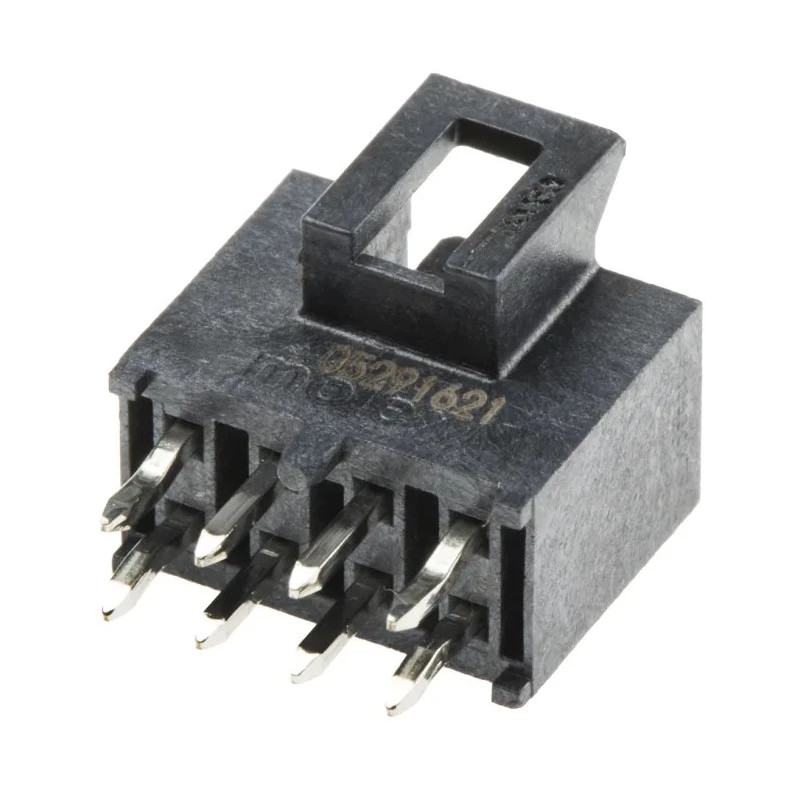

Molex Nano-Fit Series Straight Through Hole PCB Header, 8 Contact, 2.5 mm Pitch, 2 Row, Shrouded 105310-1208

Molex 105310-1208 Nano-Fit Series Straight Through Hole PCB Header is a Wire-to-Board connector featuring 8 male contacts arranged in 2 rows with a 2.5 mm pitch. The shrouded design provides enhanced protection and full electrical isolation of the contacts, significantly reducing the risk of arcing and shorting during operation and handling.

The compact footprint achieves up to 69% PCB space savings, improving design flexibility in tight spaces. Its scoop proof contacts prevent damage caused by misaligned mating, while the housing's polarization and keying features aid in correct installation, reducing error risks. A secure connection is guaranteed through a positive locking mechanism accompanied by tactile feedback and an audible click confirming mating completion.

Constructed with Liquid Crystal Polymer housing capable of withstanding temperatures up to 260°C, this PCB header is suitable for reflow soldering processes, enabling cost-effective manufacturing. The gold-plated brass contacts provide reliable conductivity and corrosion resistance. The through-hole mounting and solder termination with a tail pin length of 3.2 mm make it compatible with a broad range of PCB designs.

This PCB header is designed for demanding industrial, telecommunications, consumer appliance, automotive, aerospace, defense, industrial automation, and medical equipment applications where compact size, reliability, and secure connections are critical.

Compact size offers a 69% PCB space saving design. Fully isolated contacts prevent arcing and shorting. Scoop proof contacts protect against misalignment damage. Positive locking mechanism ensures a secure connection with audible mating confirmation.

Polarization and keying ensure accurate alignment during installation. Liquid Crystal Polymer housing supports reflow processing temperatures up to 260°C. Current rating of 6.5 A and voltage rating of 300 V. Gold-plated brass contacts for excellent conductivity and corrosion resistance.
