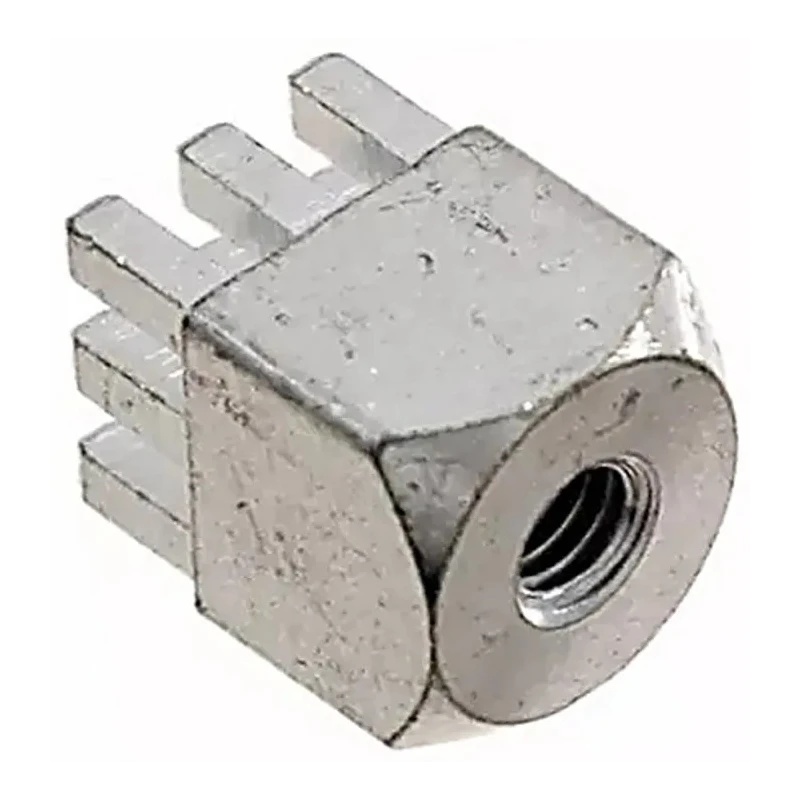

Wurth Elektronik Brass Screw Terminal, Vertical Orientation, 160A Current, Snap-In, 2.54mm Pitch, 9 Legs, 3 Rows 7461093

Wurth Elektronik 7461093 Brass Screw Terminal is a vertical orientation power element rated for 160A current, designed to deliver high reliability and ease of installation in electronic assemblies.

This screw terminal is fabricated from brass with tin plating for excellent conductivity and corrosion resistance. It features a 2.54 mm pitch and a 9-leg configuration arranged in 3 rows, facilitating robust and stable electrical connections on PCBs.

The product employs press-fit technology, providing an environmentally stable, gas-tight electrical connection. This method produces a high retention force to the PCB, outperforming traditional solder or screw connections by enhancing vibration and shock resistance. The press-fit design eliminates the need for soldering, thereby reducing thermal load and simplifying manufacturing.

Wurth Elektronik's REDCUBE series Screw Terminals are engineered for efficient high current transfer, supporting up to approximately 300A. These terminals are widely applicable across various industrial sectors including automotive, medical, wind and solar power systems, industrial machinery, agricultural equipment, and emergency power supply systems.

Installation is simplified and cost-effective due to the requirement for only basic press-fit tooling. The M3 screw size further enhances the terminal’s compatibility with standard wiring configurations.

Made of brass body material with tin plating for corrosion resistance. Features a 2.54 mm pitch and 9 legs arranged in 3 rows for robust connection. Utilizes press-fit technology to ensure gas-tight secure PCB attachment.

Supports high current transfer up to approximately 300A with rugged construction. Eliminates the need for soldering, reducing thermal stress on PCB. Resistant to vibration and shock, suitable for demanding industrial environments.

Compatible with M3 screw size for wire termination. Part of the REDCUBE series optimized for power electronics applications. Manufactured in China with strict quality standards.

This product is ideal for power supplies, converters, battery management systems, and DC-AC conversion, making it an essential component for professional and industrial electronic solutions.
