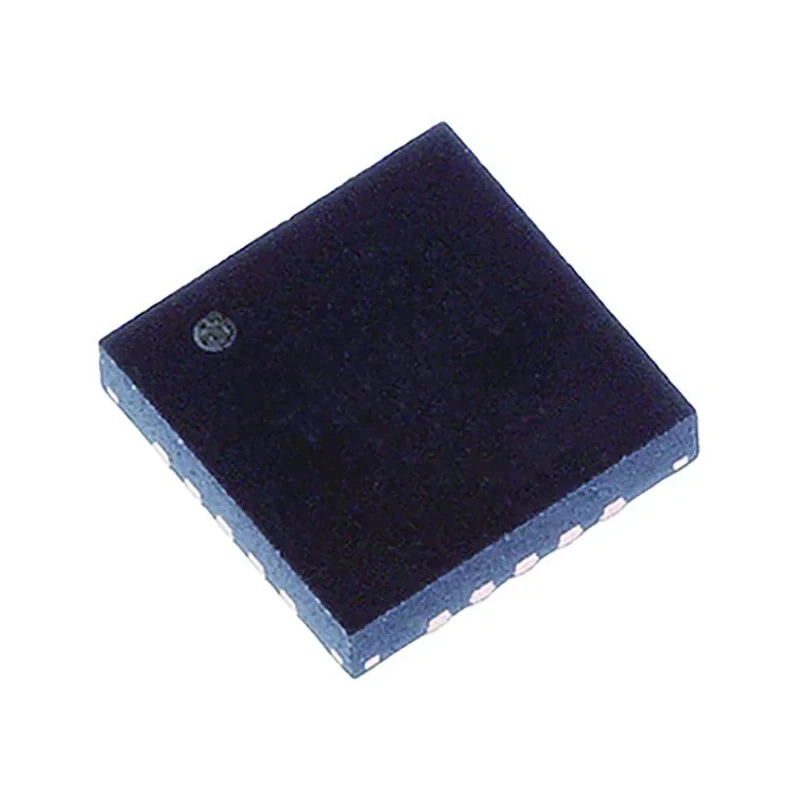

onsemi Dual Operational Amplifier 80 MHz 20-Pin 12V QFN Package NCS5651MNTXG
Specifications
| Country of Origin | India |
|---|---|
| Brand | onsemi |
| Height | 0.95mm |
| Length | 4mm |
| Model | NCS5651MNTXG |
| Width | 4mm |
| Mount Type | Surface |
| Series | NCS5651 |
| Output Current | 1.5A |
| Maximum Operating Temperature | 125°C |
| Package Type | QFN |
| Minimum Operating Temperature | -40°C |
| Number Of Channels | 2 |
| Pin Count | 20 |
| Maximum Supply Voltage | 12V |
| Minimum Supply Voltage | 6V |
| GBP - Gain Bandwidth Product | 80MHz |
| Input Bias Current | 1 nA |
| Vos - Input Offset Voltage | 10 mV |
| Slew Rate | 60V/μs |
Key Features
- Device offers two operational amplifiers optimized for high current and low distortion applications.
- Output amplifier delivers up to 1.5 A current with rail-to-rail voltage swing within 1 volt of rails.
- Current limit programmable with a single resistor for flexible protection.
- Includes thermal warning and thermal error flags with shutdown capability to protect the device.
- Compact 20-Pin QFN package with 4 mm length, 4 mm width and 0.95 mm height suitable for surface mounting.
- Operates within a wide temperature range from -40°C to 125°C ensuring reliability in harsh environments.
- Ideal for power line communication, actuator, and motor driver applications requiring robust amplifiers.
- Flexible 4th-order low-pass filtering and unity gain buffer configurations are supported.
Product Description
onsemi NCS5651MNTXG is a dual operational amplifier featuring an 80 MHz gain bandwidth product, provided in a compact 20-Pin QFN package designed for surface mount assemblies. It supports a supply voltage range of 6V to 12V and is intended for applications requiring high output current and low distortion.
This device employs a high-efficiency Class A/B architecture optimized for power line communication (PLC) modems and robust power amplification needs. It integrates two operational amplifiers: a high current output amplifier capable of sourcing 1.5 A with rail-to-rail voltage operation, and a small-signal amplifier configurable as a unity gain buffer or part of a 4-pole low-pass filter.
Designed for reliable operation in harsh environments, the NCS5651MNTXG features two independent thermal flags with hysteresis to warn and protect against over-temperature conditions. The thermal warning flag can be customized for threshold setting, while the thermal error flag initiates shutdown upon exceeding 150°C internal junction temperature. Current limiting is programmable through a single resistor, enhancing device protection.
With a small footprint of 4 mm length, 4 mm width, and 0.95 mm height, this surface mount device fits compact industrial designs and automotive applications, although it is not rated as an automotive standard device. It supports operation from -40°C to 125°C ensuring performance across a wide temperature range.
The NCS5651MNTXG is ideal for industrial sectors including power line communications, motor driver circuits, actuators, and other applications demanding robust power amplifiers with built-in diagnostics.
Its rail-to-rail output stage and programmable thermal flags simplify integration and improve system reliability. Current limit and thermal error functions reduce risk of device damage from overheating or overcurrent conditions.
The device’s compact QFN package supports automated assembly and space-limited designs. Typical uses include manufacturing, industrial automation, HVAC, and automotive electronics. Explore more Operational Amplifiers and semiconductors from onsemi on EnvMart to enhance your industrial and electronic component selections.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The gain bandwidth product of this model is 80 MHz.
It can deliver up to 1.5 A of output current.
The supply voltage range for this device is from 6V to 12V.
The compact QFN package has dimensions of 4 mm length, 4 mm width, and 0.95 mm height.
It operates within a temperature range of -40°C to 125°C.
This model is suitable for applications such as power line communication, motor driver circuits, and actuators.
It supports surface mounting due to its QFN package design.
It includes thermal warning flags, thermal error flags, and programmable current limiting for protection.
The current limit is programmable through a single resistor, allowing for flexible protection settings.
The slew rate of this operational amplifier is 60 V/μs.
The input offset voltage is specified at 10 mV.
This operational amplifier features two channels.
