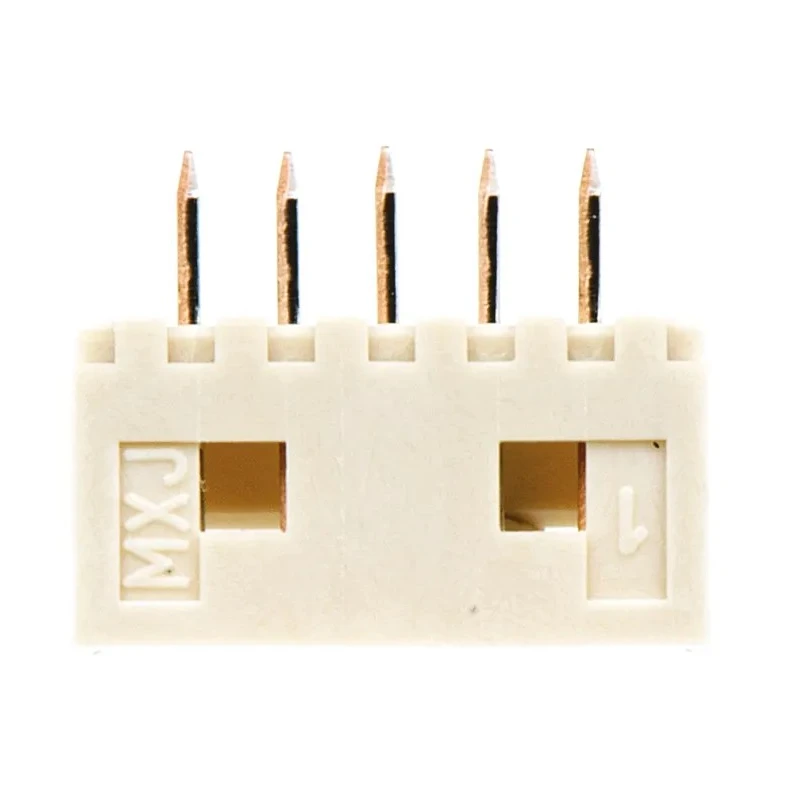

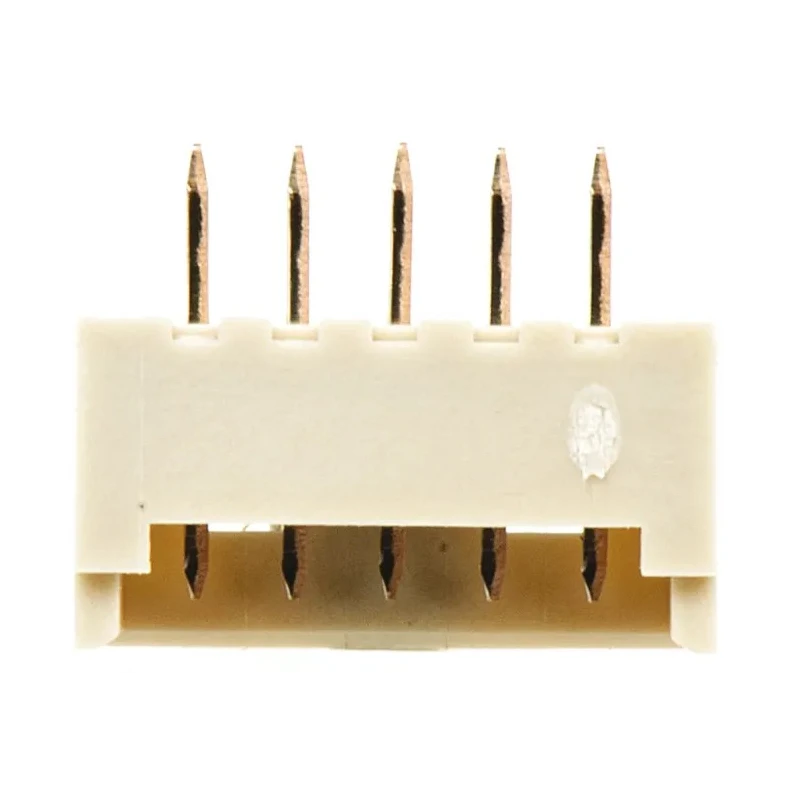

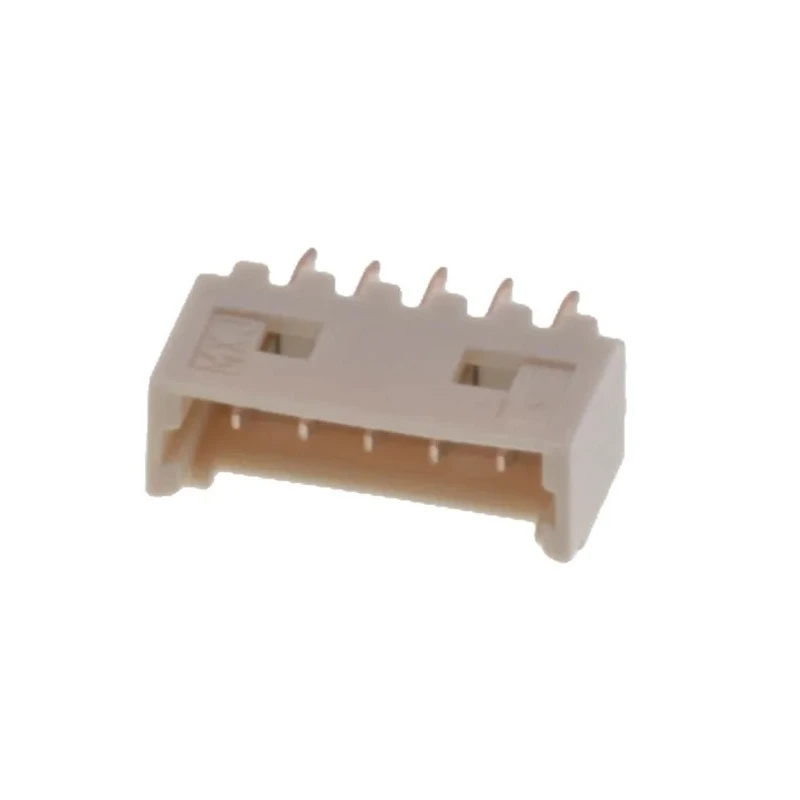

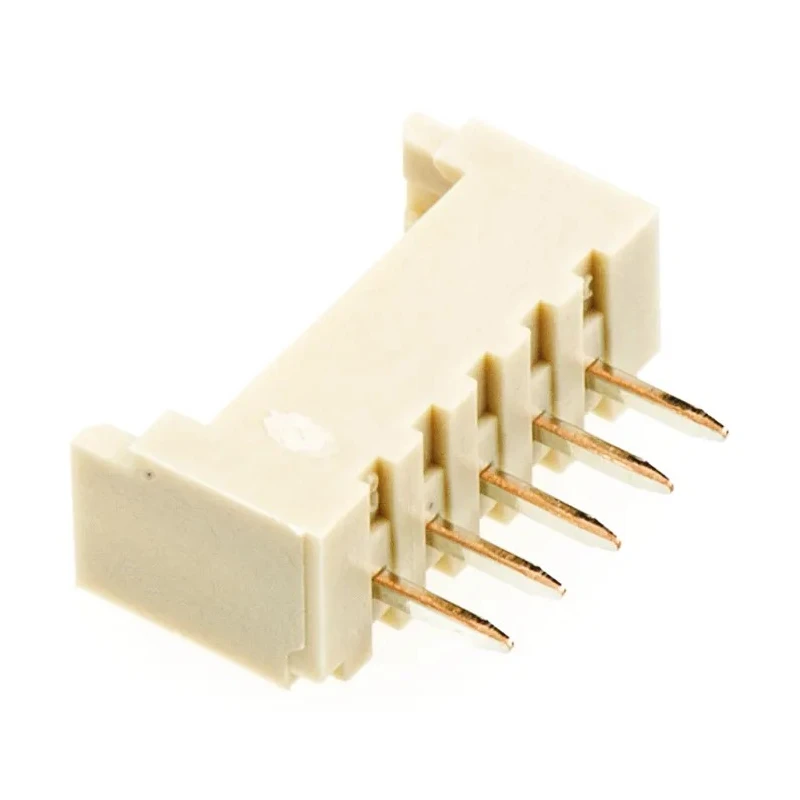

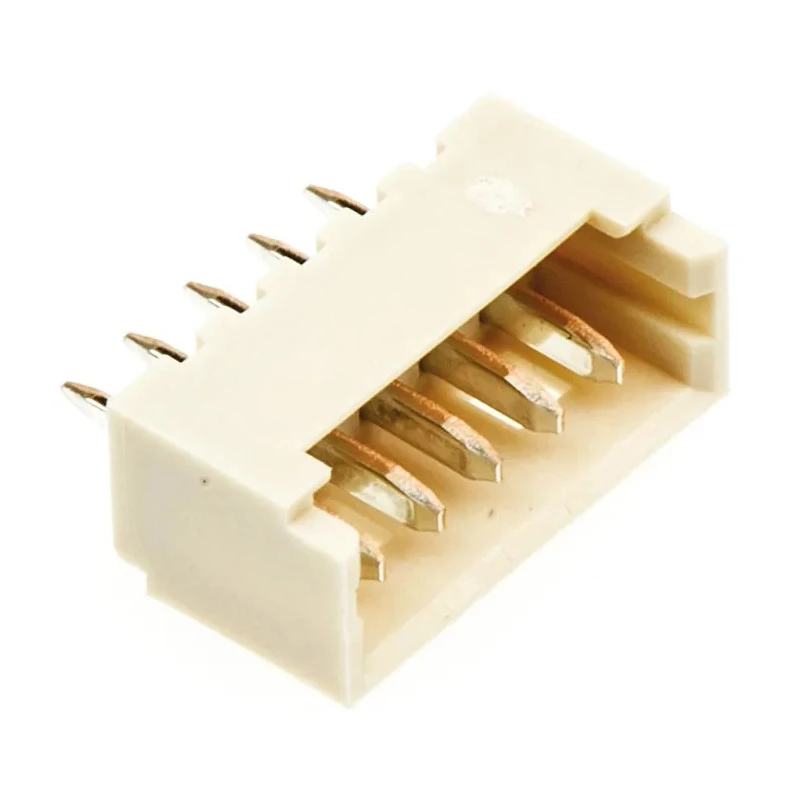

Molex PicoBlade Series Straight Through Hole PCB Header 5 Contact 1.25 mm Pitch 1 Row Shrouded 53047-0510

Molex 53047-0510 PicoBlade Series Straight Through Hole PCB Header is a high-quality connector designed for wire-to-board interconnections in electronics. This PCB header features 5 male contacts arranged in a single row with a 1.25 mm pitch, providing reliable and compact signal transmission. The connector utilizes a nylon housing which is shrouded to protect the contacts, enhancing durability and ensuring secure mating through friction lock mechanisms.

The phosphor bronze contacts are plated with tin, ensuring high conductivity and resistance to corrosion, making it suitable for long-term and stable electrical connections. Rated for 1A current and 125V voltage, this header is ideal for low-voltage applications.

Designed to operate within a broad temperature range from -40°C to +85°C, it can be employed in demanding industrial and commercial environments such as mobile devices, digital imaging, and consumer electronics. The through-hole mount type with a 2.3 mm tail pin length makes it suitable for soldering onto PCBs, enabling secure mechanical retention.

Its compact 1.25 mm pitch allows PCB space savings while maintaining a robust connection performance. The friction lock mechanism and fully shrouded housing prevent accidental unmating and provide mechanical protection, supporting reliability in vibration-prone applications.

Applications for this Molex PicoBlade header include mobile phones, digital cameras, and Blu-ray/DVD players, offering a flame-resistant choice that enhances safety by terminating combustion within 10 seconds in fire situations.

Designed with a 1.25 mm pitch providing compact spacing for high-density PCB applications. Constructed using durable nylon housing material ensuring long-term mechanical stability. Phosphor bronze contacts plated with tin for excellent conductivity and corrosion resistance.

Rated for 1A current and 125V voltage, ideal for low-voltage electronic devices. Operating temperature range from -40°C to +85°C for reliable performance in harsh environments. Offers a friction lock for secure mating preventing accidental disconnection.

Tail pin length of 2.3 mm suited for through-hole solder mounting on PCBs. Fully shrouded design protects contacts from mechanical damage and prevents mis-mating. Lightweight and compact design minimizes PCB space usage while maintaining functionality.

Applications include mobile phones, digital cameras, Blu-ray and DVD players requiring robust wire-to-board connections. Explore the full range of PCB Headers and connectors on EnvMart for versatile industrial and commercial electronic component solutions.
