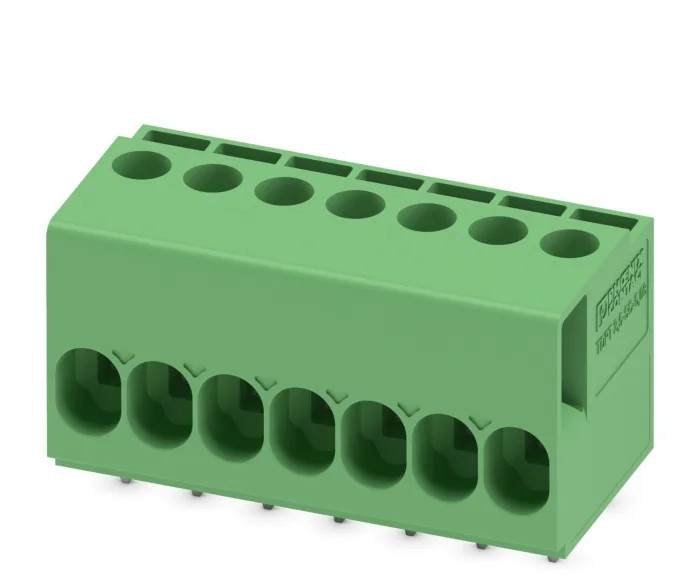

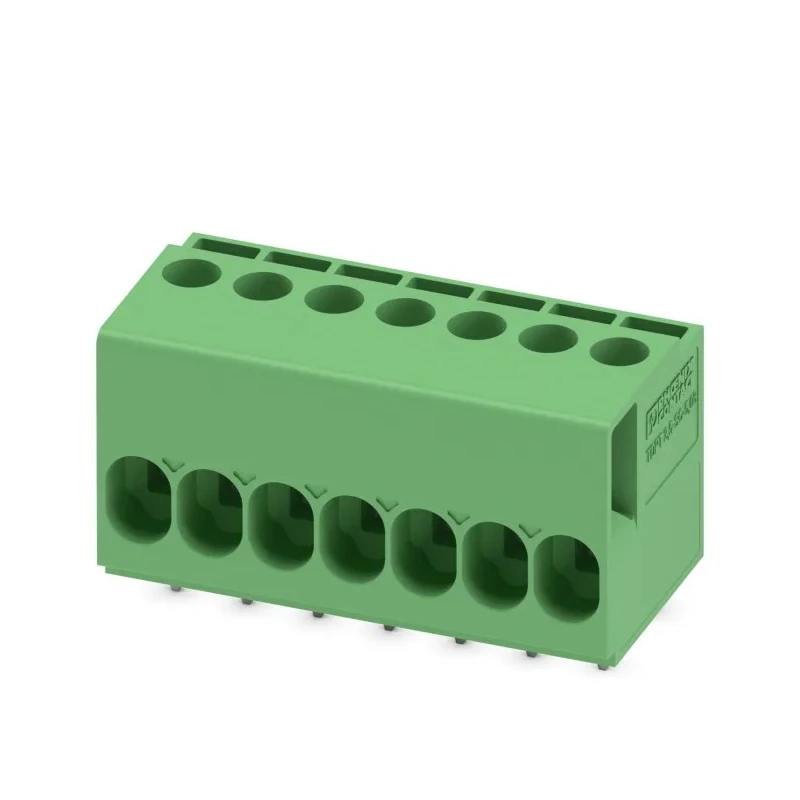

Phoenix Contact PCB Terminal Block 7-Contact 5.08 mm Pitch Wave Soldering Mount 400V 24A 1017496
Specifications
| Country of Origin | China |
|---|---|
| Voltage | 400V |
| Brand | Phoenix Contact |
| Colour | Green |
| Orientation | Straight |
| Current | 24A |
| Length | 18mm |
| Model | 1017496 |
| Depth | 19mm |
| Width | 36.36mm |
| Mount Type | Wave Soldering Mount |
| Series | TDPT 2.5/ 7-SC-5.08 |
| Number of Rows | 1 |
| Pitch | 5.08mm |
| Standards/Approvals | WEEE/RoHS-compliant |
| Number of Contacts | 7 |
| Minimum Wire Size mm² | 0.2mm² |
| Maximum Wire Size mm² | 4mm² |
| Minimum Wire Size AWG | 24AWG |
| Maximum Wire Size AWG | 12AWG |
| Wire Connection Method | Screw |
Key Features
- Supports up to 24 A current at 400 V voltage rating.
- Features 7 straight contacts arranged in a single row.
- Mount type is wave soldering to ensure reliable PCB mounting.
- Wire connection method uses screw terminals providing secure fastening.
- Compatible with wire sizes from 0.2 mm² to 4 mm² or AWG 24 to AWG 12.
- Constructed with copper alloy contacts for durability and conductivity.
- Pitch size of 5.08 mm offers standard spacing for PCB layouts.
- Complies with WEEE and RoHS environmental standards.
Product Description
Phoenix Contact 1017496 PCB Terminal Block 7-Contact 5.08 mm Pitch Wave Soldering Mount rated for 400 V and 24 A current. This terminal block is designed for industrial, electronic, and manufacturing applications requiring reliable PCB connectivity.
The product features a single-row straight orientation with 7 contacts providing secure and efficient wire connection through screws. Its copper alloy contacts ensure excellent electrical conductivity and durability under industrial environments.
The terminal block supports wire sizes ranging from 0.2 mm² to 4 mm² (AWG 24 to AWG 12), making it versatile for various wiring needs. The pitch of 5.08 mm suits standard PCB layouts, optimizing space while maintaining connectivity standards.
The wave soldering mount type facilitates ease of PCB assembly and a reliable mechanical connection. Phoenix Contact ensures compliance with relevant RoHS and WEEE standards, reflecting its suitability for environmentally conscious manufacturing.
Typical applications include power connectors in electronic equipment, automation systems, and industrial PCB wiring where secure connections and current ratings up to 24 A are necessary.
Supports up to 24 A current at 400 V voltage rating. Features 7 straight contacts arranged in a single row. Mount type is wave soldering to ensure reliable PCB mounting. Wire connection method uses screw terminals providing secure fastening.
Compatible with wire sizes from 0.2 mm² to 4 mm² or AWG 24 to AWG 12. Constructed with copper alloy contacts for durability and conductivity. Pitch size of 5.08 mm offers standard spacing for PCB layouts. Complies with WEEE and RoHS environmental standards.
Dimensions are 36.36 mm width, 18 mm length, and 19 mm depth.
Explore the Electronics Components category at EnvMart for a comprehensive range of professional terminal blocks and PCB connectors to suit your industrial and electronic assembly needs.
Explore more products in our PCB Terminal Blocks category.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
This terminal block is rated for 400 V voltage and 24 A current.
The pitch size of this model is 5.08 mm, which is suitable for standard PCB layouts.
It features 7 straight contacts arranged in a single row.
This unit supports wire sizes from 0.2 mm² to 4 mm² or AWG 24 to AWG 12.
It uses a wave soldering mount type for reliable PCB mounting.
The wire connection method utilizes screw terminals for secure fastening.
The dimensions are 36.36 mm in width, 18 mm in length, and 19 mm in depth.
Yes, it complies with WEEE and RoHS environmental standards.
The contacts are constructed from a copper alloy, ensuring good conductivity.
This model belongs to the TDPT 2.5/ 7-SC-5.08 series.
It is suitable for industrial, electronic, and manufacturing applications requiring reliable PCB connectivity.
The country of origin for this terminal block is China.
