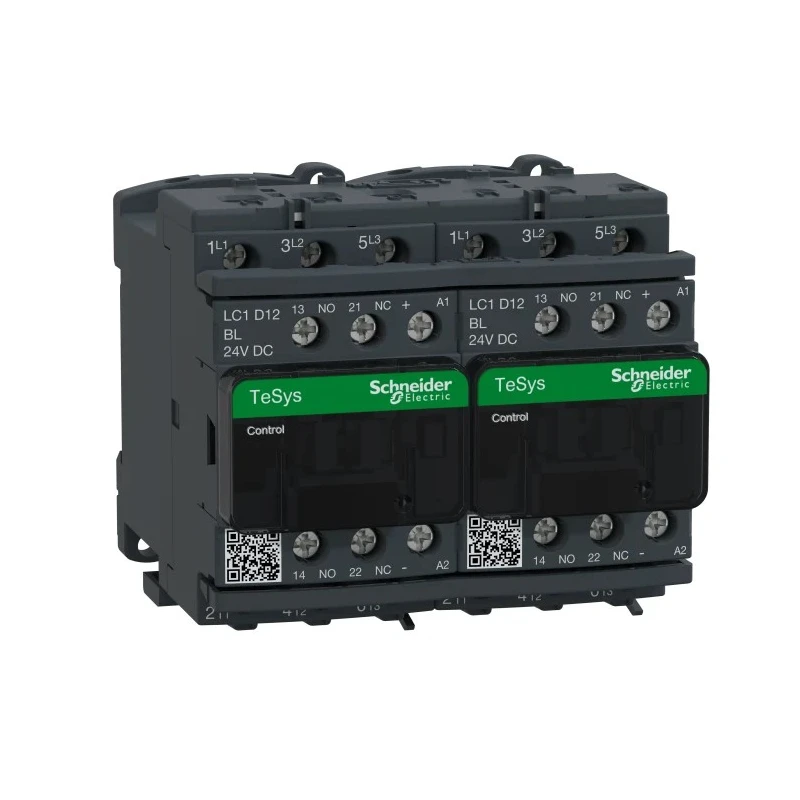

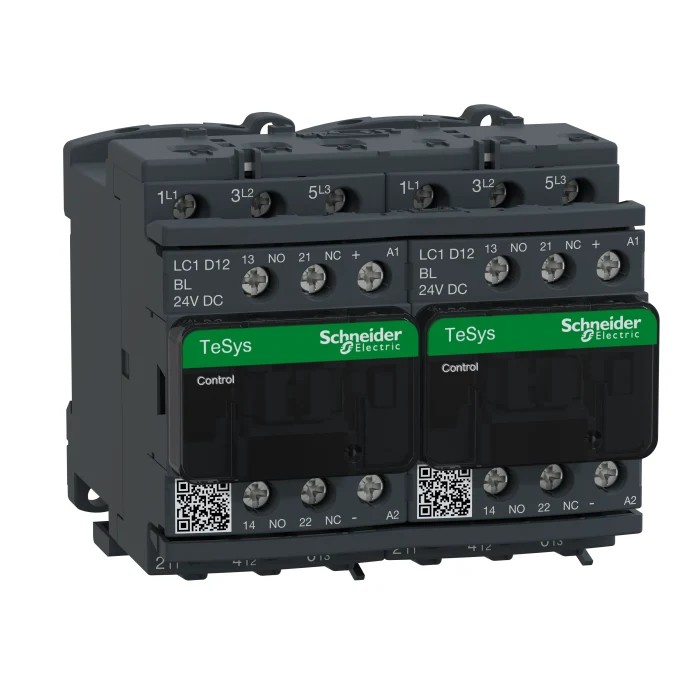

Schneider Electric LC2D Contactor, 24V DC Coil, 3-Pole, 12 A, 5.5 kW Power Rating, 3 NO, 690V AC LC2D12BL
Specifications
| Country of Origin | India |
|---|---|
| Brand | Schneider Electric |
| Function | Motor Control, Resistive Load, Reversing |
| Length | 77mm |
| Model | LC2D12BL |
| Depth | 95mm |
| Width | 90mm |
| Mount Type | DIN Rail |
| Series | LC2D |
| Power Rating | 5.5kW |
| Maximum Operating Temperature | 50°C |
| Minimum Operating Temperature | -25°C |
| Terminal type | Screw |
| Number of Poles | 3 |
| Standards/Approvals | CCC, CSA, EAC, IEC, RoHS, UL |
| Contact Voltage | 690V ac |
| Coil Voltage | 24V dc |
| Normal State Configuration | 3 NO |
| Better World Claim | Designed for Disassembly |
| Contact Current | 12A |
| Number of Auxiliary Contacts | 2 |
| Auxiliary Contact Configuration | 2 NO/2 NC |
| Operational Current Ie | 12A |
| Control Circuit Voltage Uc | 24V dc |
| Contactor Application | Motor Control, Resistive Load |
| Pole and Throw Configuration | 3 |
| Screw connections | IP20 finger-safe terminals with both North American and International terminal markings |
| AC-1 | This applies to all AC devices with a power factor of at least 0.95. Example of use: resistive load, heating, distribution |
| AC-3 | This applies to squirrel cage motors where breaking occurs while the motor is running |
| Example of use | all squirrel cage motors, lifts, escalators, conveyors, bucket elevators, compressors, pumps, mixers, air conditioning units |
Key Features
- Equipped with 3 normally open contacts for reliable motor control.
- Designed with built-in auxiliary contacts featuring 2 NO and 2 NC for enhanced switching capabilities.
- Mountable on DIN rail or panel with screw connections.
- Safe IP20 finger-safe screw terminals with international terminal markings.
- Operates efficiently in temperatures ranging from -25°C to 50°C.
- Preassembled with reversing power busbar for easy motor control applications.
- Compliant with international standards including IEC, UL, CSA, CCC, EAC, and RoHS.
- Suitable for motor control, resistive load, and reversing functions in industrial automation.
Product Description
Schneider Electric LC2D12BL is a high-quality TeSys D reversing contactor featuring a 24V DC coil and 3 poles with a 12 A rated contact current. It supports a 5.5 kW power rating at 690V AC, making it ideal for motor control and resistive load applications in industrial environments.
This robust contactor includes built-in auxiliary contacts configured as 2 normally open (NO) and 2 normally closed (NC), enabling additional switching functionality. The design incorporates a pre-installed mechanical and electrical interlock for safe reversing motor control.
Its mounting versatility includes secure screw mounting on panels or convenient DIN rail installation. The screw terminals are IP20 finger-safe and are labeled with both North American and International markings, ensuring safe and clear wiring.
Designed to operate reliably within a wide temperature range from -25°C to 50°C, this contactor maintains performance under demanding industrial conditions. The LC2D12BL meets key international standards such as IEC, UL, CSA, CCC, EAC, and RoHS, emphasizing its quality and compliance.
TeSys D contactors utilize a linear translation movement providing double pole breaking, suitable for applications requiring quick and safe motor reversing, such as conveyor systems, lifts, compressors, pumps, and industrial mixers.
This product is part of Schneider Electric's Better World initiative, designed for disassembly and sustainability to support efficient energy use and reduce environmental impact. Equipped with 3 normally open contacts for reliable motor control.
Includes 2 NO and 2 NC auxiliary contacts for enhanced switching capabilities. Mountable on DIN rails or panel with secure screw connections. IP20 finger-safe terminals ensuring operator safety. Wide operating temperature range from -25°C to 50°C.
Complies with multiple international standards ensuring quality and safety. Ideal for motor control, resistive loads, and reversing applications.
Schneider Electric LC2D12BL contactors are widely used in industrial automation, manufacturing, HVAC systems, water treatment plants, and other commercial machinery requiring reliable motor control solutions.
Explore Schneider Electric Contactors and accessories at EnvMart for reliable industrial electrical components.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The LC2D12BL contactor has a power rating of 5.5 kW at 690V AC.
This model operates with a coil voltage of 24V DC.
It features 3 poles, configured as 3 normally open (NO) contacts.
The operating temperature range is from -25°C to 50°C.
It can be mounted on DIN rails or panels using secure screw connections.
The dimensions are 77 mm in length, 90 mm in width, and 95 mm in depth.
It includes 2 normally open (NO) and 2 normally closed (NC) auxiliary contacts for enhanced switching capabilities.
This contactor complies with several international standards including IEC, UL, CSA, CCC, EAC, and RoHS.
The contact current rating is 12 A.
It is suitable for motor control, resistive loads, and reversing applications in industrial automation.
It has IP20 finger-safe screw terminals with both North American and International terminal markings.
The primary functions include motor control, resistive load management, and reversing operations.
