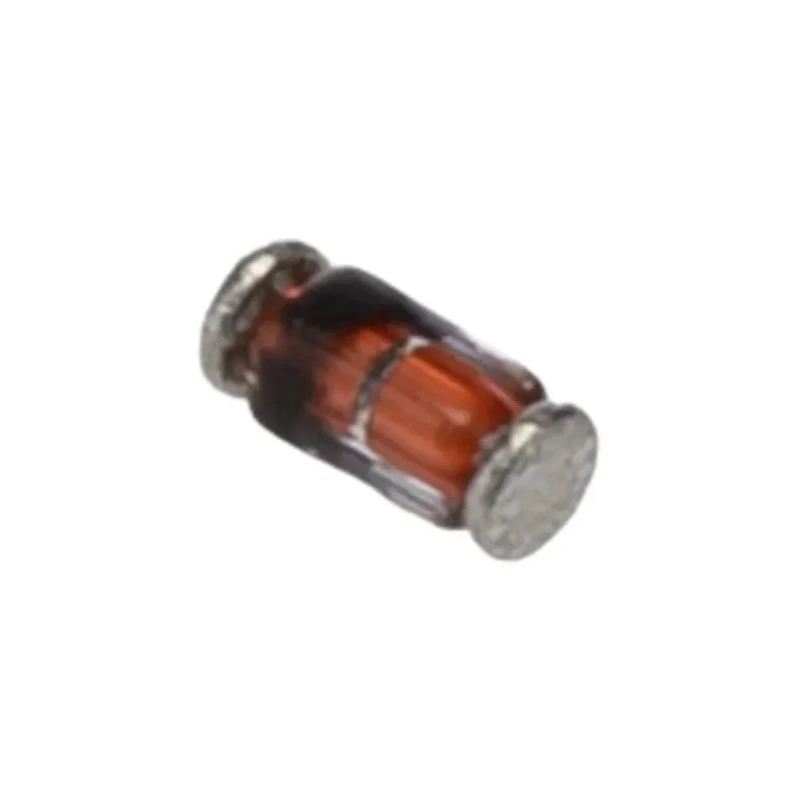

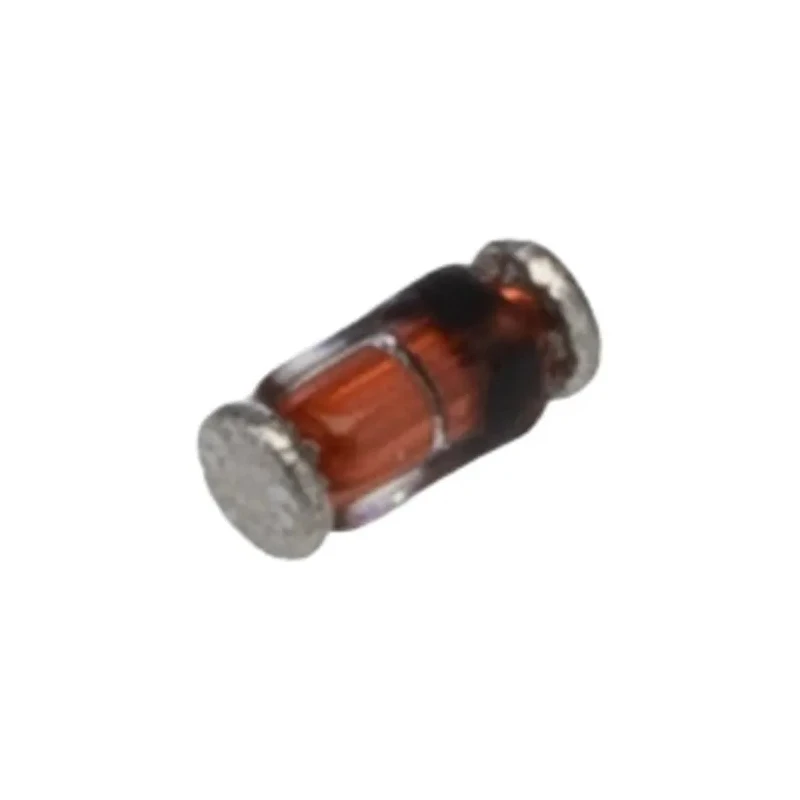

Vishay Silicon Junction Switching Diode, Single, 300 mA, 2-Pin, 100 V Quadro Melf LS4148-GS08

Vishay LS4148-GS08 is a high reliability silicon junction switching diode designed for electronic applications requiring fast switching and low leakage current. It features a single diode configuration in a compact Quadro Melf surface-mount package, making it suitable for automated assembly in electronics manufacturing.

This diode supports a maximum forward current of 300 mA and a peak reverse repetitive voltage of 100 V, ensuring suitability in circuits that require high voltage rectification and protection. It achieves a fast peak reverse recovery time of 4 ns to support high-frequency switching applications with minimal loss.

The device is constructed with a cavity-free glass-passivated junction for enhanced reliability and longevity. The case is molded epoxy over a glass body reviewed to UL 94 V-0 flammability standards, suitable for industrial and commercial electronic products.

Operating temperature ranges from -65°C to 175°C allow deployment in harsh environmental conditions such as industrial, laboratory, and commercial electronics. The diode also features a high forward surge capability up to 2 A to tolerate transient currents.

The matte tin plated leads are solderable according to J-STD-002 and JESD 22-B102 standards, facilitating robust PCB assembly processes. The cathode end is clearly indicated by a color band to avoid polarity errors during installation.

Typical applications include high voltage rectification in CRT and TV devices, snubber circuits for camera flashes, and general-purpose fast switching in power supplies and signal processing circuits.

The diode supports a maximum forward current of 300 mA. It has a peak reverse repetitive voltage of 100 V suitable for high voltage rectification. Fast switching with peak reverse recovery time of 4 nanoseconds ensures high efficiency.

Low leakage current with typical reverse current less than 0.2 µA. Operates reliably across a temperature range from -65°C to 175°C. Compact size dimensions with length 3.5 mm, width 1.7 mm, and height 1.5 mm. Glass passivated junction offers high reliability and fast switching.

Matte tin plated leads for solderability and durability. Color band marking denotes the cathode end for correct polarity identification. Meets commercial grade RoHS compliance with molded epoxy DO-204AL case construction.
