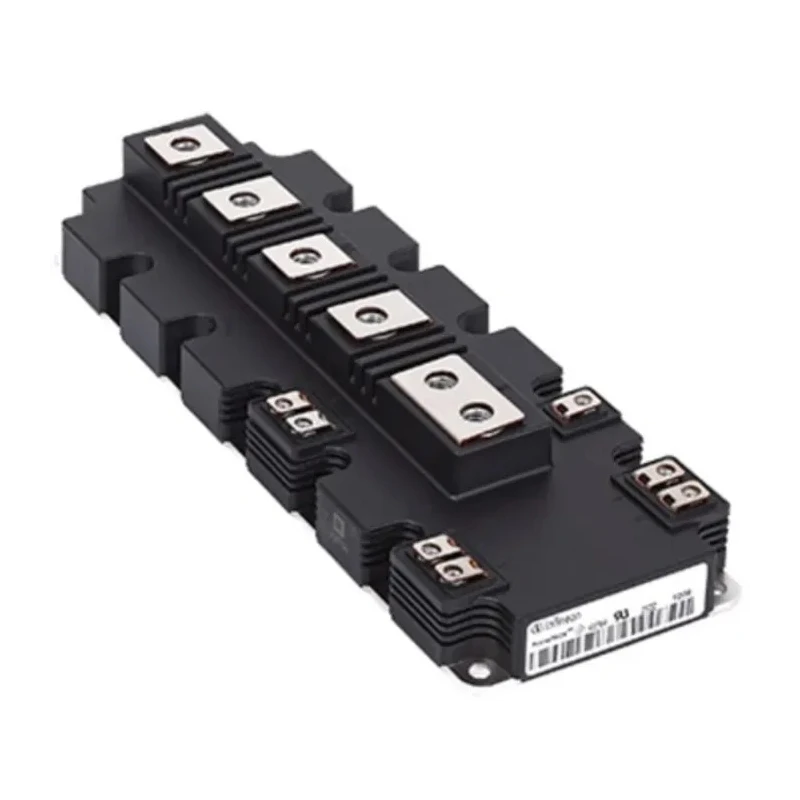

Infineon N-Channel IGBT Module 1400 A 1200 V AG-PRIME3-1 Clamp Mount FF1400R12IP4BOSA1

Infineon FF1400R12IP4BOSA1 is a high-power N-Channel IGBT Module designed for demanding industrial applications requiring robust switching capabilities at elevated voltages and currents. This module supports a maximum continuous collector current of 1400 A and a collector emitter voltage of 1200 V, making it suitable for critical power conversion systems.

The device features an AG-PRIME3-1 package optimized for heavy-duty power semiconductor integration with clamp-style mounting for secure mechanical stability and effective thermal management. It operates reliably across a temperature range from -40°C to 150°C, allowing deployment in extreme industrial environments.

The low saturation voltage of 2.15 V reduces conduction losses, improving system efficiency. Its switching speed of 0.97 microseconds enables fast power conversion necessary for modern motor drives and traction inverters. The gate-emitter voltage is capped at 20 V to ensure safe gate drive margin and device longevity.

This IGBT module conforms to EN 61140 standards, ensuring compliance with international electrical safety requirements. Its compact form factor (250 mm length, 89 mm width, and 38 mm height) facilitates integration into large-scale energy storage converters, utility-scale power modules, and heavy-duty welding power supplies.

Designed for high-power industrial converters and traction inverter power stages. Wide temperature operating range from -40°C to 150°C for demanding applications. Clamp mount style ensures secure installation and thermal conduction.

Low saturation voltage of 2.15 V reduces conduction losses. Maximum power dissipation of 7.65 kW handles intensive thermal loads. Fast switching speed of 0.97 microseconds allows efficient power control. Gate-emitter voltage limit of 20 V protects gate drive circuitry.

Compliant with EN 61140 safety standards for industrial use. Compact package size facilitates integration into power electronic systems.

This N-Channel IGBT module is ideal for use in rail traction applications, industrial motor drives with high current demand, DC-DC converters for large energy storage, and utility-scale welding power supplies. Its robust electrical and mechanical design ensures dependable performance in harsh industrial, manufacturing, transportation, and energy sectors.
