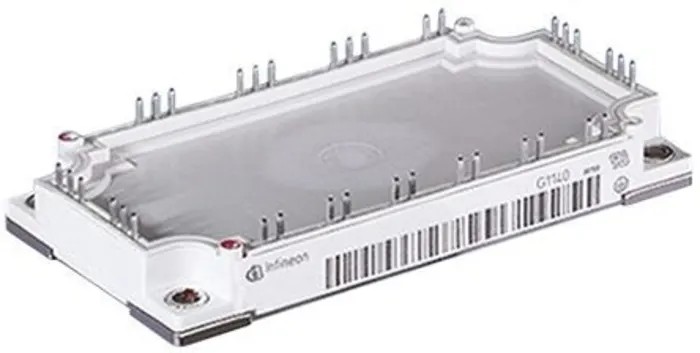

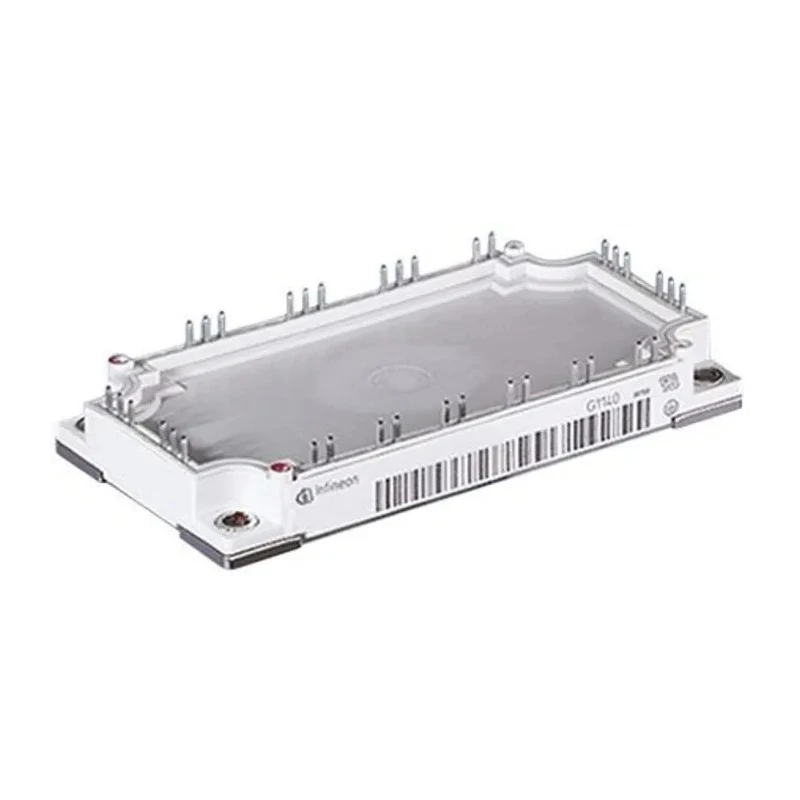

Infineon N-Channel IGBT Module 280A 1200V 35-Pin EconoPACK 3 Clamp Mount FS200R12KT4RBOSA1
Specifications
| Country of Origin | India |
|---|---|
| Brand | Infineon |
| Height | 17mm |
| Length | 122mm |
| Model | FS200R12KT4RBOSA1 |
| Width | 62mm |
| Mount Type | Clamp |
| Maximum Operating Temperature | 150°C |
| Package Type | EconoPACK 3 |
| Minimum Operating Temperature | -40°C |
| Pin Count | 35 |
| Maximum Continuous Collector Current Ic | 280A |
| Maximum Collector Emitter Voltage Vceo | 1200V |
| Maximum Collector Emitter Saturation Voltage VceSAT | 2.15V |
| Channel Type | N |
| Maximum Power Dissipation Pd | 1kW |
| Maximum Gate Emitter Voltage VGEO | 20 V |
Key Features
- This module features a compact 35-pin EconoPACK 3 package with clamp mounting for reliable mechanical and thermal integration.
- It supports operation over a wide temperature range from -40°C up to 150°C ensuring robust performance in harsh environments.
- Maximum power dissipation is rated at 1kW, enabling handling of high power industrial applications efficiently.
- The low collector-emitter saturation voltage of 2.15V reduces conduction losses improving overall efficiency.
- Gate-emitter voltage allowance of 20V provides safe and flexible gate drive control margins.
- Ideal for industrial motor drives, inverter stages in renewable energy systems, UPS, and traction equipment requiring high voltage and current switching.
- Compact physical dimensions of 122mm length, 62mm width, and 17mm height allow dense power assembly integration.
Product Description
Infineon FS200R12KT4RBOSA1 is a high-power N-Channel IGBT Module engineered for demanding industrial power switching applications. This module is specified for a maximum continuous collector current of 280A and a collector-emitter voltage rating of 1200V, making it suitable for robust power control tasks.
The module utilizes the 35-pin EconoPACK 3 package with clamp mounting, providing excellent thermal management via secure mechanical mounting and good electrical layout consistency. With a compact footprint of 122mm by 62mm and a height of 17mm, it supports dense power assemblies in industrial converters.
It is designed to operate reliably under extreme environmental conditions with a temperature range spanning from -40°C to 150°C. The device dissipates up to 1kW power efficiently, ensuring sustained high load operation.
The low maximum collector-emitter saturation voltage (2.15V) helps minimize conduction losses and improve system efficiency. Additionally, the gate-emitter voltage rating of 20V offers adequate control margins for secure gate driving and switching performance.
This IGBT module is especially suited for applications such as industrial motor drives demanding high voltage switching, inverter stages for renewable energy converters, traction and heavy equipment inverters operating in harsh climates, and power supplies including UPS systems with high current requirements. It is also applicable in laboratory and test rigs for development and validation of high-power switching electronics.
This product is packaged with a clamp mounting system to secure the module onto heat sinks for optimal thermal contact and mechanical stability. The EconoPACK 3 module format standardizes the installation, thermal, and electrical interface for industrial power modules.
Compact size ensures suitability for tight layouts without sacrificing power handling capabilities. Wide operating temperature range supports both cold and hot ambient conditions. Low conduction losses contribute to overall energy-efficient system design.
Robust gate-emitter voltage rating enables flexible and safe drive circuit designs. Explore EnvMart's extensive range of IGBT Modules and industrial semiconductor components engineered for reliable and efficient power electronics solutions.
Looking to purchase in bulk?
- Purchase item in bulk quantity
- Get best price for your business
Frequently Asked Questions
The maximum continuous collector current for this model is 280A.
This IGBT module has a collector-emitter voltage rating of 1200V.
The maximum power dissipation for this unit is rated at 1kW.
It operates over a wide temperature range from -40°C to 150°C.
The module has a length of 122mm, a width of 62mm, and a height of 17mm.
This IGBT module features a clamp mounting type for secure installation.
The gate-emitter voltage allowance is rated at 20V, providing safe control margins.
The maximum collector-emitter saturation voltage is 2.15V, which helps reduce conduction losses.
It utilizes the EconoPACK 3 package type for effective thermal management.
This model is ideal for industrial motor drives, inverter stages in renewable energy systems, and UPS applications.
The IGBT module has a pin count of 35.
The country of origin for this IGBT module is India.
