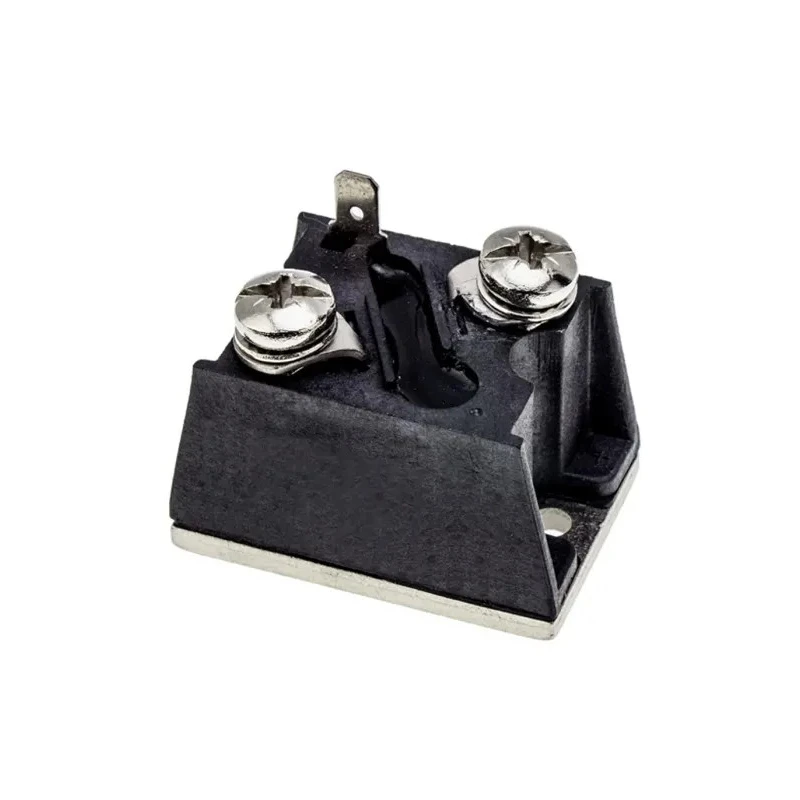

Vishay Thyristor Phase Control SCR Module 600 V, 90 A, 120 mA Gate Trigger Current, Panel Mount VS-T90RIA60

Free Delivery in India | Lowest Global Shipping Charges

Vishay Thyristor Phase Control SCR Module 600 V, 90 A, 120 mA Gate Trigger Current, Panel Mount VS-T90RIA60

Name: Vishay Thyristor Phase Control SCR Module 600 V, 90 A, 120 mA Gate Trigger Current, Panel Mount VS-T90RIA60
Brand: Vishay
SKU: 183007
Price: 54.92 USD
Availability: InStock



Category Thyristor Module Brand Vishay Condition New

Specifications

Country of Origin	India
Brand	Vishay
Model	VS-T90RIA60
Mount Type	Panel
Series	VS-T.RIA
Maximum Operating Temperature	125°C
Package Type	D-55
Minimum Operating Temperature	-40°C
Pin Count	3
Rated Average On-State Current Irms	90A
Thyristor Type	SCR
Repetitive Peak Reverse Voltage VDRM	600V
Surge Current Rating	1.87kA
Maximum Gate Trigger Current Igt	120mA
Maximum Holding Current Ih	200mA
Maximum Gate Trigger Voltage Vgt	2.5V
Peak On-State Voltage	1.55V
Repetitive Peak Off-State Current	0.1mA

Key Features

Rated average on-state current of 90 A ensures robust performance.
Maximum repetitive peak reverse voltage of 600 V suitable for demanding applications.
Surge current rating of 1.87 kA allows handling high transient currents.
Gate trigger current is low at 120 mA for efficient triggering.
Encapsulated with electrically isolated metal base plate for safe mounting.
Panel mount type design simplifies integration into equipment.
Wide operating temperature range from -40°C to 125°C for industrial reliability.
Package type D-55 ensures secure electrical and mechanical connections.

Product Description

Vishay VS-T90RIA60 is a high-performance phase control thyristor (SCR) designed for industrial and electronic power applications. Rated for an on-state current of 90 A and capable of withstanding repetitive peak reverse voltages up to 600 V, this module offers robust operation with surge current rating of 1.87 kA. Its encapsulated design includes a metal base plate electrically isolated to 3500 VRMS, supporting safe panel mounting and ease of installation.

The thyristor requires a low trigger current of 120 mA at the gate and has a maximum gate trigger voltage of 2.5 V, enabling efficient switching and control. It operates reliably over a wide temperature range from -40°C to 125°C, making it suitable for challenging industrial environments such as battery charging systems, welding equipment, plating machinery, regulated power supplies, and temperature or speed control circuits.

Compliant with UL E78996 approvals, the Vishay VS-T90RIA60 is a reliable choice for power electronics requiring solid-state switching and control. The device features three pins and the D-55 package type for durable and secure mechanical and electrical connections. It incorporates safety warnings due to beryllium oxide content, advising against cutting or incineration.

Rated average on-state current of 90 A ensures robust performance. Maximum repetitive peak reverse voltage of 600 V suitable for demanding applications. Surge current rating of 1.87 kA allows handling high transient currents.

Gate trigger current is low at 120 mA for efficient triggering. Encapsulated with electrically isolated metal base plate for safe mounting. Panel mount type design simplifies integration into equipment. Wide operating temperature range from -40°C to 125°C for industrial reliability.

Package type D-55 ensures secure electrical and mechanical connections. Application in battery chargers, welders, regulated power supplies, and speed control circuits. Compliant with UL E78996 approval for safety assurance.
