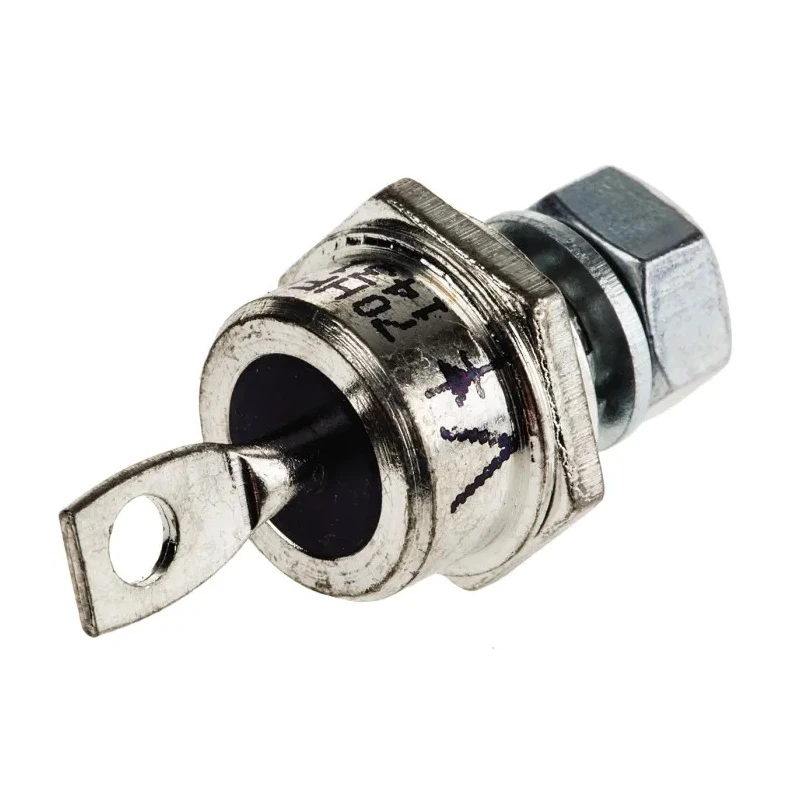

Vishay 600 V 70 A Switching Diode 2-Pin DO-203AB VS-70HF60

Vishay VS-70HF60 is a high-efficiency switching diode designed to handle up to 70 amperes continuous forward current and blocking voltage of 600 volts. Housed in a robust DO-203AB package with a screw mount type, the diode features a stud cathode configuration with 2 pins, ideal for reliable rectification in industrial and electronic circuits.

This standard recovery diode operates over a wide temperature range from -65°C to 180°C, ensuring performance stability in harsh operating conditions. With a peak non-repetitive forward surge current rating of 1.3 kiloamperes, it can withstand transient overloads without damage.

The maximum forward voltage of 1.35 volts helps reduce conduction losses, promoting energy-efficient design. Its compact physical dimensions and minimal peak reverse current of 9 milliamperes make it suitable for power management and switching circuits in industrial automation, manufacturing equipment, and electronic assemblies.

Key applications include industrial power supplies, switching regulators, and electronic control systems where high load tolerance and durability are required. The versatile DO-203AB package ensures ease of integration on PCBs with screw mounting for secure mechanical fastening.

This diode supports a maximum continuous forward current of 70A for demanding power applications. Peak reverse repetitive voltage of 600V allows protection against high voltage transients. Screw mount type provides sturdy installation on electronic assemblies.

Operates reliably from -65°C up to high temperatures of 180°C. Maximum forward voltage of 1.35V enhances conduction efficiency. Stud cathode diode configuration ensures optimal current flow direction. Peak surge current capability of 1.3kA tolerates transient loads.

Compact dimensions (20.02 mm L × 22.9 mm H × 17.35 mm W) fit standard assemblies. Minimal peak reverse current of 9mA reduces leakage and power loss. No automotive certifications; ideal for industrial and laboratory electronics.

Vishay is a respected brand known for high-quality discrete semiconductors and power diodes. This model VS-70HF60 is part of the VS-70HF series, widely favored in industrial electronics for switching power rectification tasks.

Explore our Electronics & Electricals category for more semiconductor switching diodes and related components for your next industrial or laboratory project. Vishay VS-70HF60 Switching Diode combines reliability, performance, and ease of use in a compact package suitable for a variety of electronic applications.
