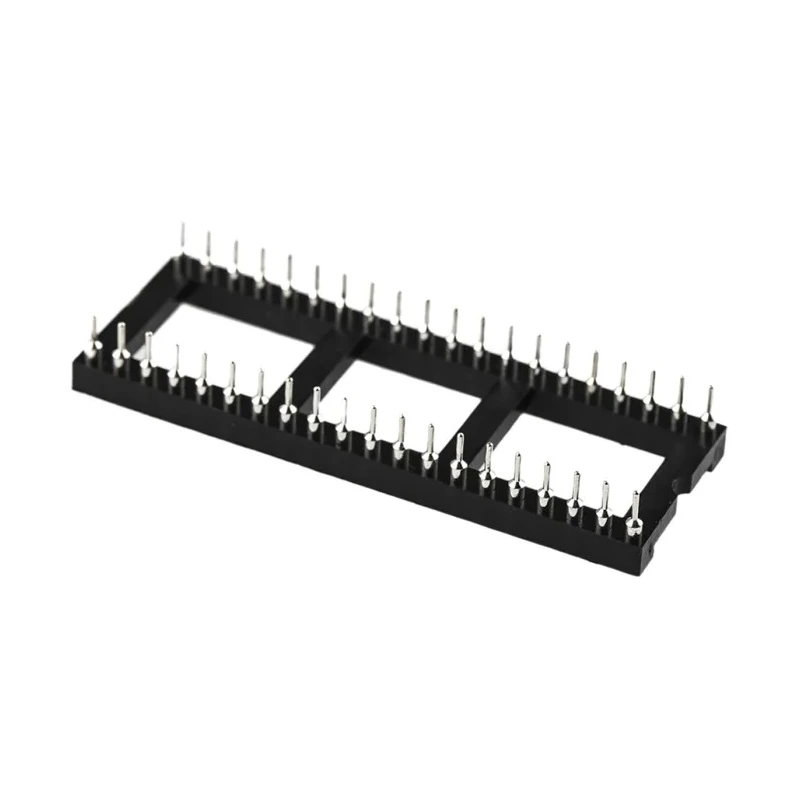

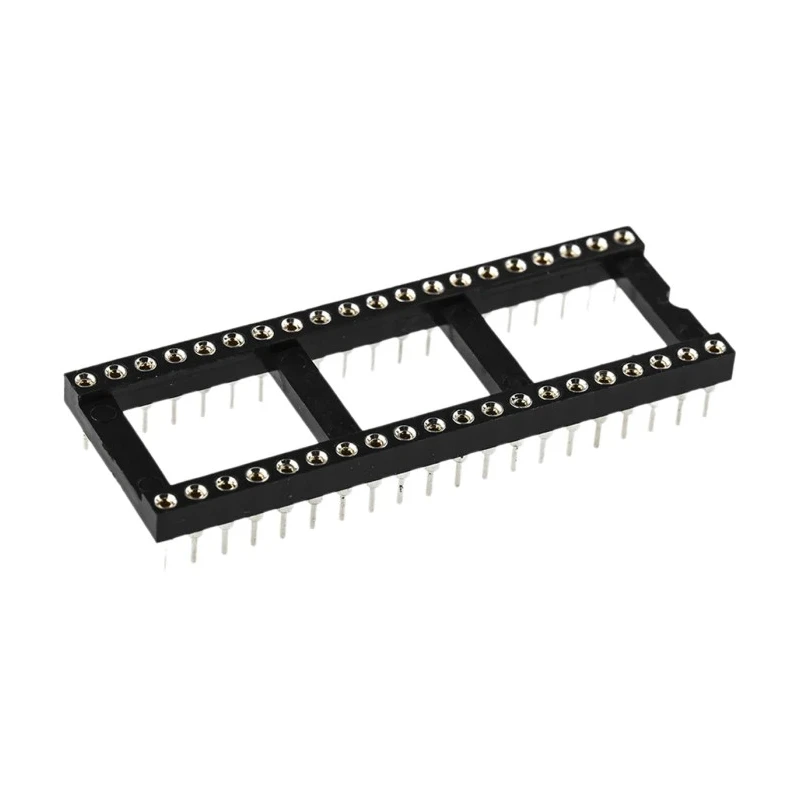

Winslow 2.54 mm Pitch Vertical 40 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30540TRC

Winslow W30540TRC is a high-quality 2.54 mm pitch vertical 40 way through hole turned pin open frame DIL socket designed for secure electrical connections in diverse industrial and electronic applications.

Constructed with a durable Polybutylene Terephthalate housing and beryllium copper alloy contacts plated with tin and a 0.3 µm gold layer over nickel, this socket ensures excellent conductivity and corrosion resistance. The turned pin contact design and solder termination provide reliable mountings on printed circuit boards.

This socket is rated for a maximum continuous current of 5A and can operate at temperatures up to 150°C, with an operating temperature range from -55°C to +125°C. It is engineered to withstand 1000 insertion cycles, making it suitable for prototyping, debugging, and development work where non-permanent connections are needed.

With compact dimensions of 50.72 mm length, 4.6 mm width, 17.66 mm depth, and a row width of 15.24 mm, it supports a pitch of 2.54 mm per contact. The open frame design allows easy access and cooling in electronic assemblies.

This DIL Socket is ideal for applications in electronics manufacturing, laboratory prototyping, and other commercial and industrial setups requiring dependable socket connections. 2.54 mm pitch with 40 vertical contacts.

Through hole mounting with solder termination. Durable Polybutylene Terephthalate housing and beryllium copper alloy contacts. Tin and gold plated contact surfaces for reliability. Operating temperature from -55°C to +125°C and max 150°C.

Rated for 5A current and 1000 insertion cycles. Compact and easy to integrate in PCB designs. Explore more electronic components and sockets in EnvMart’s extensive catalog to find the perfect fit for your industrial and manufacturing needs.
