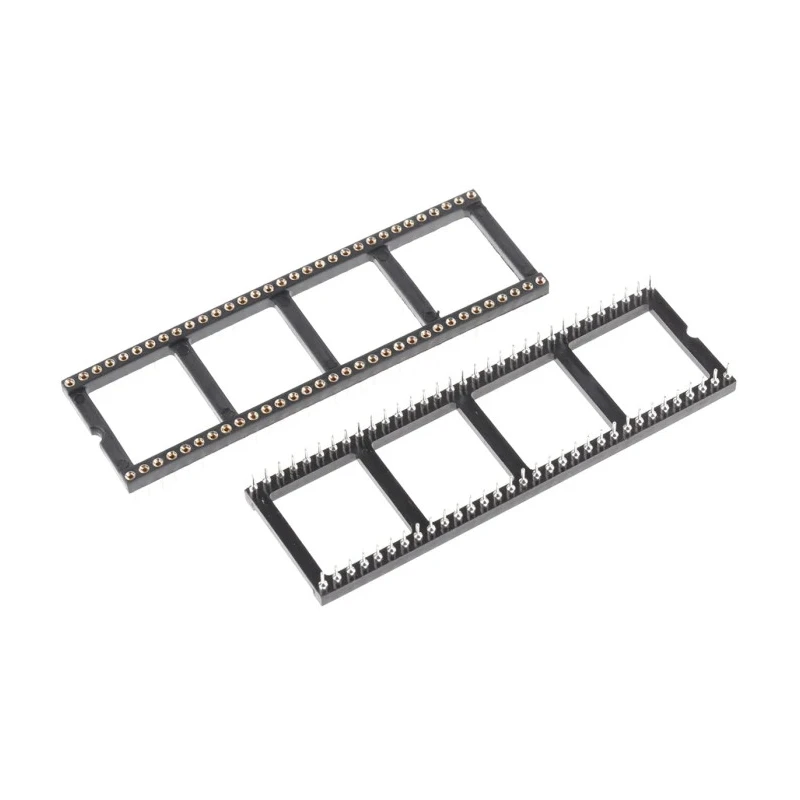

Winslow 2.54 mm Pitch Vertical 64 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30564TRC

Winslow W30564TRC is a high-quality 64 way vertical DIL socket with a 2.54 mm pitch featuring turned pin contacts, designed for through-hole PCB mounting. It incorporates an open frame construction using polybutylene terephthalate (PBT) housing for robustness and excellent mechanical durability.

The contacts are precision-machined from beryllium copper alloy featuring dual plating of gold over nickel (0.3 μm) on the inner contact and tin-plated brass on the outer shell, facilitating reliable electrical connections with minimal signal loss or degradation.

This DIL Socket supports a current rating of 5 A and can operate continuously within a temperature range from -55°C to +125°C, making it suitable for demanding industrial, laboratory, and electronic assembly applications.

Its vertical orientation and solder termination type enable compatibility with through-hole PCB designs, optimizing space and connection integrity. The socket is rated for up to 1000 insertion cycles, ideal for test, measurement, and prototyping scenarios where ICs need to be frequently changed.

The compact mechanical dimensions including length (81.2 mm), depth (25.38 mm), row width (22.86 mm), and width (4.6 mm) make it compatible with standard DIP form factor IC packages.

Manufactured in the United Kingdom, this socket ensures consistent performance in electronic systems and is suitable for integration into industrial controls, instrumentation, telecommunications, computer hardware, and other electronics manufacturing settings.

Features 64 turned pin contacts with 2.54 mm pitch for compatibility with DIP packages. Open frame PBT construction for durability and heat resistance. Gold and tin plating on beryllium copper alloy contacts for conductivity and corrosion resistance.

5 A current rating supports power electronics applications. Vertical solder termination designed for through-hole mounting. Operating temperature range from -55°C to +125°C. Rated for 1000 insertions supporting prototyping and testing.
