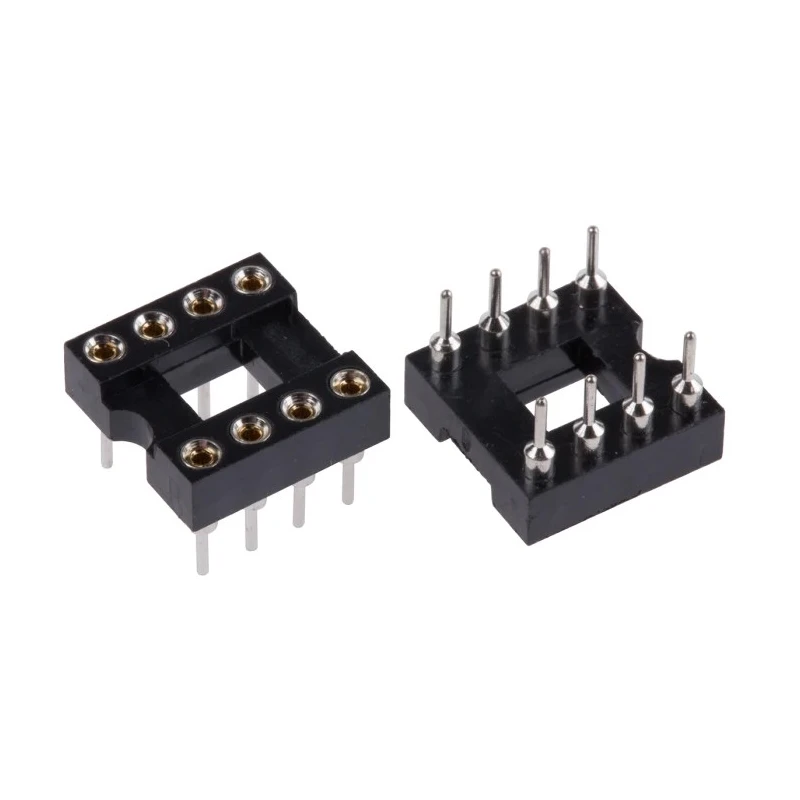

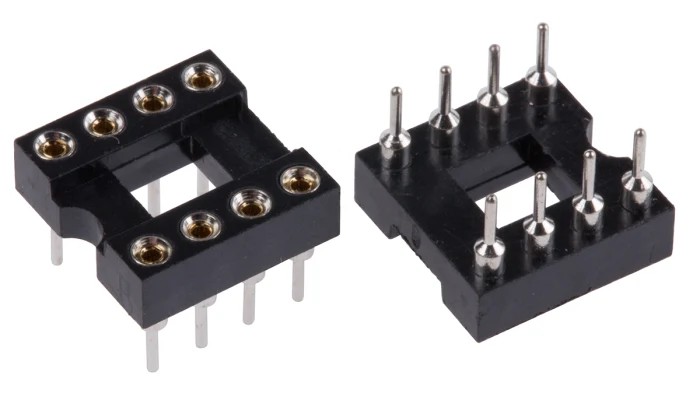

Winslow 2.54 mm Pitch Vertical 8 Way Through Hole Turned Pin Open Frame DIL Socket 5A W30508TRC

Winslow W30508TRC is a high-quality 8 Way Vertical Through Hole Turned Pin Open Frame DIL Socket with a 2.54 mm pitch, rated at 5 amperes and designed for reliable electronic component interfacing.

This socket is engineered with a rugged polybutylene terephthalate housing to offer exceptional insulation and mechanical stability, suitable for industrial and laboratory electronic applications.

The contact pins are made from a beryllium copper alloy with gold plating over nickel (0.3 μm) on the inner contact and tin-plated brass outer shell, which guarantees excellent electrical conductivity, corrosion resistance, and durability for up to 1000 insertion cycles.

Its vertical orientation and open frame design enable easy socketing and removal of DIP components, making it ideal for development, debugging, prototyping, and small-scale production use in electronics manufacturing, testing, and repair.

This DIL socket comprises 8 pins arranged with a 2.54 mm pitch for standard DIP configurations. The through-hole mount and solder termination provide secure PCB attachment suited for robust assembly environments.

Thermal specifications include a maximum operating temperature of 150°C and a temperature range from -55°C to +125°C, ensuring stable performance under varying industrial conditions.

Physical dimensions of 10.08 mm length by 4.6 mm width and a 10.14 mm depth make it compact for PCB designs requiring efficient space utilization. The open frame structure aids heat dissipation and allows easy inspection and maintenance of connections.

The socket's rated current capacity of 5 amperes makes it suitable for typical low-power and signal-level electronics circuits. Designed for industrial, laboratory, electronic manufacturing, and development environments that demand reliable IC socketing solutions.

This product is part of a comprehensive range of DIP sockets and adapters by Winslow, catering to electronic engineers and technicians requiring versatile and dependable connection components.
