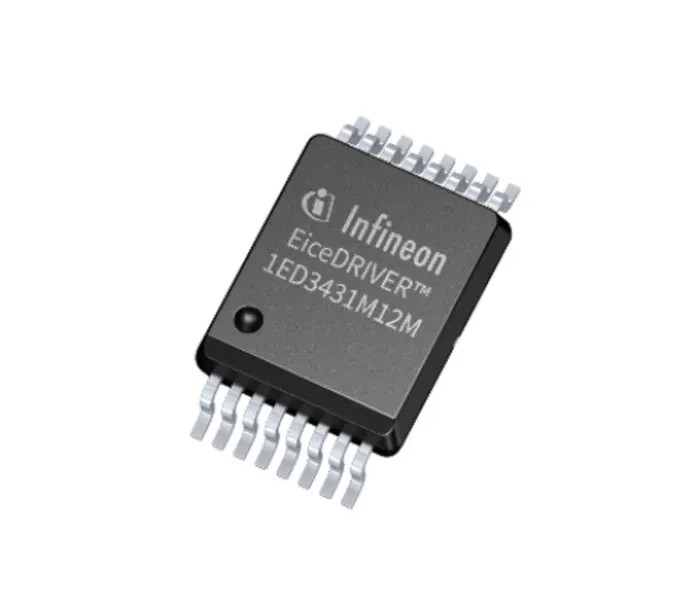

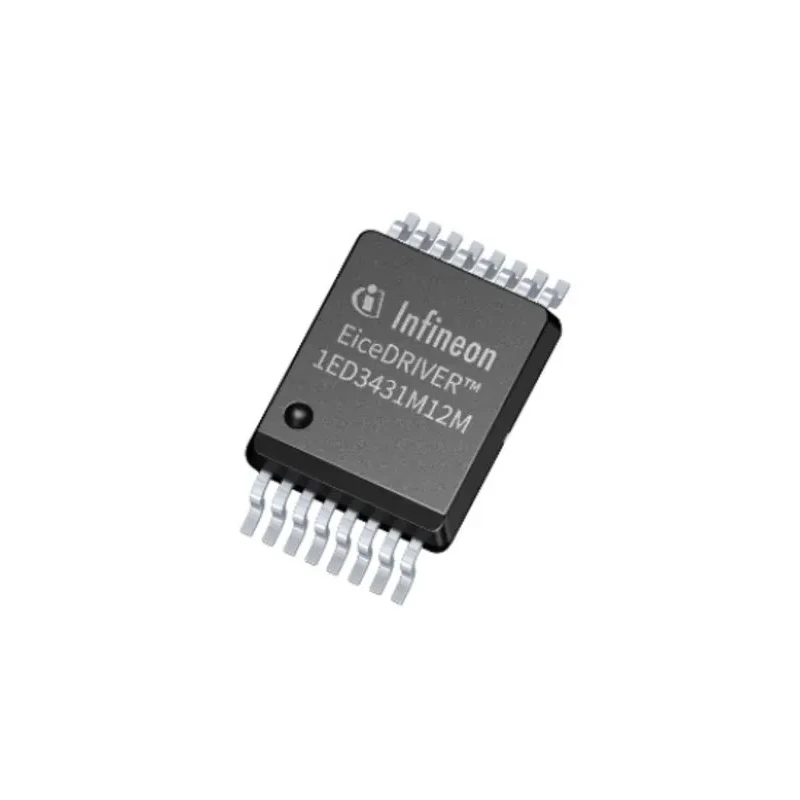

Infineon Isolated Gate Driver 2 Channel, 3 A Output Current, 16-Pin DSO Package, 6.5V, 1ED3431MC12MXUMA1

Free Delivery in India | Lowest Global Shipping Charges

Infineon Isolated Gate Driver 2 Channel, 3 A Output Current, 16-Pin DSO Package, 6.5V, 1ED3431MC12MXUMA1

Name: Infineon Isolated Gate Driver 2 Channel, 3 A Output Current, 16-Pin DSO Package, 6.5V, 1ED3431MC12MXUMA1
Brand: Infineon
SKU: 171827
Price: 20.22 USD
Availability: InStock



Category Gate Drivers Brand Infineon Condition New

Specifications

Country of Origin	India
Brand	Infineon
Height	2.65mm
Length	7.5mm
Model	1ED3431MC12MXUMA1
Width	6.4mm
Mount Type	Surface
Series	1ED3431MC12M
Output Current	3A
Maximum Operating Temperature	125°C
Package Type	DSO
Minimum Operating Temperature	-40°C
Rise Time	30ns
Pin Count	16
Minimum Supply Voltage	6.5V
Number of Drivers	2
Fall Time	30ns
Driver Type	Isolated Gate Driver

Key Features

This gate driver features isolated drive suitable for IGBTs, MOSFETs, and SiC MOSFETs.
It supports a supply voltage range of 6.5 V with a maximum temperature rating up to 125°C.
The device offers an adjustable DESAT and soft-off function for enhanced configurability.
It provides separate source and sink outputs with an active Miller clamp for hard switching applications.
Compact surface mount package measuring 7.5mm length, 6.4mm width, and 2.65mm height.
Designed to operate reliably at temperatures from -40°C to 125°C.
Rise and fall times of 30 nanoseconds ensure fast switching performance.
Ideal for industrial and power management applications requiring efficient gate drive control.

Product Description

Infineon 1ED3431MC12MXUMA1 is a highly configurable isolated gate driver providing two channels with 3 A sourcing and sinking peak output current. Packaged in a 16-pin DSO surface mount package, this driver supports voltages up to 6.5 V and operates reliably in a wide temperature range from -40°C to 125°C, making it suitable for robust industrial environments.

The device features adjustable DESAT filter and soft-off current levels which can be configured via external resistors from the input side, enabling precise protection and shutdown functionality. With separate source and sink outputs and an active Miller clamp driver, it supports hard switching applications while reducing switching losses and preventing device damage.

Compact and efficient, the Infineon 1ED3431MC12MXUMA1 is optimized for use with IGBTs, MOSFETs, and SiC MOSFETs in power management IC applications across industrial, manufacturing, and automotive sectors.

This gate driver offers isolated drive with adjustable DESAT and soft-off features for enhanced control. It delivers ±3 A typical peak output current for robust driving of power transistors. Surface mount DSO package ensures easy PCB integration with a footprint of 7.5 x 6.4 x 2.65 mm.

Fast switching capabilities with 30 ns rise and fall times. Broad operating temperature range from -40°C to 125°C to suit harsh environments. Designed to work with IGBTs, MOSFETs, and SiC MOSFETs in industrial power control applications.
